| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | PEV-1/4-B-OD |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 120 pcs per week |
| Type: | PEV-1/4-B-OD | Part No: | 175250 |
|---|---|---|---|
| Brand: | FESTO | Approval: | CCC |
| Note On Materials: | RoHS-compliant | Measured Variable: | Relative Pressure |
| High Light: | Pressure Switch PEV-1/4-B-OD,3Hz Pressure Switch,175250 Pneumatic System Components |
||
About product

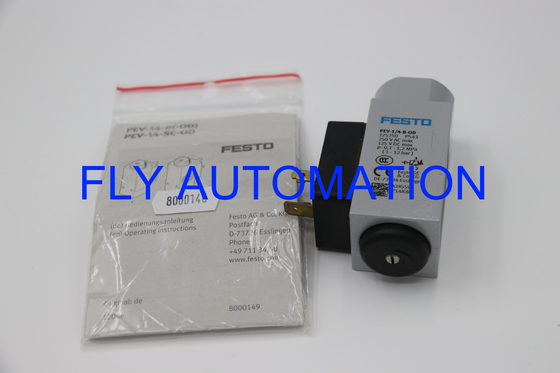

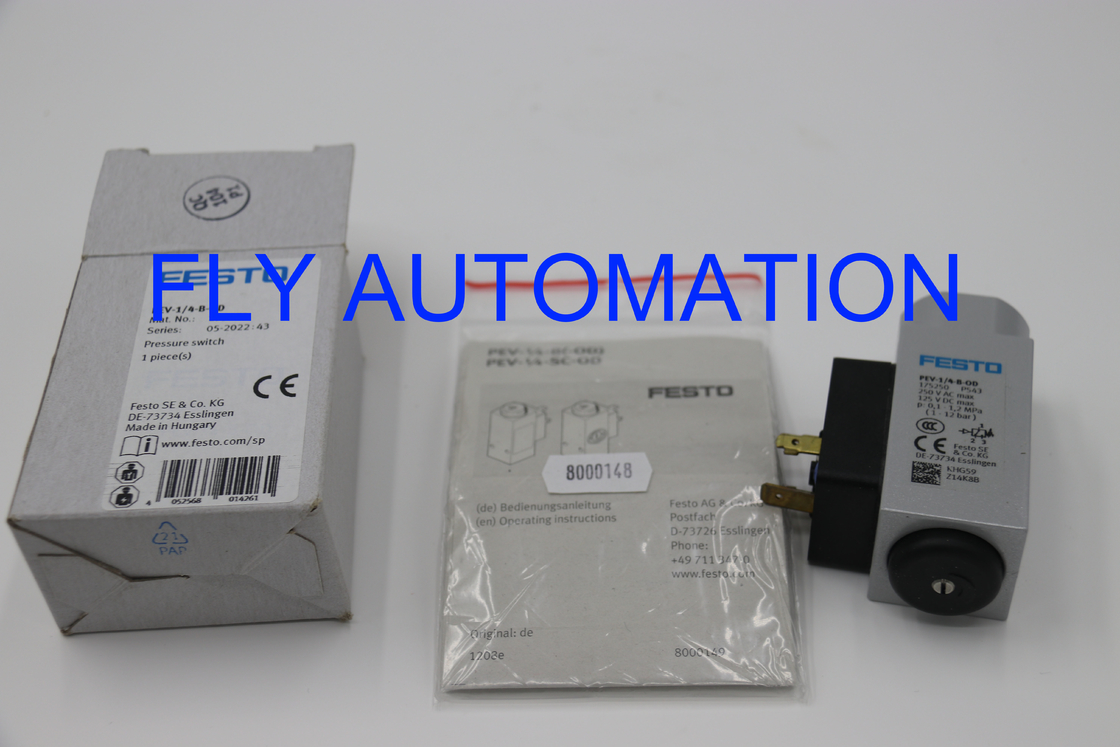

1.Mechanical pressure and vacuum switch with adjustable switching point.
2.Pneumatic-electric converter.
3.Hysteresis regulation function.
4.With switching status display.
5.Derivative type with scale is used to regulate pressure.
6.Multiple installation methods are optional.
Product Technical Data
| Conforms to standard | EN 60947-5-1 |
| Symbol | 00991471 |
| Approval | CCC |
| CE mark (see declaration of conformity) | To EU Low Voltage Directive |
| CE marking (see declaration of conformity) | To UK regulations for electrical equipment |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Measurement method | Pneumatic/electric pressure transducer |
| Operating pressure | 0.1 MPa ... 1.2 MPa |
| Operating pressure | 1 bar ... 12 bar |
| Switching element function | Changeover switch |
| Max. switching frequency | 3 Hz |
| Max. switching output voltage AC | 250 V |
| Max. switching output voltage DC | 125 V |
| Max. output current | 5000 mA |
| Min. load current | 1 mA at 24 V 10 mA at 10 V 100 mA at 5 V |
| Utilisation category - inductive load | AC-14 DC-13 |
| Utilisation category - resistive load | AC-12 DC-12 |
| Electrical connection | Type A Plugs To DIN 43650 Square design |
| Type of mounting | With through-hole |
| Mounting position | optional |
| Pneumatic connection | G1/4 |
| Product weight | 194 g |
| Material housing | Die-cast aluminium |
| Material switch contact | Silver |
| Switching status indication | Yellow LED |
| Setting range threshold value | 1 bar ... 12 bar |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
