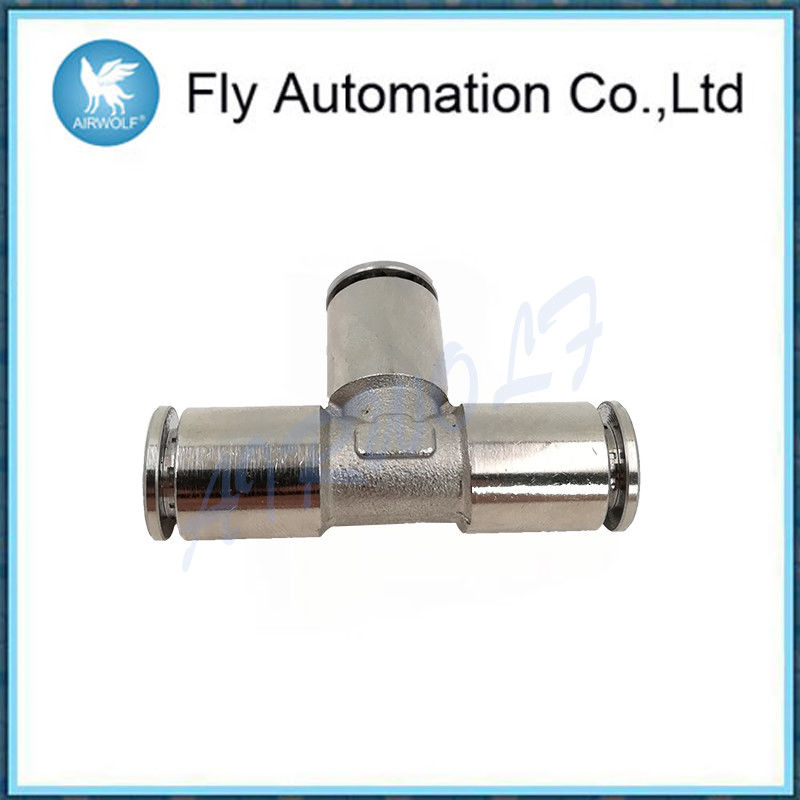

Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors

Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors

  • Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors
  • Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors
  • Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors
Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors
Product Details:
Place of Origin: CHINA
Brand Name: CAMOZZI
Certification: CE
Model Number: 6540 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-10 working days after payment
Payment Terms: T/T , Western Union, PayPal
Supply Ability: 1000 pcs /day
Contact Now
Detailed Product Description
Model: 6540 Series Port Size: 6 Mm
Color: Silvery Temperature: -20°C ~ 80°C
Material: Nickel-plated Brass
High Light:

flexible tube fittings

,

brass tube fittings

Silvery Connectors CAMOZZI 6540 Series Tee Connector Nickel-plated Brass NBR O-Ring



Tube external diameters: 3, 4, 5, 6, 8, 10, 12, 14, 16 mm



GENERAL DATA
Diameters ø 4 - 5 -6 - 8 - 10 - 12 - 14 - 16 mm
Micro models: ø 3 - 4 - 6 - 8 - 10 mm
Threads GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP); M5-M6 and other metric threads available on request; NPT on request
Micro models: M3 - M5 - M7 - G1/8 - G1/4
Pressure standard models: min -0,9 bar - max 16 bar (see tubing)
models with self-retaining device: 0 ÷ 16 bar
Tube to connect Rilsan, PA 6-11-12, Polyethylene, PU, Hytrel Polyester
Fluid compressed air (for other types of fluid, contact our engineers
Temperature -20°C ÷ 80°C (see the technical data of tubing used)
Micro models: -10°C ÷ 80°C (see the technical data of tubing used)
Materials standard models: body and collet in nickel-plated brass, O-Ring in NBR,
thread seals in PTFE - NBR - PA
models with self-retaining device: body and collet in nickel-plated brass,
poppet valve in brass, spring in stainless steel, O-Ring in NBR,
thread seals in PTFE





Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors 0

DIMENSIONS
Mod. A C F L M SW Weight (g)
6540 4 4 3.5 9 35 17.5 8 14
6540 5 5 5.5 10 41 20.5 9 21
6540 6 6 4 12.7 40 20 9 24
6540 8 8 5 14.2 45 22.5 11 32
6540 10 10 5.8 16.5 52 26 13 43
6540 12 12 7.3 19.5 53 26.5 15 60
6540 14 14 8.3 21.5 57 28.5 17 75

Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors 1Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors 2Nickel Plated Brass Pneumatic Tube Fittings Nbr O Ring Silvery Tee Connectors 3
