Place of Origin: | China |
Brand Name: | FLY,AIRWOLF |
Certification: | CE |
Model Number: | C113825 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | price negotiable |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T in advance,Western Union,Paypal,Credit card |
Supply Ability: | 2000 pcs |
Valve Port Size: | 1 1/2" | Material: | NBR/FKM |
---|---|---|---|
Model: | C113825 | Lifespan: | 1 Million Cycles |
Fitted Valve Code: | G353A045 | ||
High Light: | FKM Membrane,NBR Membrane,C113825 Membrane |
Ordering Code: C113825,

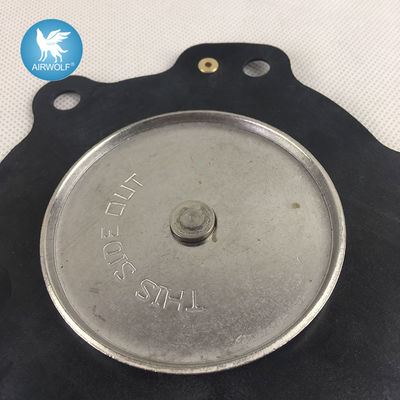

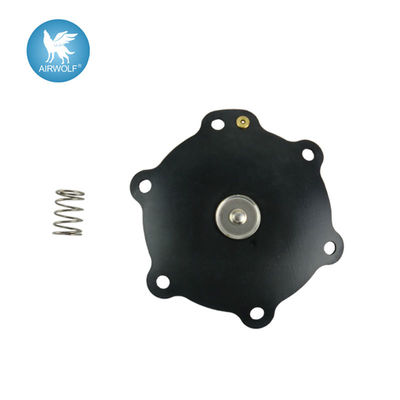

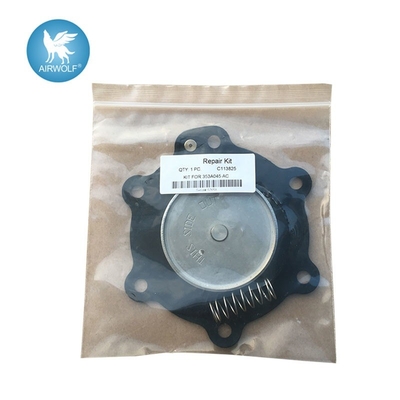

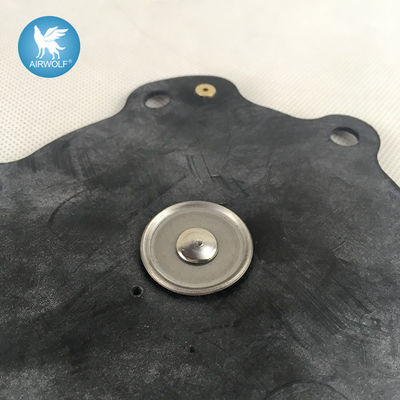

Repair kits for G353A045
The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
Diaphragm Material: Buna(NBR)
Cover: SS304
Diaphragm kits for: pulse valves: SCG353A047,G353A065,G353A046,G353A045
Working pressure: 0.05-1.0 Mpa
Working Temperature: -20ºC- +82 ºC
Lifespan:1 million cycles
FEATURES
• The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
• The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
• The design with integral compression fittings will facilitate installation because there is no need for threaded piping
• Built-in silencers guarantee noise free operation and avoid foreign particles entering the valve
• The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explo- sive atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be mounted on the same basic valve (see page 45 till 52)
Ordering Code:
Ordering Code | Fitted Valve Code | Valve port size | Material |
C113443 | G35A041, G353042 SCG353A043, SCG353A044 | 3/4'' , 1'' | TPE / NBR |
C113444 | |||
C113825 | G353A045 | 1 1/2'' | NBR / BUNA |
C113826 | G353A046 | 1 1/2'' | NBR / BUNA |
C113827 | SCG353A047 | 1 1/2'' | NBR / BUNA |
C113685 | SCG353A050, SCG353A051, G353A048, G353A049 | 2'' , 2 1/2'' | NBR / BUNA |
C113686 | NBR / BUNA | ||
C113928 | SCEX353.060 | 3'' | NBR / BUNA |
FAQ
1. When your company establish?
YIKANG AUTOMATION Was established in 2010, we have been working in agrochemical field for about 26 years, we have a professional production of process, committed to providing customers with the most satisfactory service.
