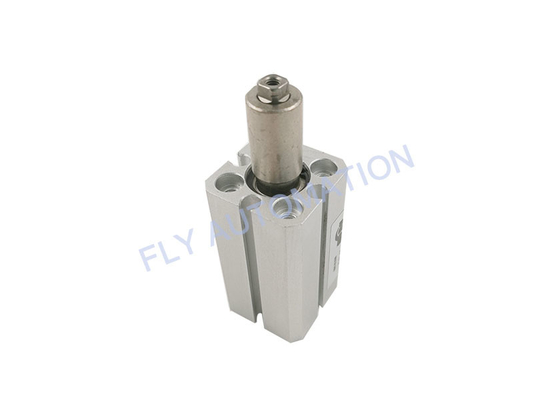

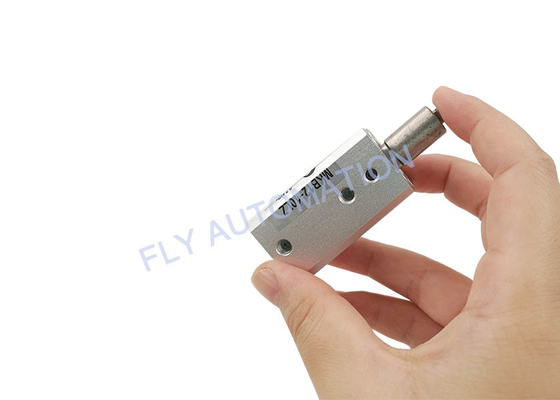

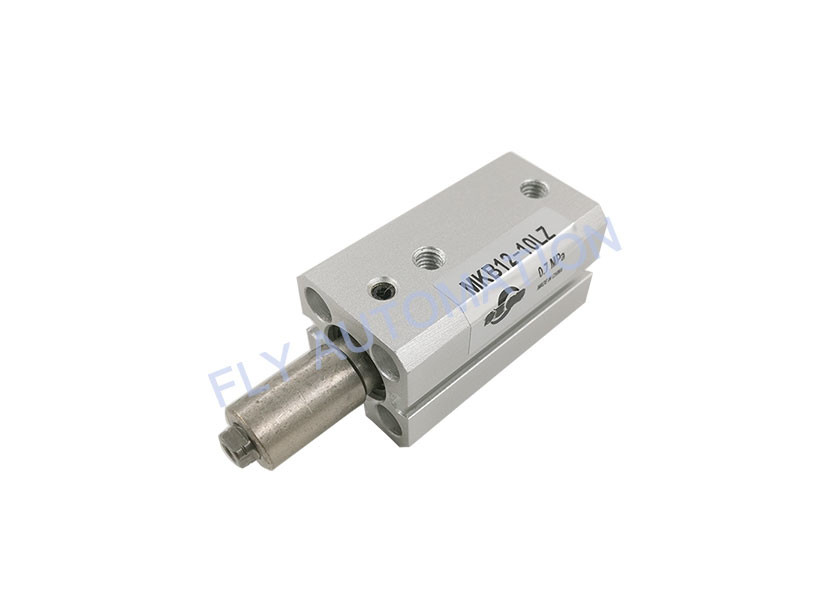

MKB12-10LZ Compact Pneumatic Cylinder Double Acting SMC

Product Details:

Place of Origin:	CHINA
Brand Name:	FLY
Certification:	CE
Model Number:	MKB12-10LZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation

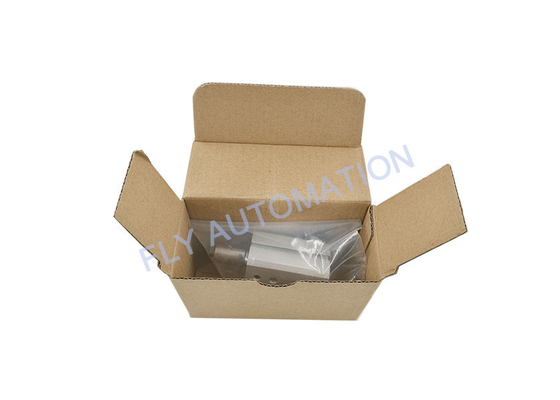

Packaging Details:	Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time:	1-7 work days
Payment Terms:	Western Union, T/T, L/C, Paypal, Credit card
Supply Ability:	1000 pieces per 10 working days

Contact Now

Detailed Product Description

Action:	Double Acting	Fluid:	Air
Proof Pressure:	1.5MPA	Lubrication:	Not Required
Cushion:	Rubber Bumper	Piston Speed:	50 To 200 Mm/s
High Light:	MKB12-10LZ Compact Pneumatic Cylinder , Compact Pneumatic Cylinder SMC

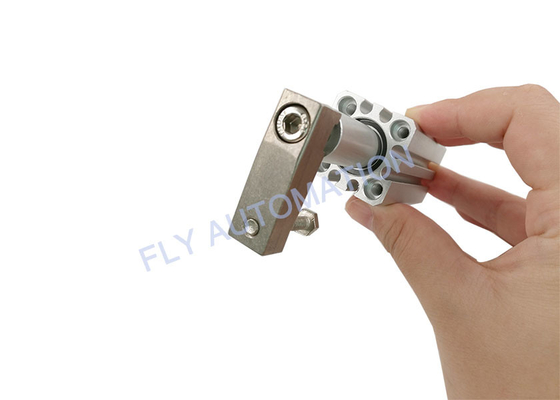

MKB12-10LZ Rotary Clamp Cylinder Double acting SMC Pneumatic Air Cylinder

Specifications
Bore size (mm)	12	16	20	25	32	40	50	63
Action	Double acting
Rotary angle	90° ±10°
Rotary direction	Clockwise, Counterclockwise
Rotary stroke (mm)	7.5		9.5		15		19
Clamp stroke (mm)	10, 20, 30				10, 20, 30, 50
Theoretical clamp force (N)	40	75	100	185	300	525	825	1400
Fluid	Air
Proof pressure	1.5 MPa
Operating pressure range	0.1 to 1 MPa							0.1 to 0.6 MPa
Ambient and fluid temperature	Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing)
Lubrication	Non-lube
Piping port size	M5 x 0.8				Rc1/8, NPT1/8 G1/8		Rc1/4, NPT1/4 G1/4
Mounting	Through-hole/Both ends tapped common, Head flange
Cushion	Rubber bumper
Stroke length tolerance	+0.6 –0.4
Piston speed Note 5)	50 to 200 mm/s
Non-rotating accuracy (Clamp part)	±1.4°	±1.2°			±0.9°		±0.7°

Theoretical Output
Bore size (mm)	Rod size (mm)	Operating direction	Piston area (cm2)	Operating pressure (MPa)
Bore size (mm)	Rod size (mm)	Operating direction	Piston area (cm2)	0.3	0.5	0.7	1.0
12	6	R	0.8	24	40	56	80
12	6	H	1.1	33	55	77	110
16	8	R	1.5	45	75	105	150
16	8	H	2	60	100	140	200
20	12	R	2	60.8	100	139	200
20	12	H	3.1	90.2	149	208	298
25	12	R	3.8	112	185	258	370
25	12	H	4.9	149	245	341	490
32	16	R	6	182	300	418	600
32	16	H	8	243	400	557	800
40	16	R	10.6	319	525	731	1050
40	16	H	12.6	380	625	870	1250
50	20	R	16.5	502	825	1149	1648
50	20	H	19.6	596	980	1365	1961
63	20	R	28	851	1400	1950	2801
63	20	H	31.2	948	1560	2172	3121

MKB12-10LZ Compact Pneumatic Cylinder Double Acting SMC
