| Place of Origin: | China |
| Brand Name: | FESTO |

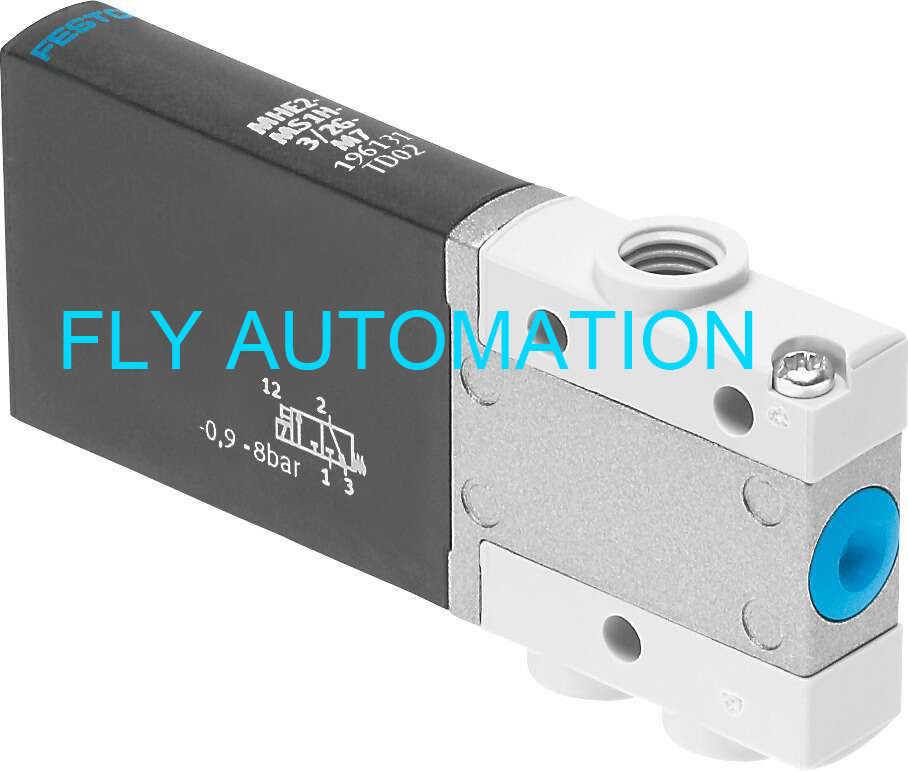

| Model Number: | MHE2-M1H-3/2G-M7 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-80 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Order No: | 196130 | Model: | MHE2-M1H-3/2G-M7 |
|---|---|---|---|
| Brand: | FESTO | Weight: | 60 G |
| Valve Function: | 3/2-way, Closed, Monostable | Type Of Actuation: | Electric |
| High Light: | Closed Pneumatic Solenoid Valve,MHE2-M1H-3/2G-M7 Festo Solenoid Valve,M7 Air Operated Solenoid Valve |
||
About product
1.Directly actuated poppet valve.
2.Fast-switching valve: switching times down to 2 ms.
3.Direct mounting, individual sub-base, manifold assembly.
4.Speed, dynamic response and precision are more sought after than ever before in modern automation.
5. The solution lies in pneumatic components. The result: shorter cycle times in return for comparatively low investment costs for the components. 6.Maximum process reliability, sturdiness and service life are guaranteed.
Technical Data
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 10 mm |
| Standard nominal flow rate | 100 l/min |
| pneumatic working port | M7 |
| Operating voltage | 24V DC |
| Design | Pressure-relieved poppet valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| Approval | c UL us - Recognized (OL) |
| Nominal size | 2 mm |
| Grid dimension | 14 mm |
| Note on grid dimension | Minimum distance between the valves is 4 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Non-detenting |
| Type of piloting | Direct |
| Flow direction | Reversible with restrictions |

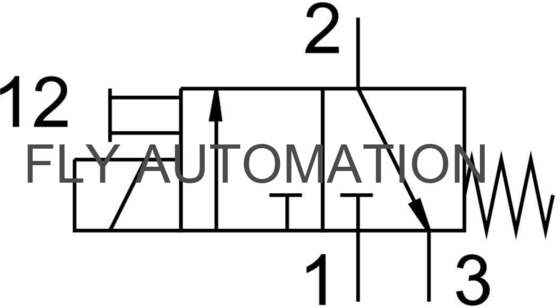

| Symbol | 00991308 |
| lap | Underlap |
| Max. switching frequency | 130 Hz |
| Switching time off | 3.5 ms |
| Switching time on | 7 ms |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: 2.88 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-60°C |
| Ambient temperature | -5°C-60°C |
| Product weight | 60 g |
| Electrical connection | 2-pin Plugs |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | M7 |
| Pneumatic connection, port 2 | M7 |
| Pneumatic connection, port 3 | M7 |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Die-cast zinc, coated |
| Material screws | Galvanised steel |
Other size as follow
| Type | Order no | Price |
| MHE2-MS1H-3/2O-M7 | 196151 | USD60-80 |
| MHE2-MS1H-3/2G-M7 | 196131 | USD60-80 |
| MHE2-MS1H-3/2O-QS-4 | 196155 | USD60-80 |
| MHE2-MS1H-3/2G-QS-4 | 196135 | USD60-80 |
| MHE2-M1H-3/2O-M7 | 196150 | USD60-80 |
| MHE2-M1H-3/2G-M7 | 196130 | USD60-80 |
| MHE2-M1H-3/2O-QS-4 | 196154 | USD60-80 |
| MHE2-M1H-3/2G-QS-4 | 196134 | USD60-80 |
| MHE2-MS1H-3/2O-M7-K | 196153 | USD60-80 |
| MHE2-MS1H-3/2G-M7-K | 196133 | USD60-80 |
| MHE2-MS1H-3/2O-QS-4-K | 196157 | USD60-80 |
| MHE2-MS1H-3/2G-QS-4-K | 196137 | USD60-80 |
| MHE2-M1H-3/2O-M7-K | 196152 | USD60-80 |
| MHE2-M1H-3/2G-M7-K | 196132 | USD60-80 |
| MHE2-M1H-3/2O-QS-4-K | 196156 | USD60-80 |
| MHE2-M1H-3/2G-QS-4-K | 196136 | USD60-80 |
There are so many products, welcome to enquire!
