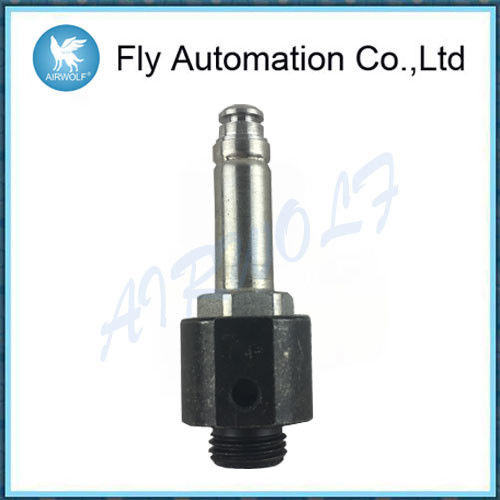

Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP

Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP

  • Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP
  • Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP
  • Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP
  • Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP
  • Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP
Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP
Product Details:
Place of Origin: CHINA
Brand Name: Mecair
Certification: CE
Model Number: PV
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1-3 work days after payment
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: PV Color: Black
Duty Cycle:: 100% Insulation Class:: H
Material: Stainless Steel Weight: 0.1kg
High Light:

pulse solenoid valve

,

pulse jet valve

Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves PILOT GROUP



Mecair series PV pilot group used in Mecair series pilot valves and pilot valve
enclosures.



The system is designed for use with air . Thermoset material will help the coil more stable and safely.





Specifications:



Product NO.  KIT PV
Product type MECAIR SB3
Material Stainless steel
Color Black
Brand Mecair
Connection Type DIN43650A
Applicability Pulse valves




Installation:
Slide solenoid over ferrule tube. Ensure terminals are on top. For QT and QF type solenoids ensure nylon washer is in place. Slide clip onto pilot iron top.
Ensure voltage supplied to solenoid is within -10% and +15% of the solenoid rated voltage.


Construction
Encapsulation: PA-6
C-frame: Mild steel zinc passivated
Bobbin: PA-6
Insulation class: B/130°C
Rating: Non-continuous use only
Clip: Mild steel (mechanically plated)



Note :

Voltage tolerance: ± 10%
Temperature range: –10°C ÷ +80°C
Duty cycle: 100%



Standard voltages: 24 - 110 - 230 VAC
12 - 24 VDC
Other voltages on request



Pictures details:

Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP 0Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP 1Mecair Armature Plunger PV Pilot Solenoid Valves for Goyen Pulse Valves Black PILOT GROUP 2







Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.


Competitive Advantage

Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


Warranty


All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
