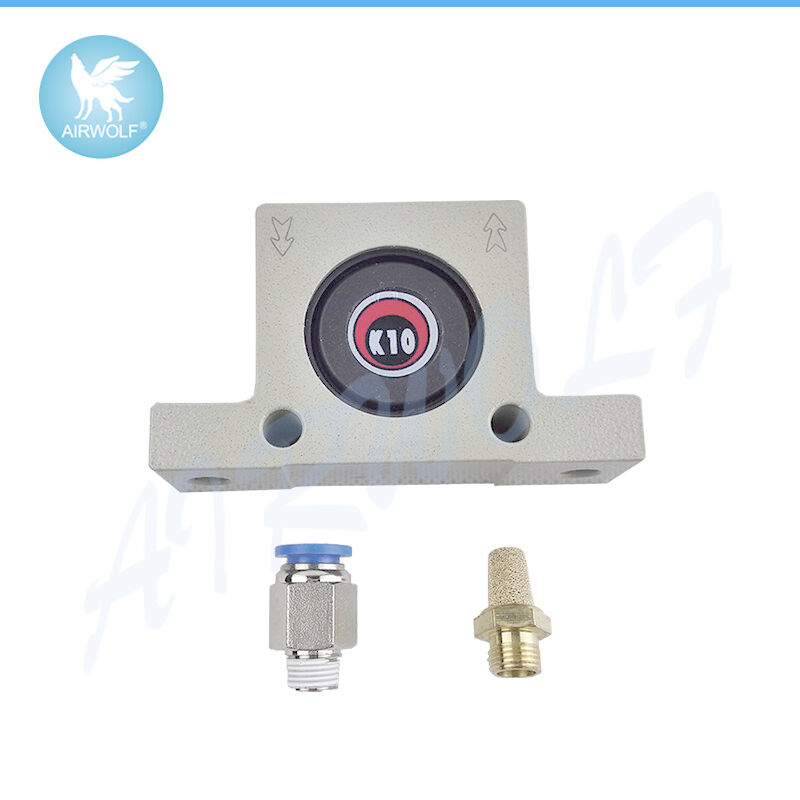

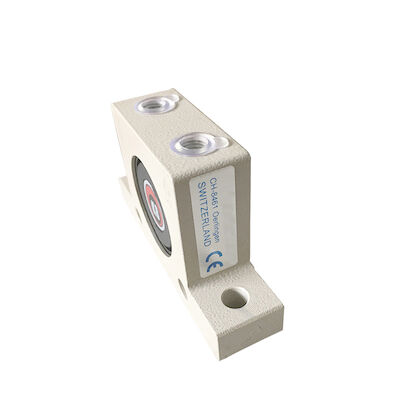

1/4 Inch Findeva K series K-8 K10 K16 High Frequency Pneumatic Ball Vibrator
K series pneumatic ball viabrator is small in overal size, the vibration frequency can be regulated by adjusting the air flow, the main useful for the follwoing:
- Assisting the flow of material from chute and hoppers
- Preventing bottles and similar objects jammed or blocked, & caused blocking conveyor systems
- Compaction of material in containers or moulds
- Seperation of various sizes of material on screens
MODEL K
Aluminium Body
Rotary Vibrator
2 Sets of mounting holes
Frequency / Force adjustable by air pressure
Suitable for temperature up to 100°C
Noise level 75—95 dBA with silencer fitted
Force 130 N to 4050 N
Properties
• Powerful
• Rated frequency 7,300- 35,000rmp
• Centrifugal force 130-4'050 N
• Continuously variable
• Can be used up to 100 °C
• HT version up to 150 °C
Applications:
Pneumatic turbine vibrator used widely in feed material conveyor,vibration screening,vibrating hopper,packaging filling,foundry sand mold vibration etc
Specifications:
Model | Vibrations 1000 rpm 2bar 6bar |
Centrifugal force N 2bar 6bar |
Air consumption I/min 2bar 6bar |
|||
K-8 | 25.5 | 35 | 130 | 360 | 83 | 195 |
K-10 | 22.5 | 34 | 250 | 710 | 92 | 200 |
K-13 | 15 | 22.5 | 320 | 870 | 94 | 225 |
K-16 | 13 | 19.5 | 450 | 1100 | 122 | 280 |
K-20 | 10.5 | 16.5 | 720 | 1720 | 130 | 340 |
K-25 | 9.2 | 14 | 930 | 2050 | 160 | 425 |
K-30 | 7.8 | 12.5 | 1510 | 3210 | 215 | 570 |
K-36 | 7.3 | 10 | 2060 | 4050 | 260 | 675 |

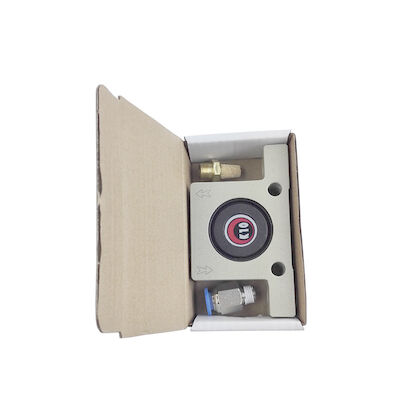

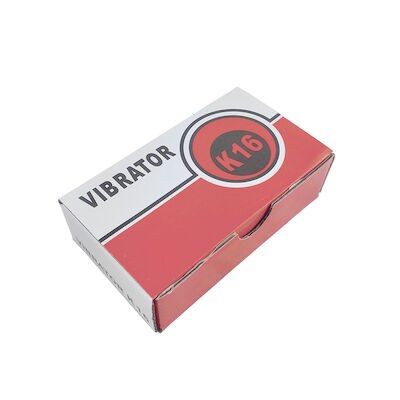

Packing:
Dimension:
C | A | Width | C | D | E | F | G | H | Weight |
BSP | G | ||||||||
K-8 | 50 | 20 | 86 | 68 | 12 | 7 | 40 | 1/4" | 130 |
K-10 | 50 | 20 | 86 | 68 | 12 | 7 | 40 | 1/4" | 130 |
K-13 | 65 | 24 | 113 | 90 | 16 | 9 | 50 | 1/4" | 260 |
K-16 | 65 | 27 | 113 | 90 | 16 | 9 | 50 | 1/4" | 300 |
K-20 | 80 | 33 | 128 | 104 | 16 | 9 | 60 | 1/4" | 530 |
K-25 | 80 | 38 | 128 | 104 | 16 | 9 | 60 | 1/4" | 630 |
K-30 | 100 | 44 | 160 | 130 | 20 | 11 | 80 | 3/8" | 1130 |
K-36 | 100 | 50 | 160 | 130 | 20 | 11 | 80 | 3/8" | 1340 |
