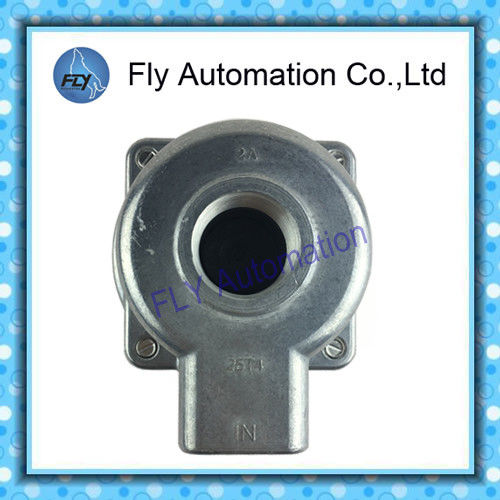

Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901

Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901

  • Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901
  • Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901
  • Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901
  • Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901
  • Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901
Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901
Product Details:
Place of Origin: CHINA
Brand Name: Goyen
Certification: CE, ISO9001
Model Number: CAC25T4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model:: CAC25T4 Body Material: Aluminium Alloy
Seal Material: Shockwave Protection Class: IP65 With Cable Plug
High Light:

pulse solenoid valve

,

pulse jet valve

Goyen Series 4 CAC25T4 Diaphragm repair kit K2546 AG8113901 1 inch pulse jet valve



DESCRIPTION
High-performance diaphragm valve with threaded ports. Equipped with ‘Shockwave’ springless diaphragm. The 4 series valves are available as remote pilot valves and may be converted to an integral pilot using either the RCA3DM or RCA3PV screw-in pilots. Outlet is at 90° to inlet.



CONSTRUCTION
Body: Aluminium (diecast)
Screws: 304 Stainless steel
Diaphragm: Proprietary highperformance engineering thermoplastic Elastomer or Viton



OPERATION
Recommended on-time range: 50 to 500 ms
Recommended time between
pulses: 1 minute or greater



SUITABLE FOR
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.



High purity Aluminum Alloy casting body, the top of NBR diaphragm, make the diaphragm has high tensile strength, ageing resistance and low wear, the electromagnetic pulse valve injection is longer than that of 1 million or three to five years with no damage.
All high-quality imported finished diaphragm, diaphragm assembly in the manufacturing process all checks, qualified and then into the assembly line. Each finished valve is tested by ventilation.

Electromagnetic pulse valve coil is higher than the national standard grade insulation injection in the protection class is IP65 full filling, full copper enameled wire, coil number higher than the national standard, ensure the electromagnetic pulse valve 6 million is energized is not damaged, the electromagnetic coil can rotate 360 DEG in the pulse valve, the junction box can rotate 90 degrees to 4 x can be installed to prevent exposure in the open when rain enters, greatly facilitate the installation of different angles.



APPROVALS
The RCAC25T4 meets the requirements of the European Low Voltage Directive 2006/95/EC, when fitted with the RCA3PV pilot.

Please Note: We recommend using Schedule 40 pipe. Thickness OD is as shown below.



Dimension

Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901 0



Product show

Goyen Series 4 Pulse Jet Valve CAC25T4 DN25 Diaphragm repair kit K2546 AG8113901 1



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.


Competitive Advantage

Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


Warranty


All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
