Goyen Pulse Jet Valves 48 Ways Pulse Control Instrument AC110V PLC-48

Goyen Pulse Jet Valves 48 Ways Pulse Control Instrument AC110V PLC-48

  • Goyen Pulse Jet Valves 48 Ways Pulse Control Instrument AC110V  PLC-48
  • Goyen Pulse Jet Valves 48 Ways Pulse Control Instrument AC110V  PLC-48
  • Goyen Pulse Jet Valves 48 Ways Pulse Control Instrument AC110V  PLC-48
Goyen Pulse Jet Valves 48 Ways Pulse Control Instrument AC110V  PLC-48
Product Details:
Place of Origin: China
Brand Name: Goyen
Certification: CE
Model Number: PLC-48
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD35-200 Per Unit , price negotiatable based on large quantity
Packaging Details: Nylon bags , Bubble bags , Cartons , Pallets
Delivery Time: Within 3-15 working days after payment , Customized items negotiatable
Payment Terms: L/C , T/T , Western Union , Aliexpress , Paypal ( Visa , Master card
Supply Ability: 10000 units per month
Contact Now
Detailed Product Description
Rated Input Voltage: AC220V Rated Output Voltage: AC110V
Body Material: Engineering Plastic Weight: 1.8kgs
Temperature Range: -25℃ - +60℃ Size: 248*188*105mm
Output Cycle Interval: 0-250Mins Color: Transparent
High Light:

air pulse valve

,

pulse solenoid valve

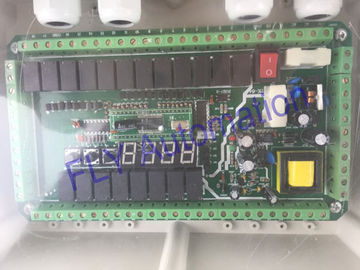

Goyen Pulse Jet Valves 48 Ways Pulse Control Instrument AC110V  PLC-48



PLC-48 Online deashing controller is the main equipment of the bag type dust collector cleaning system . Its output signal directly controls the pulse jet valve . Made by high technology , it is of high quality and has Long service life .

Using 3 soft-touch keyboards to set the working condition . After setting up , auto save , the data will not lose after shut down and power off , Keep the same condition  after restart .  he item adopts intelligent microprocessor circuit design so it is flexible control , stable performance , operation visually and convenient , without any operation to adjust the potentiometer .  It also adopts the latest anti - jamming design , ensure the system stability , more reliable .





Quick Detail :

1) Size :  248*188*105mm

2)  Weight : 1.8kgs

3) Body Material : engineering plastic

4) Output Pulse Width adjustment range : 50ms-2500ms

5) Temperature range : -25℃ - +60℃

6) Rated output current : 1A

7) Working medium : Air

8)  No violent vibration or shock

9) Rated input voltage : AC220V
10)  Rated output voltage :AC110V





Drawings :





Goyen Pulse Jet Valves 48 Ways Pulse Control Instrument AC110V  PLC-48 0

Specification :

1. Output Pulse Width adjustment range : 50ms-2500ms
2. Color : transparent
3. Small Operating force
4. Body Material : engineering plastic

5. Rated input voltage : DC220V
6. Rated output voltage :AC110V
7. Long service life
8. Transposition clearly
9. Easy to install

10. Simple operation





Competitive Advantage:



1. Professional factory and excellent team .

2. High and stable quality .

3. Adequate inventory and quick delivery time .

4. Good package in order to void the problems in transportation .

5. Best service from the whole company .





Attention:



1, Before you endorse the parcel , please do open the package , and check out whether the items are damaged during the shipping process . If so , please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this

2, Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions, please feel free to contact us.







Warranty :



The company supplies the free maintenance if any quality problem within 6 months since the date of the ex-factory , except the following conditions: strong corrosive gases , conductive dust , violent vibration or shock .
