| Place of Origin: | China |
| Brand Name: | FESTO |

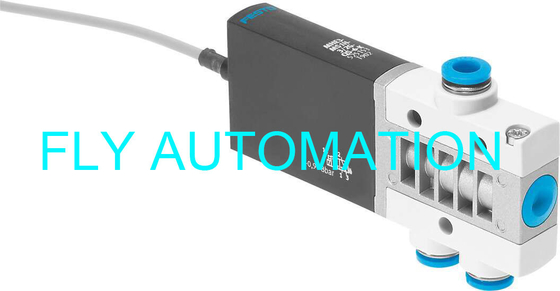

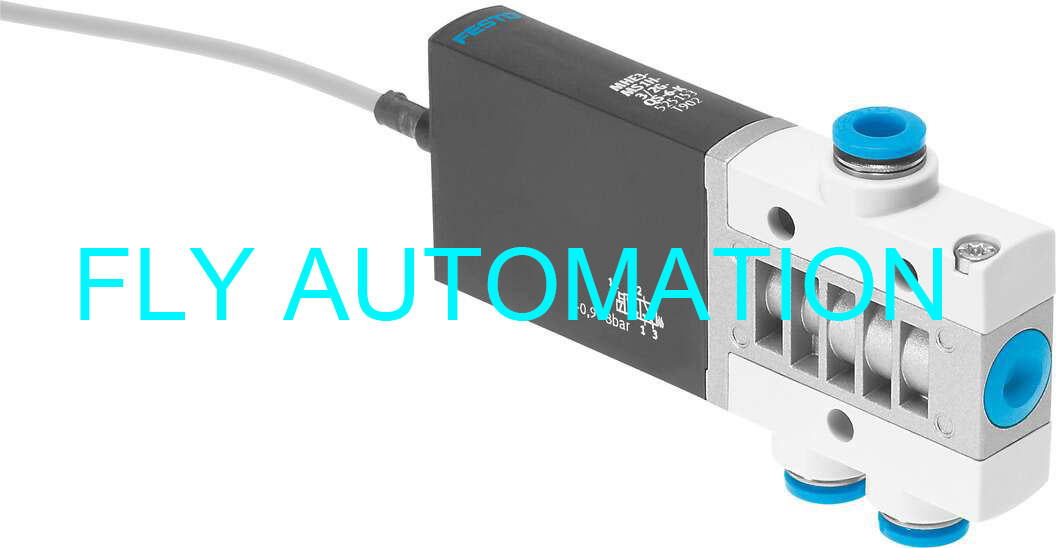

| Model Number: | MHE3-MS1H-3/2G-QS-6-K |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD100-120 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Model: | MHE3-MS1H-3/2G-QS-6-K | Order No: | 525153 |
|---|---|---|---|
| Brand: | FESTO | Weight: | 120 G |
| Electrical Connection: | Cable | Cable Length: | 2.5 M |
| High Light: | 3/2-Way Pneumatic Solenoid Valves,Galvanised Steel Pneumatic Solenoid Valves,14mm Solenoid Air Valve |
||
About product
1.Pneumatic connection: push-in connector for tubing O.D. 6 mm.
2.Normally closed.
3.With fast-switching electronics, switching time 2.3 ms.
4.The fast-switching valves are a technological treat for all things high-speed.
5.With switching times š 2 ms and a repetition accuracy š 0.2 ms, they represent the pinnacle of what is technologically achievable worldwide – even in 24-hour continuous operation with over 500 million cycles.
Technical Data
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 14 mm |
| Standard nominal flow rate | 200 l/min |
| pneumatic working port | QS-6 |
| Operating voltage | 24V DC |
| Design | Pressure-relieved poppet valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| Approval | RCM trademark c UL us - Recognized (OL) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| Nominal size | 3 mm |
| Grid dimension | 19 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Non-detenting |
| Type of piloting | Direct |
| Flow direction | Reversible with restrictions |

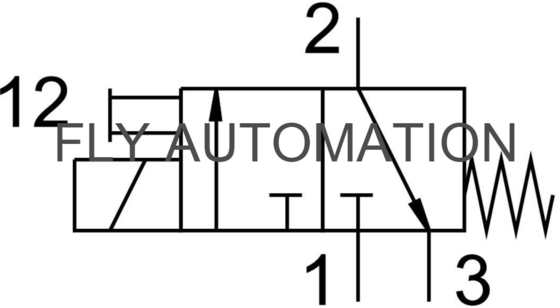

| Symbol | 00991308 |
| lap | Underlap |
| Reverse polarity protection | Bipolar |
| Max. switching frequency | 280 Hz |
| Switching time off | 2.8 ms |
| Switching time on | 2.3 ms |
| Switching time dispersion from 1 Hz | 0.2 ms |
| Duty cycle | 100% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-60°C |
| Ambient temperature | -5°C-60°C |
| Product weight | 120 g |
| Electrical connection | Cable |
| Cable length | 2.5 m |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | QS-6 |
| Pneumatic connection, port 2 | QS-6 |
| Pneumatic connection, port 3 | QS-6 |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Die-cast zinc, coated |
| Material cable sheath | PUR |
| Material screws | Galvanised steel |
Other size as follow
| Type | Order no | Price |
| MHE3-MS1H-3/2O-1/8 | 525167 | USD100-120 |
| MHE3-MS1H-3/2G-1/8 | 525147 | USD100-120 |
| MHE3-MS1H-3/2O-QS-6 | 525171 | USD100-120 |
| MHE3-MS1H-3/2G-QS-6 | 525151 | USD100-120 |
| MHE3-M1H-3/2O-1/8 | 525166 | USD100-120 |
| MHE3-M1H-3/2G-1/8 | 525146 | USD100-120 |
| MHE3-M1H-3/2O-QS-6 | 525170 | USD100-120 |
| MHE3-M1H-3/2G-QS-6 | 525150 | USD100-120 |
| MHE3-MS1H-3/2O-1/8-K | 525169 | USD100-120 |
| MHE3-MS1H-3/2G-1/8-K | 525149 | USD100-120 |
| MHE3-MS1H-3/2G-QS-6-K | 525153 | USD100-120 |
| MHE3-M1H-3/2O-1/8-K | 525168 | USD100-120 |
| MHE3-M1H-3/2G-1/8-K | 525148 | USD100-120 |
| MHE3-M1H-3/2G-QS-6-K | 525152 | USD100-120 |
There are so many products, welcome to enquire!
