| Brand Name: | FESTO |
| Model Number: | DFM-20-50-P-A-GF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-80 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1800 pcs per month |
| Type: | DFM-20-50-P-A-GF | Brand: | FESTO |
|---|---|---|---|
| Part No: | 170844 | Symbol: | '00991497 |
| LABS (PWIS) Conformity: | VDMA24364-B1/B2-L | Pneumatic Connection: | M5 |

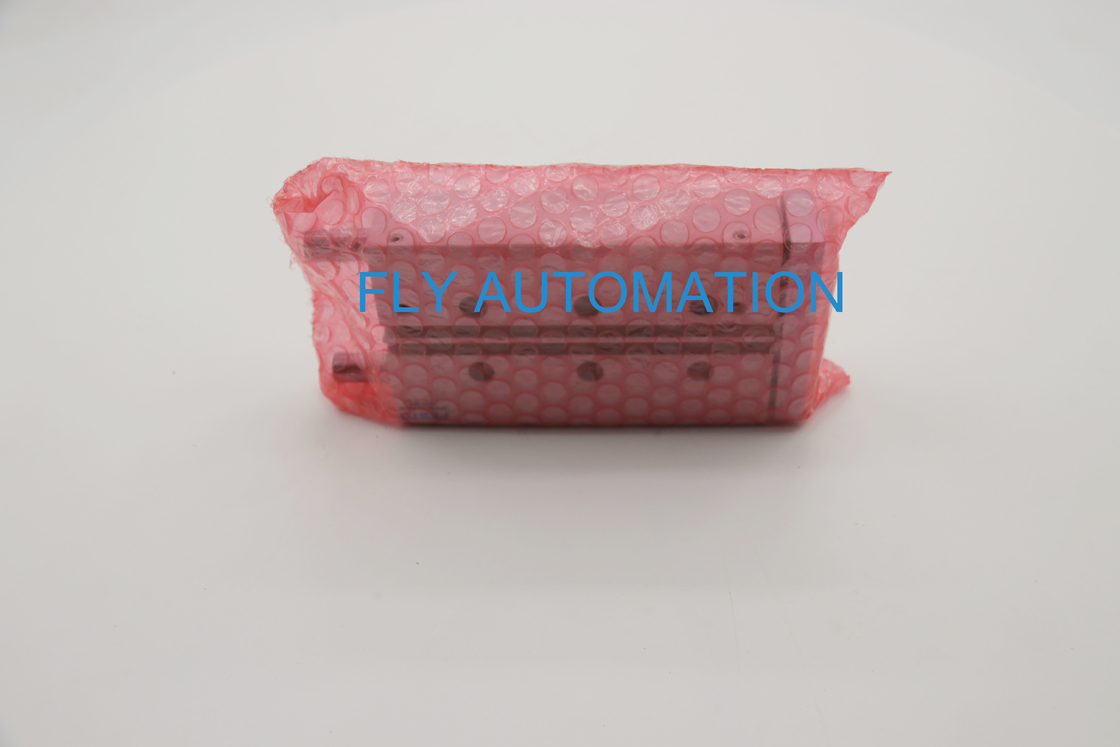

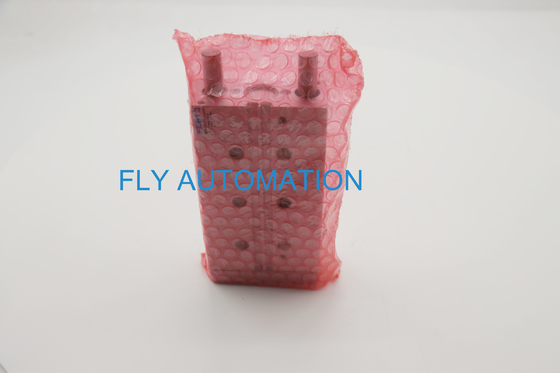

| High Light: | 170844 Pneumatic Air Cylinders,DFM-20-50-P-A-GF,Guided Drive Double Acting Pneumatic Cylinder |
||
About product
With plain-bearing guide: high rigidity thanks to large-diameter guide rods and four plain-bearing bushes
With recirculating ball bearing guide: for applications involving torque loads
Note on materials: RoHS-compliant
Technical Data
| Stroke | 50mm |
| Piston diameter | 20 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Product weight | 1158 g |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
Type codes
There are so many kinds. Please contact with me!
