Place of Origin: | China |
Brand Name: | FESTO |

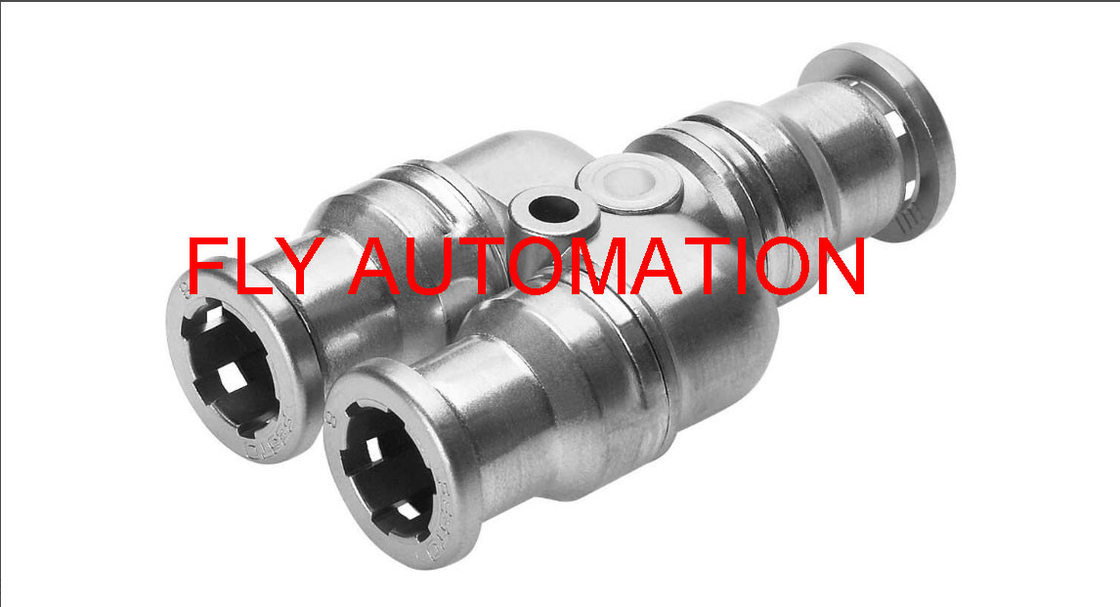

Model Number: | CRQSY-8 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD30-40 |
Packaging Details: | Plastic bag, carton,OPP bag |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 120 pcs per week |
Nominal Size: | 4.9mm | Order No: | 130658 |
---|---|---|---|
Brand: | FESTO | GTIN: | 4052568116330 |
Specifications: | CRQSY-8 | Weight: | 34g |
Size Of Pack: | 1 | Material Housing: | High-alloy Stainless Steel |
High Light: | CRQSY-8 Push In Y Connector,Pneumatic Tube Y Connector,Pneumatic Tube Fittings Connector |
Nominal size:4.9mm
Order no:130658
Brand:FESTO
GTIN:4052568116330
Specifications:CRQSY-8
Weight:34g
Size of pack:1
Material housing:High-alloy stainless steel
Product Technical Data
Feature | Value |
Size | Standard |
Nominal size | 4.9 mm |
Mounting position | optional |
Design | Y-shape |
Size of pack | 1 |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance class CRC | 4 - Very high corrosion stress |
Product weight | 34 g |
Number of outputs | 2 |
Number of supply lines | 1 |
Suitable cables | PFAN |
Pneumatic connection, port 1 | For tubing outer diameter of 8 mm |
Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
Material housing | High-alloy stainless steel |
Material release ring | High-alloy stainless steel |
Material tubing clamp component | High-alloy stainless steel |
Material tubing seal | FPM |
Other size as below
Specifications | Order NO | GTIN | Weight(g) | EXW Price | Size of pack |
CRQSY-4 | 130656 | 4052568068462 | 15 | USD30-40 | 1 |
CRQSY-6 | 130657 | 4052568068479 | 24 | USD30-40 | 1 |
CRQSY-8 | 130658 | 4052568116330 | 34 | USD30-40 | 1 |
CRQSY-10 | 130659 | 4052568116347 | 52 | USD30-40 | 1 |
CRQSY-12 | 130660 | 4052568116354 | 80 | USD30-40 | 1 |
Tube assembly/disassembly
Mounting
The prerequisite for ensuring that the inside seal 3 is securely held and protected against damage is that the tube be cut to straight lengths and deburred.
1) Pull out releasing ring 1.
2) Insert tubing until the end stop 2.It is important to ensure that the tubing is inserted into the inside seal 3.
Depending on the toler-ance position of the tubing and the seal, the contact of the tubing with the seal may be wrongly interpreted as the end stop.
3) Check that the tubing connector is securely held by pulling gently on the tube.
Dismantling
1) The tubing can be detached easily by pressing down and holding the releasing ring 1. Remove the tubing carefully from the threaded connector.
2) Before re-using the tubing,remove the damaged part by cutting it off.
Advantage
1.Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance.
2.Food grade (Safe and reliable).
3.Stainless steel(Quality assurance and high quality).
4.The pipe connector has a series of advantages, such as advanced structure, good performance, convenient use, no welding, no need for pipe expanding, etc.The pipe connector has been widely used in various mechanical hydraulic and pneumatic systems.
5.The stainless steel retaining claw within the fitting holds the tubing securely without damaging its surface.
6.Vibration and pressure surges are safely absorbed.
7.A fluoro elastomer sealing ring guarantees a perfect seal between the standard tubing and the body of the fitting.
Specifications, delivery date, price, welcome to inquire.
