| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | QST-12 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD4-5 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 6000 pcs per week |
| Order No: | 153132 | Specifications: | QST-12 |
|---|---|---|---|
| Brand: | FESTO | Note On Materials: | RoHS-compliant |
| Material Tubing Clamp Component: | High-alloy Stainless Steel | Material Tubing Seal: | NBR |

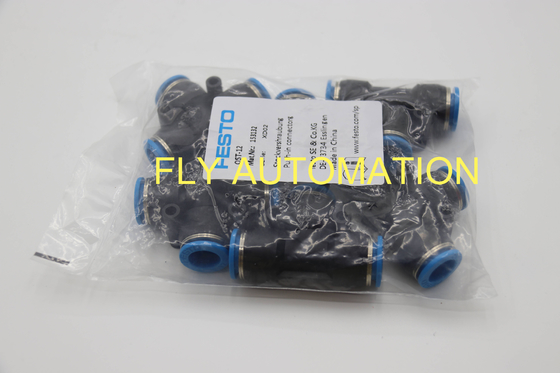

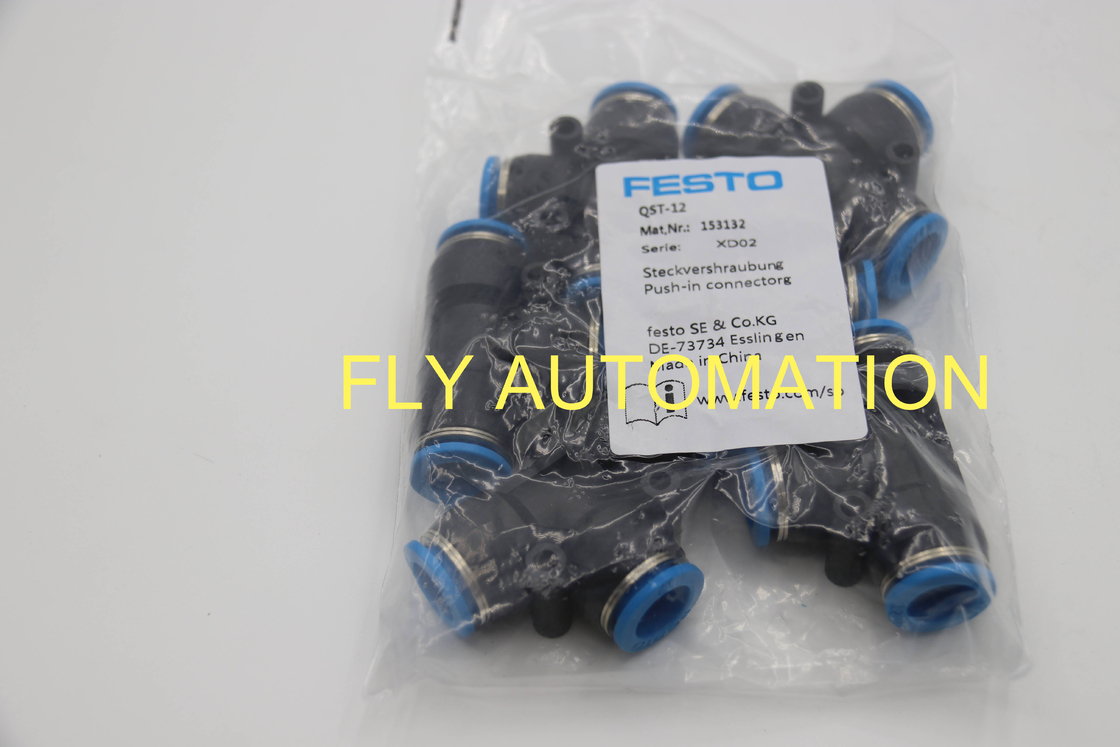

| High Light: | FESTO Push In T-Connector,Push In T-Connector QST-12,153132 Pneumatic Tube Fittings |
||
About product
Size of pack:10
Product weight:36 g
Colour of release ring:Blue
Pneumatic connection, port 1:For tubing outside diameter of 12 mm
Pneumatic connection, port 2:For tubing outside diameter of 12 mm
Product Technical Data
| Size | Standard |
| Nominal size | 10 mm |
| Mounting position | optional |
| Design | T-shape |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-80°C |
| Product weight | 36 g |
| Pneumatic connection, port 1 | For tubing outer diameter of 12 mm |
| Pneumatic connection, port 2 | For tubing outer diameter of 12 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery!
There are so many models.Welcome to enquiry !
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
