| Place of Origin: | China |
| Brand Name: | FESTO |

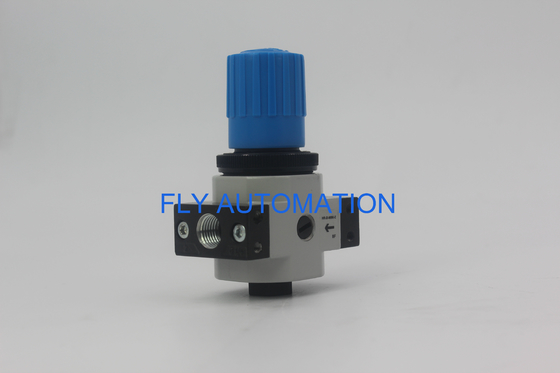

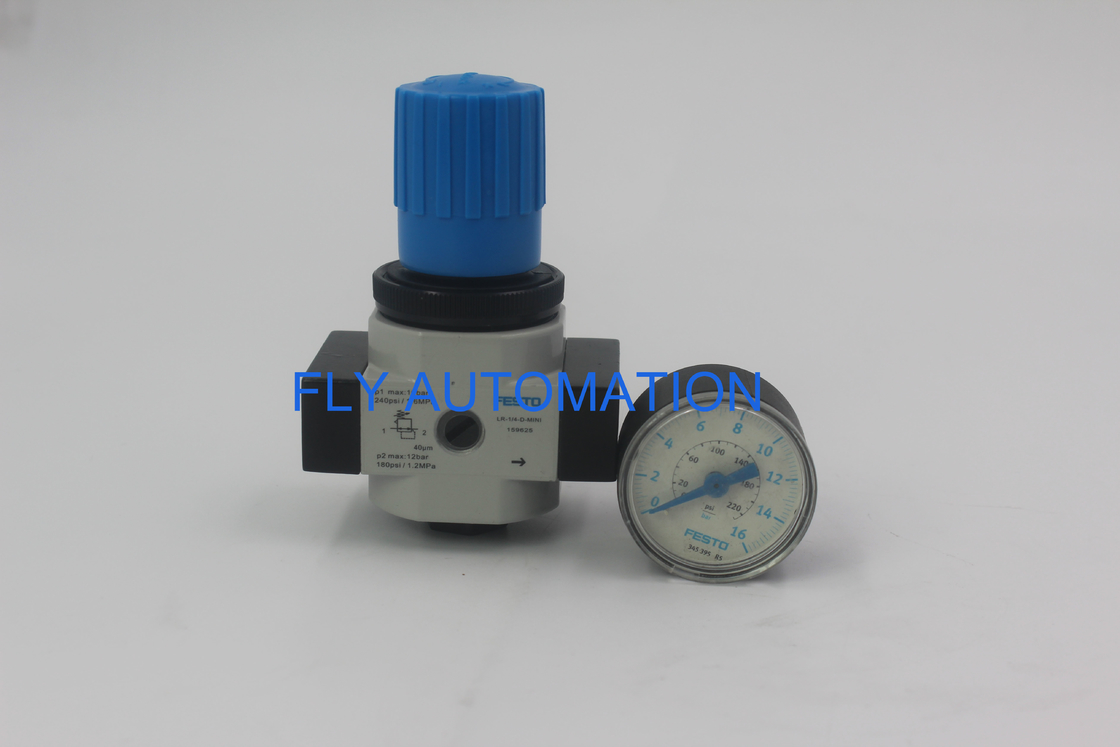

| Model Number: | LR-1/4-D-MINI |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 800 pcs per month |
| Brand: | FESTO | Part No: | 159625 |
|---|---|---|---|
| Type: | LR-1/4-D-MINI | Series: | D |
| Corrosion Resistance Class CRC: | 2 - Moderate Corrosion Stress | LABS (PWIS) Conformity: | VDMA24364-B1/B2-L |
| High Light: | Pneumatic System Pressure Regulator,Pressure Regulator LR-1/4-D-MINI |
||
About product
1.Also suitable for front panel mounting.
2.Two pressure gauge connections for different installation options.
3.Good regulation characteristics with minimal pressure hysteresis.
4.High flow rate.
Technical Data
| Size | Mini |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | optional |
| Design | Directly actuated diaphragm regulator |
| Symbol | 00991538 |
| Standard nominal flow rate | 1500 l/min |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10°C-60°C |
| Ambient temperature | -10°C-60°C |
| Product weight | 350 g |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS-compliant |
| Material sub-base | Die-cast zinc |
| Material seals | NBR |
| Material housing | Die-cast zinc |
Datasheet
There are many models . Please contact me!
