| Place of Origin: | China |
| Brand Name: | FESTO |

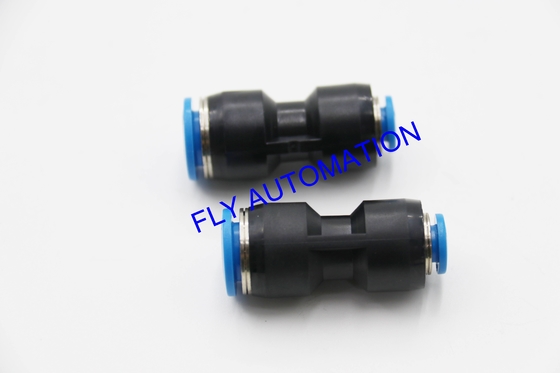

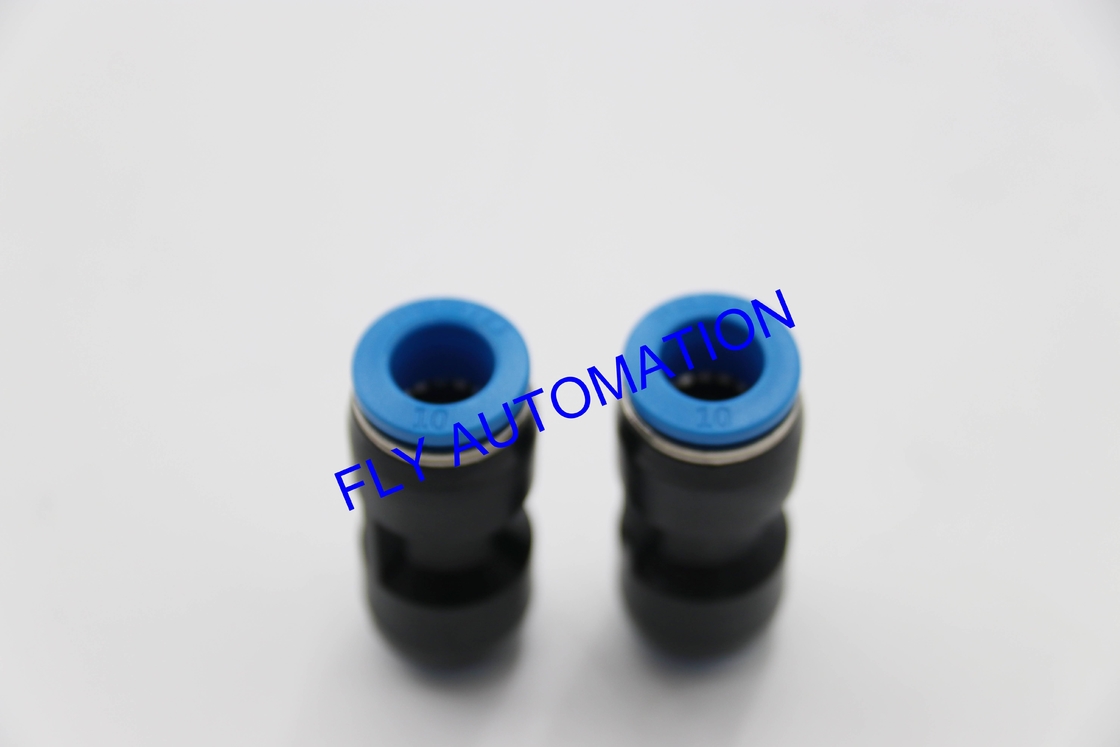

| Model Number: | QS-10-6 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD1-2 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 8000 pcs per week |
| Specifications: | QS-10-6 | Order No: | 130607 |
|---|---|---|---|
| Brand: | FESTO | Product Weight: | 12 G |
| Pneumatic Connection, Port 1: | For Tubing Outer Diameter Of 10 Mm | Pneumatic Connection, Port 2: | For Tubing Outside Diameter Of 6 Mm |
| High Light: | Push In Connector QS-10-6,130607 Pneumatic Tube Fittings,PBT Push Pull Connector |
||
About product
1.Standard series.
2.Wide range of variants: wide selection for maximum flexibility in standard applications.
3.Operating media: compressed air, vacuum, (water).
4.Color:blue
Product Technical Data
| Size | Standard |
| Nominal size | 4.3 mm |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 12 g |
| Pneumatic connection, port 1 | For tubing outer diameter of 10 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
Packages
There are so many models, best price and fast delivery time. Welcome to enquiry.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
