Place of Origin: | China |
Brand Name: | FESTO |

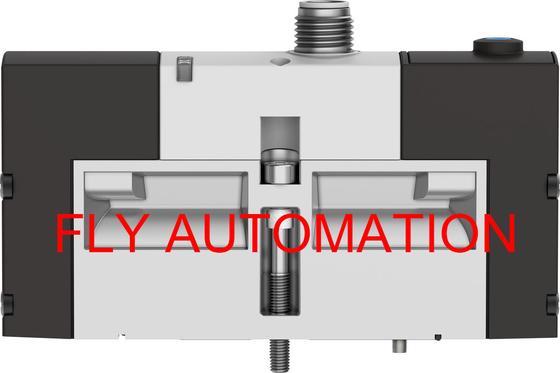

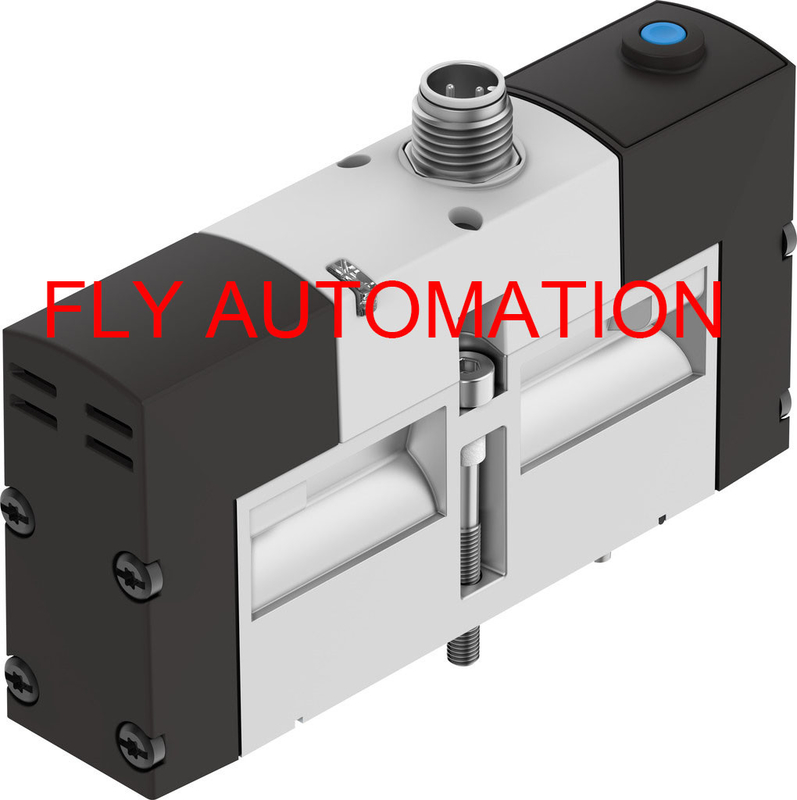

Model Number: | VSVA-B-M52-AH-A1-1R5L |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD80-100 |
Packaging Details: | Plastic bag, Carton |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 300 pcs per month |
Model: | VSVA-B-M52-AH-A1-1R5L | Order No: | 534555 |
---|---|---|---|
Brand: | FESTO | Signal Status Display: | LED |
Symbol: | '00991049 | Valve Function: | 5/2-way, Monostable |
High Light: | 5/2 Way Festo Solenoid Valve,Monostable Solenoid Air Valve,Metal Housing Pneumatic Solenoid Valves |
About product
1.Conforms to ISO 5599-1.
2.Electrical connection with central plug.
3.Robust metal housing.
4.Pneumatic spring.
5.Internal pilot air supply.
6.Sturdy and durable metal components.
Technical Data
Valve function | 5/2-way, monostable |
Type of actuation | Electric |
Construction width | 26 mm |
Standard nominal flow rate | 1100 l/min |
pneumatic working port | Sub-base size 26 mm to ISO 15407-1 |
Operating voltage | 24V DC |
Design | Piston gate valve |
Type of reset | Pneumatic spring |
Approval | RCM trademark c UL us - Recognized (OL) |
Degree of protection | IP65 NEMA 4 |
Nominal size | 9 mm |
Grid dimension | 27 mm |
Sealing principle | Soft |
Mounting position | optional |
Conforms to standard | ISO 15407-1 |
Manual override | Non-detenting |
Type of piloting | Pilot actuated |
Pilot air supply | Internal |
Flow direction | Non-reversible |
Symbol | 00991049 |
lap | Positive overlap |
Reverse polarity protection | For all electrical connections |
Additional functions | Holding current reduction Safety shut-off |
Signal status display | LED |
Flow rate of valve | 1400 l/min |
Flow rate of valve on individual sub-base | 1100 l/min |
Flow rate of pneumatically interlinked valve | 1100 l/min |
Switching time off | 40 ms |
Switching time on | 25 ms |
Duty cycle | 100% |
Nominal pick-up current per solenoid coil | 110 mA up to 20 ms |
Nominal current with current reduction | 30 mA after 20 ms |
Corrosion resistance class CRC | 2 - Moderate corrosion stress |
Media temperature | -5°C-50°C |
Protection against direct and indirect contact | PELV |
Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C-50°C |
Product weight | 270 g |
Electrical connection | 3-pin M12x1 Central plug Round design |
Type of mounting | On sub-base Via through-hole and screw |
Note on materials | RoHS-compliant |
Material seals | FPM HNBR NBR |
Material housing | Die-cast aluminium |
Another size as below
Type | Order no | Price |
VSVA-B-M52-AH-A1-1R2L | 534535 | USD80-100 |
VSVA-B-M52-AH-A1-1R5L | 534555 | USD80-100 |
VSVA-B-M52-MH-A1-1R2L | 534536 | USD80-100 |
VSVA-B-M52-MH-A1-1R5L | 534556 | USD80-100 |
VSVA-B-M52-AZH-A1-1R2L | 534525 | USD80-100 |
VSVA-B-M52-AZH-A1-1R5L | 534545 | USD80-100 |
VSVA-B-M52-MZH-A1-1R2L | 534526 | USD80-100 |
VSVA-B-M52-MZH-A1-1R5L | 534546 | USD80-100 |
There are so many products, welcome to enquire!
