Place of Origin: | China |
Brand Name: | FESTO |

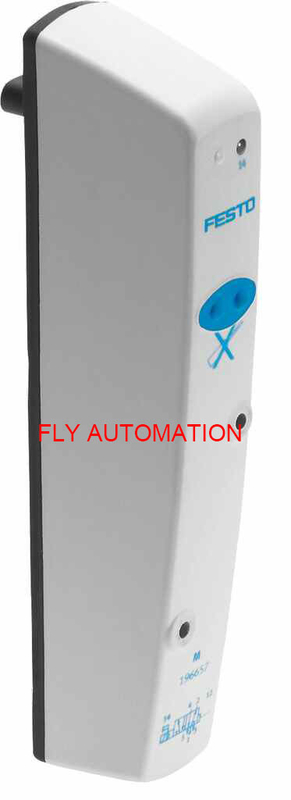

Model Number: | CDVI5.0-MT2H-5/3ES |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD80-100 |
Packaging Details: | Plastic bag, Carton |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 300 pcs per month |
Model: | CDVI5.0-MT2H-5/3ES | Order No: | 196653 |
---|---|---|---|
Brand: | FESTO | Valve Function: | 5/3 Exhausted |
Operating Voltage: | 24V DC | Sealing Principle: | Soft |
High Light: | 5/3 Exhausted Solenoid Air Valve,196653 Pneumatic Solenoid Valves,Ducted Venting Hole Pneumatic Solenoid Valves |
About product
1.External pilot air .
2.Ducted venting hole.
3.Easy-to-clean design.
4.Individual valve for clean design.
5.Proven valve technology combined with a highly resistant polymer material.
Technical Data
Valve function | 5/3 exhausted |
Type of actuation | Electric |
Standard nominal flow rate | 400 l/min |
pneumatic working port | Sub-base |
Operating voltage | 24V DC |
Design | Piston gate valve |
Type of reset | Mechanical spring |
Nominal size | 5 mm |
Exhaust-air function | With flow control option |
Sealing principle | Soft |
Manual override | Non-detenting |
Type of piloting | Pilot actuated |
Pilot air supply | External |
Flow direction | Reversible |

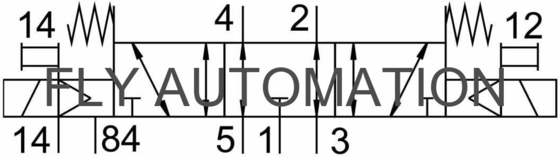

Symbol | 00991127 |
Note on forced dynamization | Switching frequency min. 1/month |
b value | 0.5 |
C value | 1.54 l/sbar |
Switching time off | 25 ms |
Switching time on | 12 ms |
Switching time reversal | 17 ms |
Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
Corrosion resistance class CRC | 3 - high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L |
Media temperature | -5°C-50°C |
Ambient temperature | -5°C-50°C |
Product weight | 210 g |
Type of mounting | Screw-in |
Pilot exhaust port 82/84 | Sub-base |
Pneumatic connection, port 1 | Sub-base |
Pneumatic connection, port 2 | Sub-base |
Pneumatic connection, port 3 | Sub-base |
Pneumatic connection, port 4 | Sub-base |
Pneumatic connection, port 5 | Sub-base |
Note on materials | RoHS-compliant |
Material seals | NBR TPE-O |
Material housing | Die-cast aluminium |
Another size as below
Type | Order no | Price |
CDVI5.0-MT2H-1X2GLS-EXT | 556379 | USD80-100 |
CDVI5.0-MT2H-1X2OLS-EXT | 556380 | USD80-100 |
CDVI5.0-MT2H-1X3GLS-EXT | 547013 | USD80-100 |
CDVI5.0-MT2H-1X3OLS-EXT | 547014 | USD80-100 |
CDVI5.0-MT2H-2x3GLS | 196661 | USD80-100 |
CDVI5.0-MT2H-2x3OLS | 196663 | USD80-100 |
CDVI5.0-MT2H-3OLS-3GLS | 196665 | USD80-100 |
CDVI5.0-MT2H-5LS | 196657 | USD80-100 |
CDVI5.0-MT2H-5JS | 196659 | USD80-100 |
CDVI5.0-MT2H-5/3GS | 196651 | USD80-100 |
CDVI5.0-MT2H-5/3BS | 196655 | USD80-100 |
CDVI5.0-MT2H-5/3ES | 196653 | USD80-100 |
