| Place of Origin: | China |
| Brand Name: | FESTO |

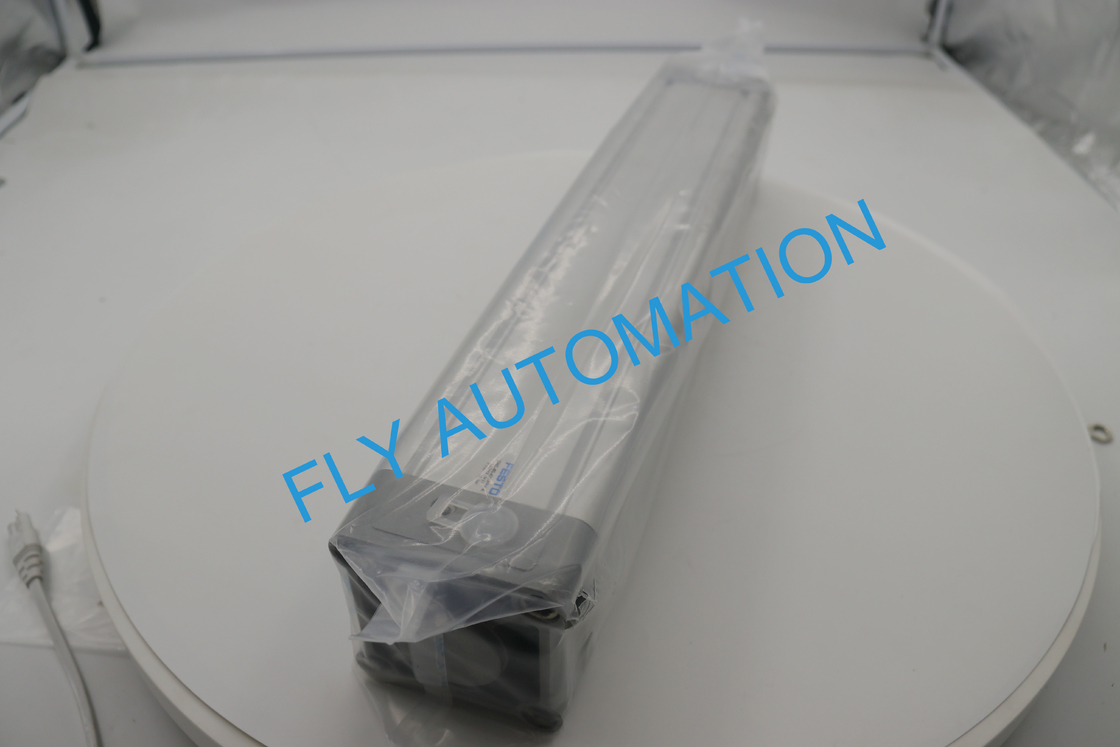

| Model Number: | DNC-80-500-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD80-100 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Type: | DNC-80-500-PPV-A | Part No: | 163444 |
|---|---|---|---|
| Brand: | FESTO | Mode Of Operation: | Double-acting |
| Pneumatic Connection: | G3/8 | Material Seals: | TPE-U(PU) |
| High Light: | 163444 Pneumatic Air Cylinders,G3/8 FESTO ISO Cylinder,TPE-U Pneumatic Air Cylinders |
||
About product
Cushioning:Pneumatic cushioning, adjustable at both ends
Design:Piston Piston rod Profile barrel
Ambient temperature: -20°C-80°C
Basic weight for 0 mm stroke:2790 g
Note on materials: RoHS-compliant
Technical Data
| Stroke | 500mm |
| Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 32 mm |
| Basic weight for 0 mm stroke | 2790 g |
| Additional weight per 10 mm stroke | 106 g |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cove | rDie-cast aluminium Coated |
| Material seals | TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
There are so many kinds. Please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
