| Brand Name: | FESTO |
| Model Number: | DSNU-25-20-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD40-50 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Brand: | FESTO | Type: | DSNU-25-20-P-A |
|---|---|---|---|
| Part No: | 1908306 | Stroke: | 20 Mm |
| Cushioning: | Elastic Cushioning Rings/plates At Both Ends | Cleanroom Class: | Class 6 According To ISO 14644-1 |
| High Light: | 1908306 Pneumatic Air Cylinders,DSNU-25-20-P-A,FESTO ISO Air Cylinder |
||

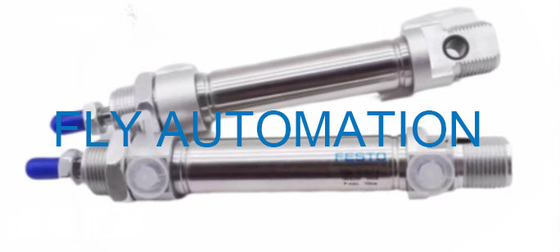

About product
The drive is equipped with flexible polymer end-position cushioning
Small loads
Low speeds
Variants:Piston rod at one end
LABS (PWIS) conformity:VDMA24364-B1/B2-L
Technical Data
| Stroke | 20 mm |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 238 g |
| Additional weight per 10 mm stroke | 11 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
There are so many models ,please contact with me.
DSNU-... – Cylinder barrel made of stainless steel
