| Brand Name: | FESTO |
| Model Number: | DSBC-40-550-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 800 pcs per month |
| Part No: | 1462834 | Type: | DSBC-40-550-PPVA-N3 |
|---|---|---|---|
| Brand: | FESTO | Conforms To Standard: | ISO 15552 |
| Position Detection: | Via Proximity Switch | Pneumatic Connection: | G1/4 |
| High Light: | Galvanised Steel FESTO ISO Cylinder,1462834 Pneumatic Air Cylinders,ISO 15552 Pneumatic Air Cylinders |
||

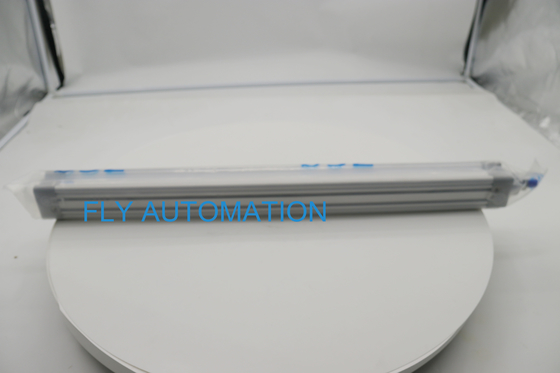

FESTO ISO cylinder DSBC-40-550-PPVA-N3 1462834 Pneumatic Air Cylinders
About product
Technical Data
| Stroke | 550 mm |
| Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Cable designation | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 740 g |
| Additional weight per 10 mm stroke | 37 g |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material collar screws | Galvanised steel |
There are so many models,please contact with me.
