| Brand Name: | FESTO |

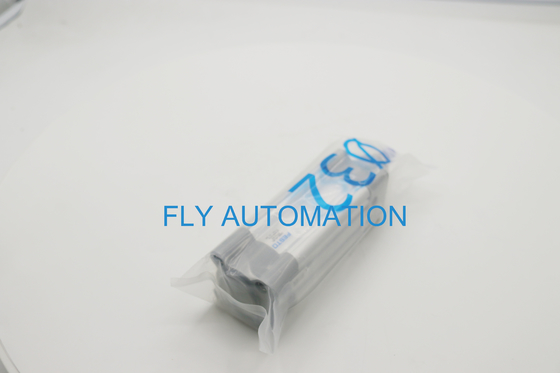

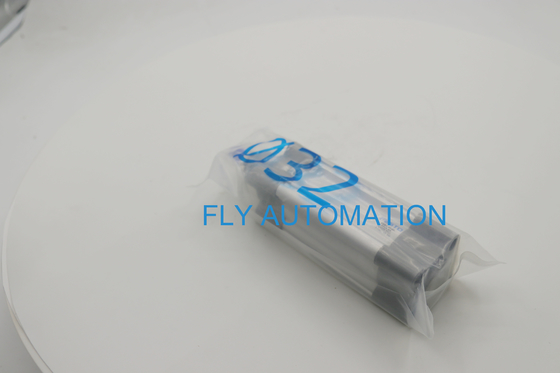

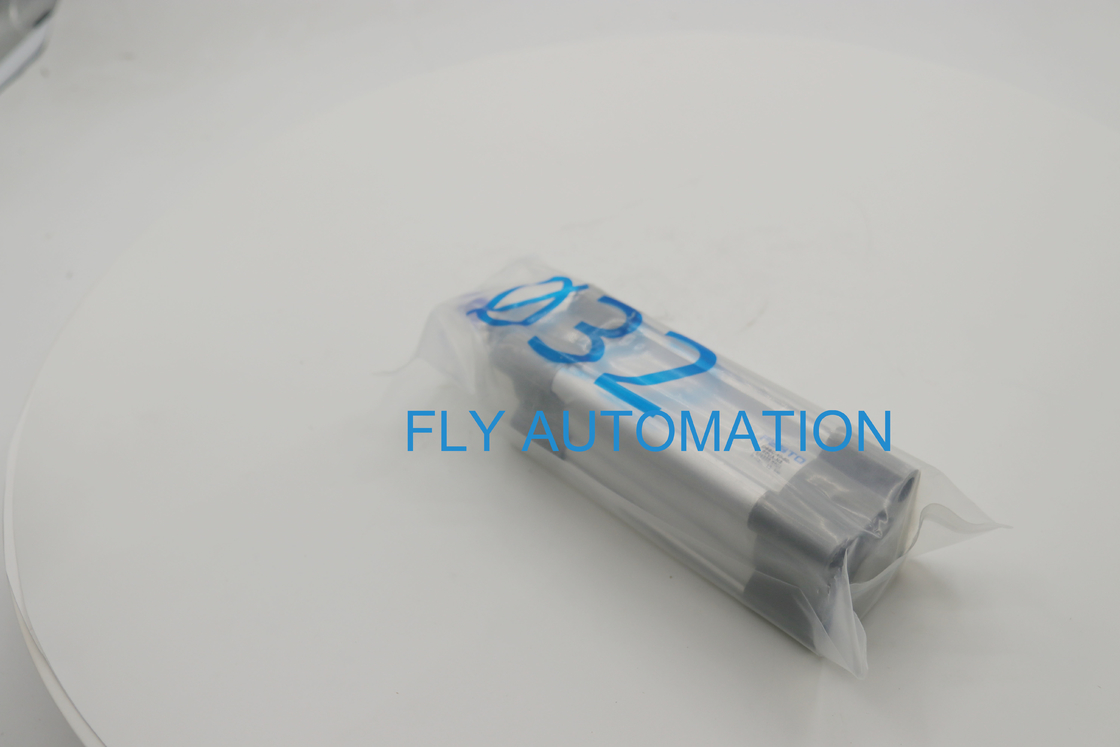

| Model Number: | DSBC-40-40-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-70 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Type: | DSBC-40-40-PPVA-N3 | Brand: | FESTO |
|---|---|---|---|
| Part No: | 1376657 | Piston Rod Thread: | M12x1.25 |
| Conforms To Standard: | ISO 15552 | Piston-rod End: | Male Thread |
| High Light: | DSBC-40-40-PPVA-N3,1376657 Pneumatic Air Cylinders,Male Thread ISO Cylinder |
||
About product
Double-acting
Corrosion resistance class CRC:2 - Moderate corrosion stress
Extensive range of accessories makes it possible to install the cylinder virtually anywhere
Technical Data
| Stroke | 40 mm |
| Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 19 mm |
| Basic weight for 0 mm stroke | 740 g |
| Additional weight per 10 mm stroke | 37 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material coverDie-cast aluminium, coated | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material pistonWrought aluminium alloy | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |
Characteristics
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.
There are so many models. Please contact with me!
