| Brand Name: | FESTO |
| Model Number: | DSBC-32-20-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD30-50 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Part No: | 2123069 | Brand: | FESTO |
|---|---|---|---|
| Type: | DSBC-32-20-PPVA-N3 | Stroke: | 20 Mm |
| Piston Diameter: | 32mm | Piston Rod Thread: | M10x1.25 |
| High Light: | DSBC-32-20-PPVA-N3,2123069 Pneumatic Air Cylinders,Adjustable FESTO ISO Cylinder |
||

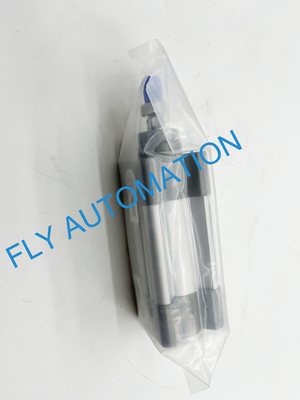

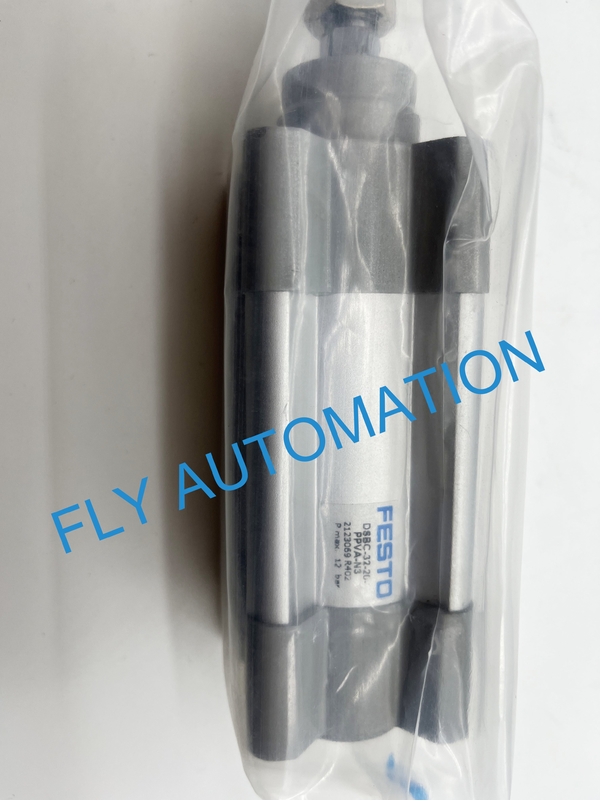

FESTO ISO cylinder DSBC-32-20-PPVA-N3 2123069 Pneumatic Air Cylinders
About product
Technical Data
| Stroke | 20 mm |
| Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 17 mm |
| Basic weight for 0 mm stroke | 465 g |
| Additional weight per 10 mm stroke | 27 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |
There are so many kinds. Welcome to contact with me!
With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.
