| Place of Origin: | China |
| Brand Name: | FESTO |

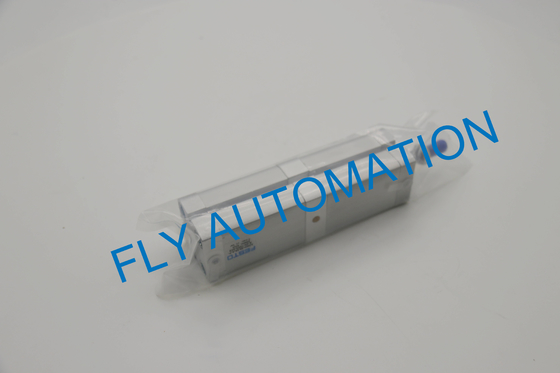

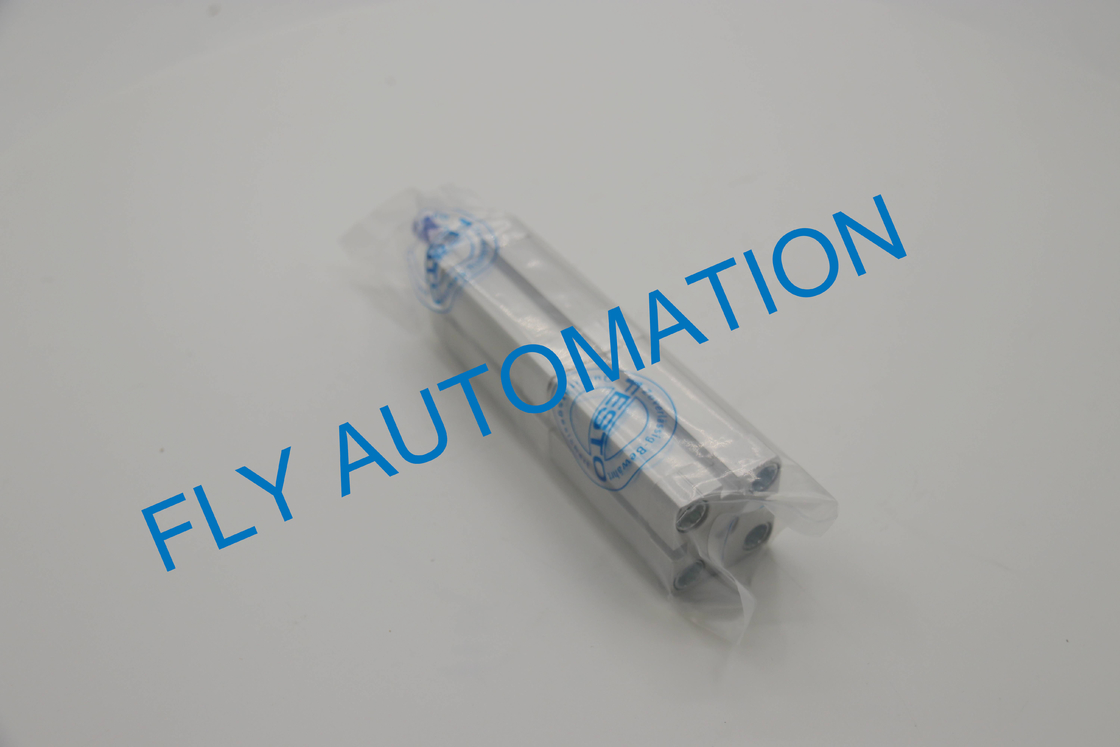

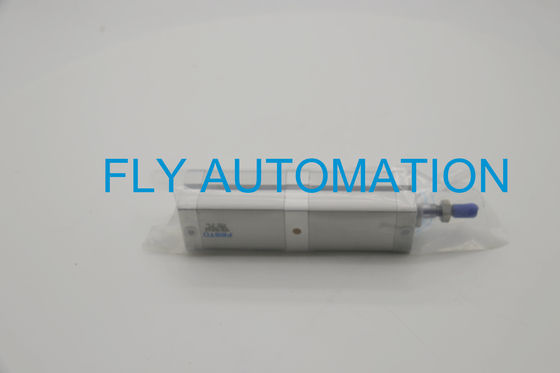

| Model Number: | ADNH-25-30-A-P-A-2N-10K2-3K8 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-80 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Brand: | FESTO | Part No: | 539691 |
|---|---|---|---|
| Type: | ADNH-25-30-A-P-A-2N-10K2-3K8 | Stroke: | 30 Mm |
| Piston Diameter: | 25 Mm | Material Piston Rod: | High-alloy Steel |
| High Light: | High Force Pneumatic Air Cylinders,Festo High Force Cylinder |
||
About product
Piston diameter:25 mm
Stroke:30 mm
Ambient temperature: -20°C-120°C
Pneumatic connection:M5
Color:Silver
Technical Data
| Stroke | 30 mm |
| Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Position detection | Via proximity switch |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-120°C |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Anodised |
| Material seals | TPE-U(PU) |
| Material housing | Wrought aluminium alloy Anodised |
| Material piston rod | High-alloy steel |
General technical data
There are so many models . Please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
