| Place of Origin: | China |
| Brand Name: | FESTO |

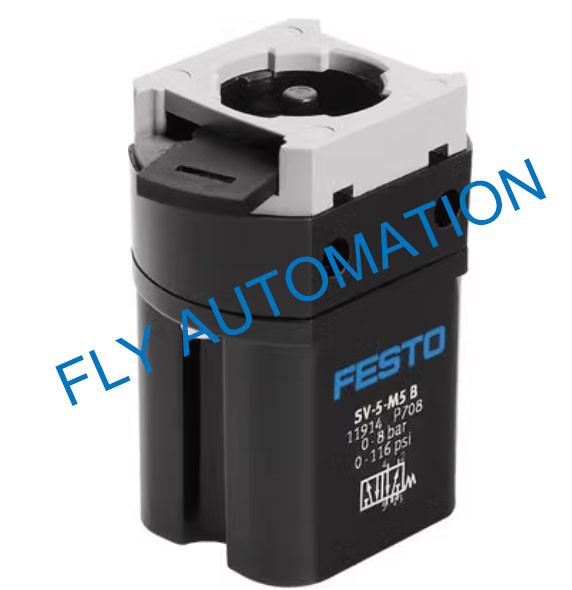

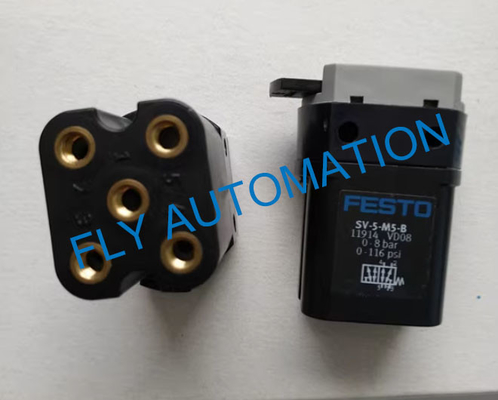

| Model Number: | SV-5-M5-B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-40 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Brand: | FESTO | Part No: | 11914 |
|---|---|---|---|
| Type: | SV-5-M5-B | Ambient Temperature: | -10°C-60°C |
| Pneumatic Connection, Port 1: | M5 | Material Housing: | Polymer Brass |
| High Light: | 11914 Front Panel Valve,Front Panel Pneumatic Valve |
||
About product
1.Switches have several switching positions that can be alternated between as required.
2.Mushroom pushbuttons return to their initial switching position after they are actuated.
3.Key actuators can only be actuated using the key. The key can be removed in any switching position.
Technical Data
| Valve function | 5/2-way, monostable |
| Type of actuation | Manual |
| Standard nominal flow rate | 95 l/min |
| Design | Poppet valve with spring return |
| Type of reset | Mechanical spring |
| Nominal size | 2.3 mm |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of piloting | Direct |
| Symbol | 00991339 |
| lap | Positive overlap |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-60°C |
| Product weight | 53 g |
| Type of mounting | Front panel mounting With through-hole |
| Pneumatic connection, port 1 | M5 |
| Material seals | NBR |
| Material housing | Polymer Brass |
Materials
There are many models . Please contact me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
