FESTO Compact Cylinder ADVU-50-60-A-P-A 156643 Pneumatic Air Cylinders

Product Details:

Brand Name:	FESTO
Model Number:	ADVU-50-60-A-P-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD60-70
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	8-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1200 pcs per month

Contact Now

Detailed Product Description

Part No:	156643	Brand:	FESTO
Type:	ADVU-50-60-A-P-A	Material Piston Rod:	High-alloy Steel
Weight:	1000 G	Color:	Silver
High Light:	ADVU-50-60-A-P-A , 156643 Pneumatic Air Cylinders , Corrosion Resistant FESTO Compact Cylinder

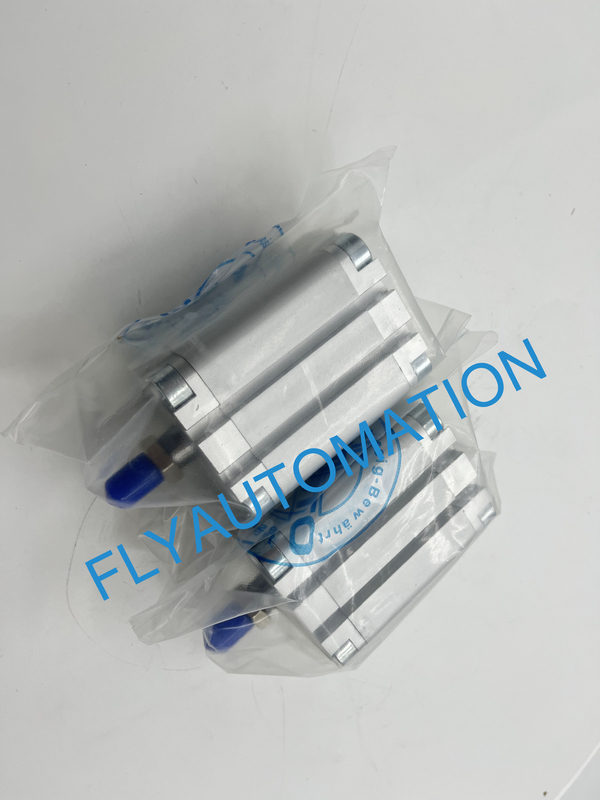

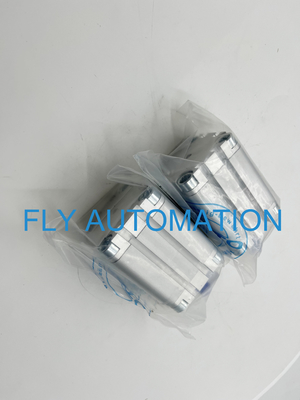

FESTO Compact cylinder ADVU-50-60-A-P-A 156643 Pneumatic Air Cylinders

Name: FESTO Compact Cylinder ADVU-50-60-A-P-A 156643 Pneumatic Air Cylinders
Brand: FESTO
SKU: ADVU-50-60-A-P-A
Price: 60 USD
Availability: InStock
Rating: 4.8 (138 reviews)

About product

Piston-rod end:Male thread

Design:Piston Piston rod

Position detection:Via proximity switch

Material collar screws:Galvanised steel

Material dynamic seals:NBR TPE-U(PU)

Technical Data

Stroke	60 mm
Piston diameter	50 mm
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Mode of operation	Double-acting
Piston-rod end	Male thread
Design	Piston Piston rod
Position detection	Via proximity switch
Symbol	00991217
Variants	Piston rod at one end
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C-80°C
Basic weight for 0 mm stroke	560 g
Additional weight per 10 mm stroke	72 g
Type of mounting	Either: With through-hole With accessories
Pneumatic connection	G1/8
Material collar screws	Galvanised steel
Material cover	Wrought aluminium alloy
Material dynamic seals	NBR TPE-U(PU)
Material piston rod	High-alloy steel
Material cylinder barrel	Wrought aluminium alloy

Delivery

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. Also we can send by your delivery acount if you want.

4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

FESTO has a wide variety of products and reliable quality. Welcome to enquiry.
