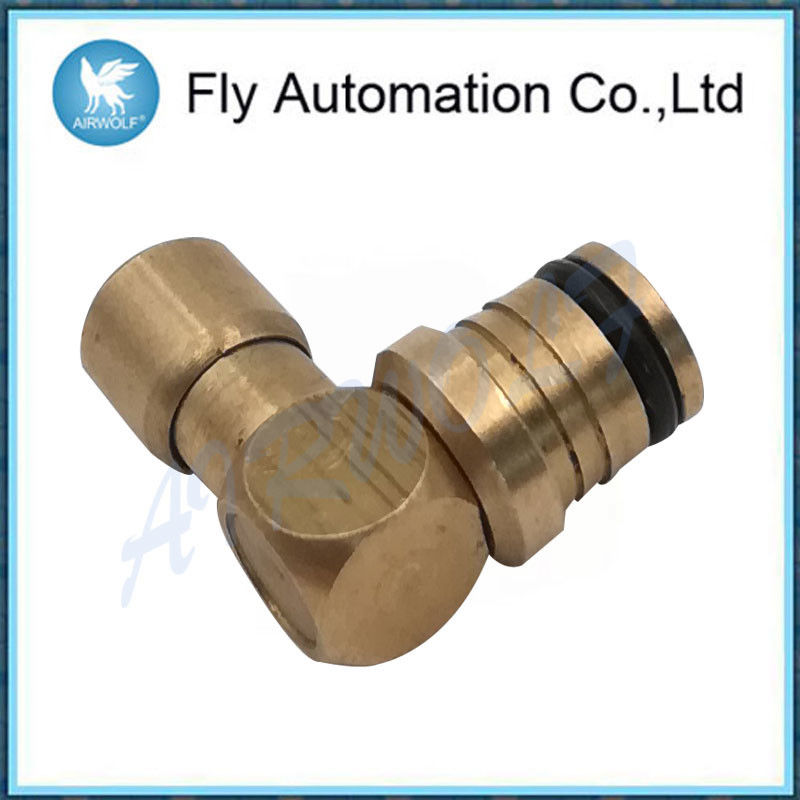

EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints

EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints

  • EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints
  • EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints
  • EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints
  • EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints
EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints
Product Details:
Place of Origin: CHINA
Brand Name: EISELE
Certification: CE
Model Number: M4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-10 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs /day
Contact Now
Detailed Product Description
Model: M4 Port Size: M5
Color: Yellow Application: Heidelberg Ink Reel
Material: Elbow Screw Joints
High Light:

flexible tube fittings

,

pneumatic fittings and tubing

EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints



1. Flow optimizationFITTINGS MADE OF BRASS FOR COOLING-WATER APPLICATIONS

The flow-optimized connections of EISELE LIQUID LINE are preferably suitable for applications with closed fluid circuits and for use in aqueous, aggressive media. They are used in cooling water circuits for welding
applications.
assembly technique
Due to EISELE’s patent-registered release sleeve, the assembly and disassembly of the tubes can be done easily, fast and without using any tools. This is a cost-saving method and ensures a flexible and reliable connection solution, even if the plug connectors are frequently used.







Elbow connector
- Seals FPM
- Material with media contact: Brass, dezincification resistant
- Material without media contact: Brass
- Temperature range: -4 to 248 °F (-20 to +120 °C)
- Working pressure range: -14 to 232 psi (-0.95 to 16 bar)

EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints 0

for tube A for tube A L1 L2 g/piece
OD3 OD4 27 17.5 7.3
OD4 OD5 21 14 10.5
OD6 OD9 19.5 11 18.7



EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints 1EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints 2

NingboFly Automation was founded in 2006.

We have many years experience in producing pneumatic components.

Pneumatic components includes pneumatic fittings, pulse valves, water valves, induction coil,

solenoid valves, manual valves, air control valves, angle seat valve, air preparation units,

cylinders, air gun, air brush, machinery parts, PU/PE pneumatic & hydraulic tubes and pneumatic

accessories.

EISELE GERMANY yellow tube OD4 G1/8 Variable metal joint OD5 elbow screw joints 3
