| Brand Name: | FESTO |

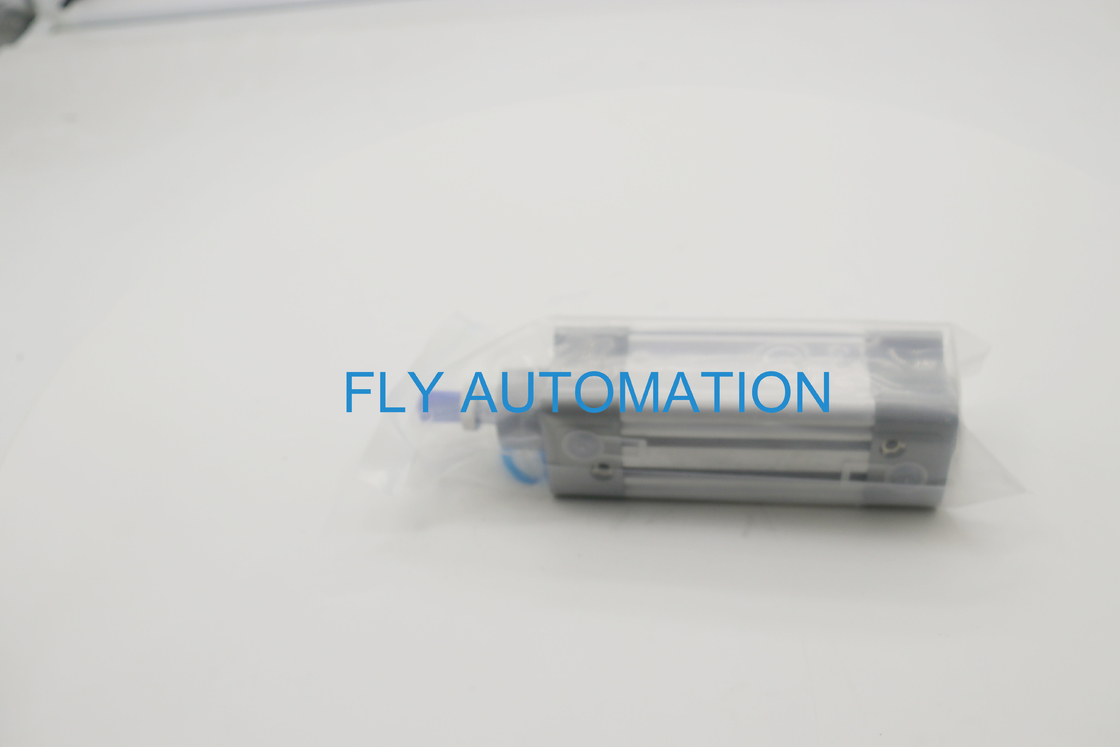

| Model Number: | DSBC-40-70-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-70 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1800 pcs per month |
| Part No: | 2123225 | Brand: | FESTO |
|---|---|---|---|
| Type: | DSBC-40-70-PPVA-N3 | Cleanroom Class: | Class 6 According To ISO 14644-1 |
| Pneumatic Connection: | G1/4 | Note On Materials: | RoHS-compliant |
| High Light: | Die Cast Aluminium ISO Cylinder,2123225 Pneumatic Air Cylinders,Pneumatic Cushioning Double Acting ISO Cylinder |
||
About product
Cleanroom class:Class 6 according to ISO 14644-1
Pneumatic connection: G1/4
Note on materials: RoHS-compliant
Cushioning piston material:POM
Material collar screws:Galvanised steel
Technical Data
| Stroke | 70 mm |
| Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 19 mm |
| Basic weight for 0 mm stroke | 740 g |
| Additional weight per 10 mm stroke | 37 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material coverDie-cast aluminium, coated | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material pistonWrought aluminium alloy | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |
Attention
1.Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2.Any order is welcome. we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions.
please feel free to contact us.
There are so many models. Please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
