DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21

Product Details:

Place of Origin:	CHINA
Brand Name:	SIEMENS
Model Number:	6EP1935-6ME21

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	EXW USD414-553
Packaging Details:	carton
Delivery Time:	8-15 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100PCS Every month

Contact Now

Detailed Product Description

Brand:	SIEMENS	Used In:	KBA 318
GWS Part ID:	166885427	Net Weight (kg):	5.546 Kg
Packaging Dimension:	21x 23x 18CM	Output:	DC24V / 20A
High Light:	KBA 318 Lead Acid Battery Pack , DC24V Lead Acid Battery Pack , Siemens Lead Battery Module

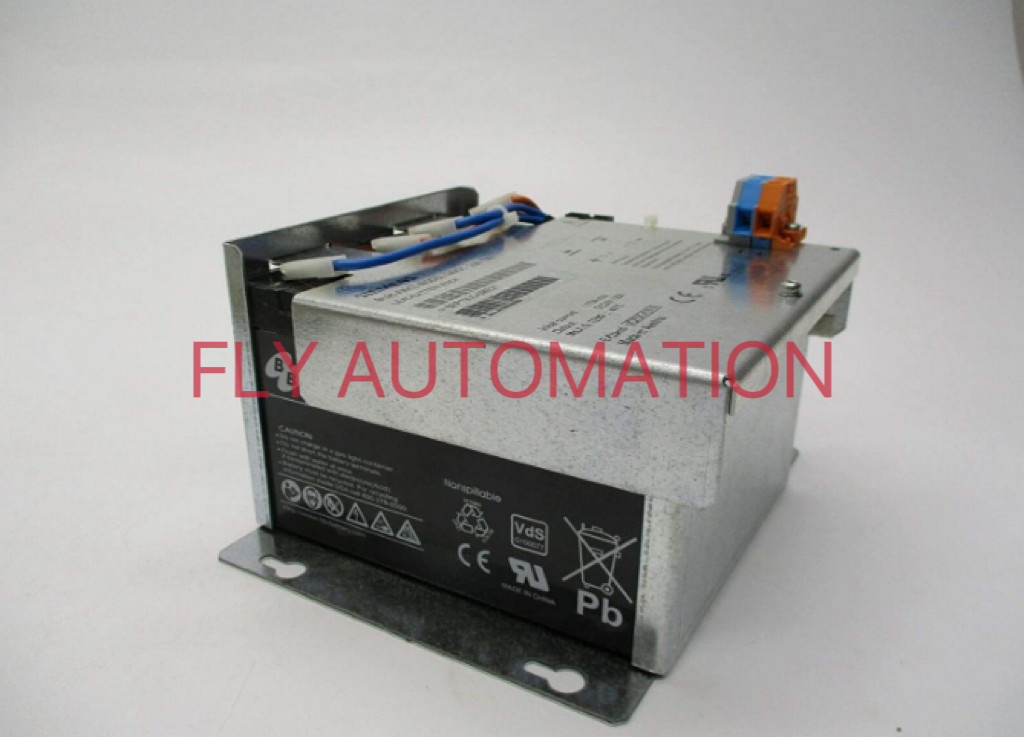

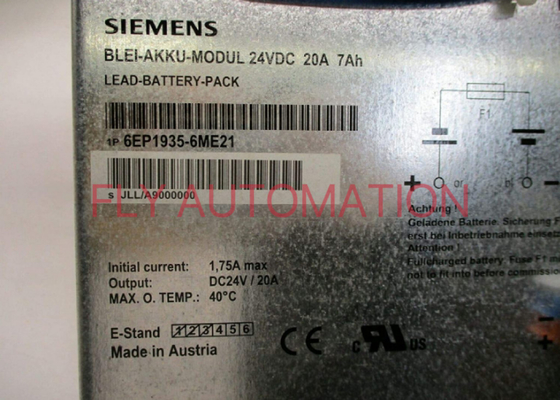

SIEMENS LEAD BATTERY PACK 6EP1935-6ME21

Name: DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
Brand: SIEMENS
SKU: 6EP1935-6ME21
Price: 414 USD
Availability: InStock
Rating: 4.8 (148 reviews)

DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21

describe
SITOP BATTERY MODULE/24V/7AH SITOP battery module 24 V/7 Ah with maintenance free sealed lead batteries for SITOP DC UPS module 6 A, 15 A and 40 A Ex approval no longer available
Charging current charging voltage
end-of-charge voltage at DC
● at -10 °C recommended	29 V
● at 0 °C recommended	28.4 V
● at 10 °C recommended	27.8 V
● at 20 °C recommended	27.3 V
● at 30 °C recommended	26.8 V
● at 40 °C recommended	26.6 V
● at 50 °C recommended	26.3 V
Output
charging current maximum	1.75 A
output voltage at DC rated value	24 V
Safety
design of short-circuit protection	Battery fuse 20 A/32 V (solid-state circuitry blade-type fuse + support)
design of the overload protection	Valve control
Safety
operating resource protection class	Class III
protection class	IP IP00
Approvals
certificate of suitability
● CE marking	Yes
● UL approval	Yes
● as approval for USA	cURus-Recognized (UL 1778, CSA C22.2 No. 107.1), File E219627
● cCSAus, Class 1, Division 2	No
● ATEX	No
certificate of suitability
● EAC approval	Yes
● shipbuilding approval	Yes
shipbuilding approval	ABS, DNV GL
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS)	Yes
● DNV GL	Yes
environmental conditions
Operating data note	For storage, mounting and operation of lead-acid batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be at least 50 cm away.
ambient temperature
● during operation	-15 ... +50 °C
● during transport -20 ... +50 °C
● during storage -20 ... +50 °C
relative temporary capacity loss at 20 °C in a month typical	3%
Service life
service life of energy storage
● typical	capacity falls to 80 % of original capacity (according to EUROBAT)
● at 20 °C typical	4 a
● at 30 °C typical	2 a
● at 40 °C typical	1 a
● at 50 °C typical	0.5 a
ambient temperature during storage	Along with the storage and operating temperature, other factors such as the duration of the storage period and the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, and within the temperature range 0 to +20 °C.
Mechanics
type of electrical connection	spring-loaded terminals
● for power supply unit	1 screw terminal each for 0.08 ... 4 mm² for + BAT and - BAT
product component included	Accessories pack with solid-state circuitry fuse 20 A and 30 A
width of the enclosure	186 mm
height of the enclosure	168 mm
depth of the enclosure	121 mm
installation width	206 mm
mounting height	188 mm
fastening method
● wall mounting	Yes
● standard rail mounting	NO
● S7 rail mounting	No
fastening method	can be screwed onto flat surface (keyhole mounting for hooking in to M4 screws)
net weight	6 kg
number of cells	12
battery capacity	7 A·h
