Model Number: | CPE18-M1H-5L-1/4 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | $118 |
Packaging Details: | 15.5*9.5*2.5 |
Payment Terms: | T/T, Western Union, MoneyGram Paypal |
Supply Ability: | 50 PCS Per Week |
Valve Function: | 5/2-way, Monostable | Operating Voltage: | 24V DC |
---|---|---|---|
Operating Pressure: | 0.25 -1.0 MPa ,2.5-10 Bar | Pneumatic Working Port: | G1/4 |
Media Temperature: | -5 - 50 ℃ | Ambient Temperature: | -5 - 50 ℃ |
Material Housing: | Die-cast Aluminium | Pilot Air Port 12,14: | M5 |
Max. Positive Test Pulse With 0 Signal: | 3300 μs | Max. Negative Test Pulse With 1 Signal: | 3100 μs |
High Light: | iso pneumatic solenoid valves,festo 163142 pneumatic solenoid valves,aluminium festo solenoid valve 24vdc |

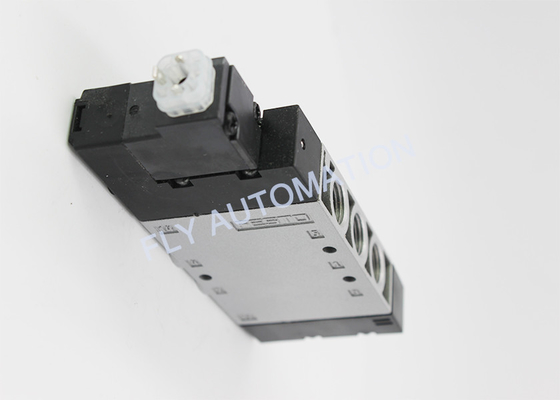

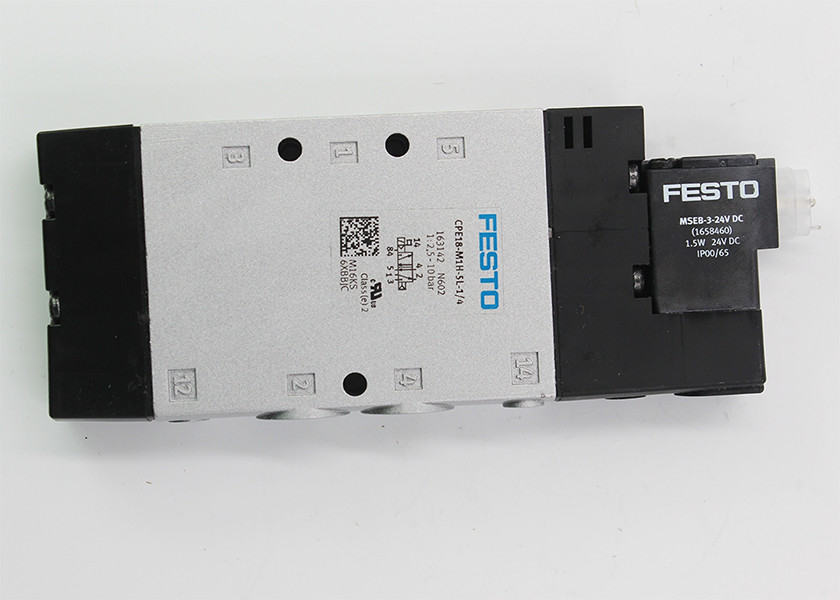

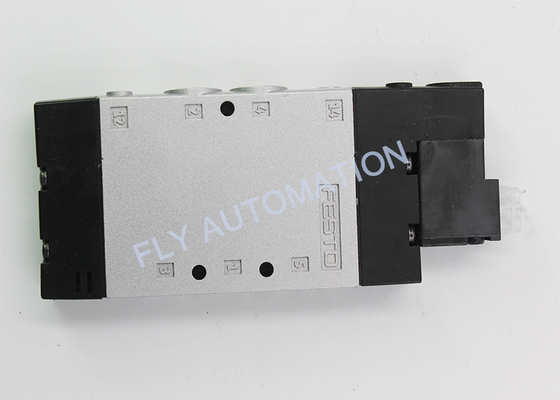

FESTO Solenoid Valves CPE18-M1H-5L-1/4 163142
Valve function | 5/2-way, monostable |
Type of actuation | Electric |
Construction width | 18 mm |
Standard nominal flow rate | 1500 l/min |
pneumatic working port | G1/4 |
Operating voltage | 24V DC |
Operating pressure | 0.25 -1.0 MPa ,2.5-10 bar |
Design | Piston gate valve |
Type of reset | Pneumatic spring |
Approval | CUL us - Recognized (OL) |
Maritime classification | See certificate |
Degree of protection | IP65,With plug socket To IEC 60529 |
Nominal size | 8 mm |
Exhaust-air function | With flow control option |
Sealing principle | Soft |
Mounting position | Optional |
Manual override | Detenting via accessory Non-detenting |
Type of piloting | Pilot actuated |
Pilot air supply | Internal |
Flow direction | Non-reversible |
Symbol | 991023 |
Valve position code | Inscription label holder |
lap | Positive overlap |
Switching time off | 20 ms |
Switching time on | 26 ms |
Duty cycle | 100% |
Max. positive test pulse with 0 signal | 3300 μs |
Max. negative test pulse with 1 signal | 3100 μs |
Characteristic coil data | 24 V DC: 1.5 W |
Permissible voltage fluctuations | -1.5 |
Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
Corrosion resistance class CRC | 2 - Moderate corrosion stress |
Media temperature | -5 - 50 ℃ |
Ambient temperature | -5 - 50 ℃ |
Product weight | 220 g |
Electrical connection | Type C |
Type of mounting | With through-hole |
Pilot exhaust port 82,84 | M5 |
Pilot air port 12,14 | M5 |
Pneumatic connection, port 1,2,3,4,5 | G1/4 |
Note on materials | RoHS-compliant |
Material seals | NBR |
Material housing | Die-cast aluminium |
Solenoid valves CPE18 | ||||
Type codes | ||||
1 | Series | 5 | Valve function | |
CPE | Solenoid valve, Compact Performance | 5L | 3/2-way valve, monostable | |
5J | 5/2-way valve, bistable | |||
2 | Width | 3GL | 3/2-way valve, normally closed | |
18 | 18 mm | 3OL | 3/2-way valve, normally open | |
5/3G | 5/3-way valve, mid-position closed | |||
3 | Nominal operating voltage | 5/3E | 5/3-way valve, mid-position exhausted | |
None | 5/3B | 5/3-way valve, mid-position pressurised | ||
M1 | 24 V DC | |||
M2 | 110 V AC | 6 | Pilot air | |
M3 | 230 V AC | Internal | ||
S | External | |||
4 | Electrical connection | 7 | Pneumatic connection | |
H | Plug pattern ZC | 1/4 | G1/4 | |
P1 | Interface for pilot valve size 15 mm to ISO 15218 (CNO- MO) | QS-8 | Push-in connector 8 mm | |
QS-10 | Push-in connector 10 mm |
