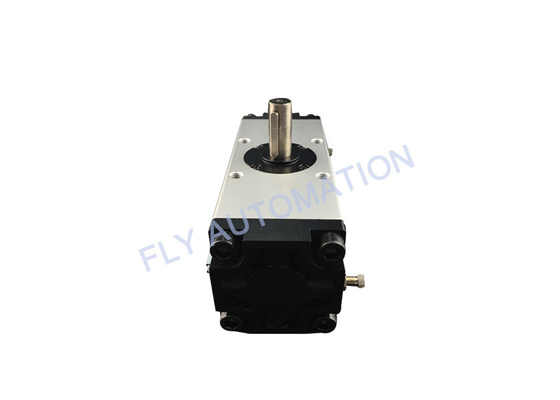

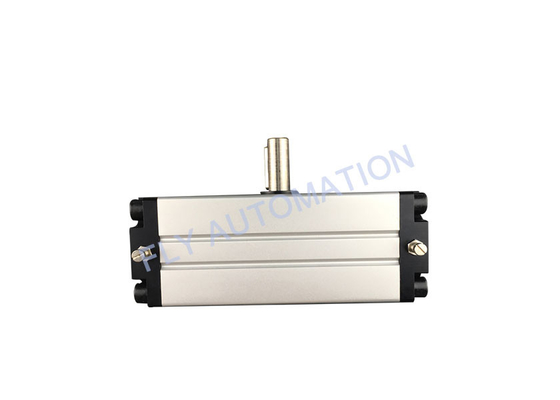

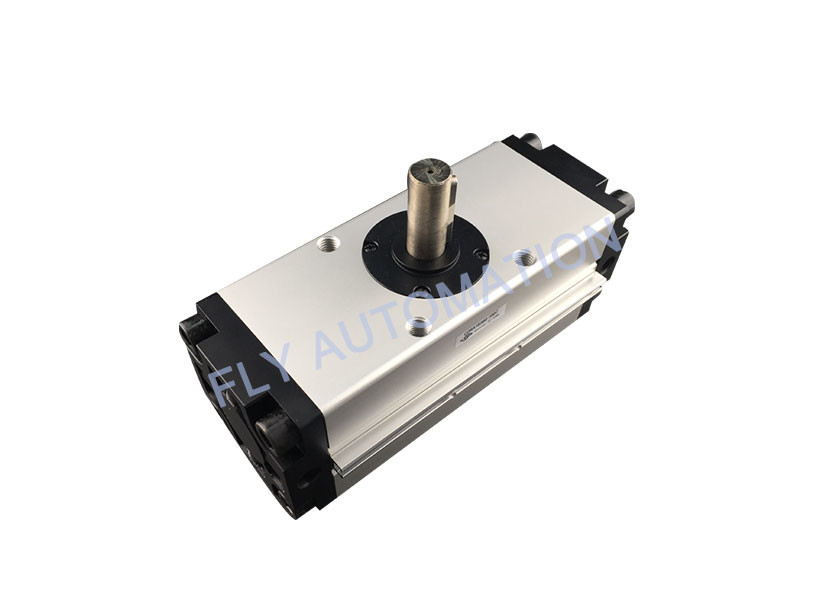

CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch

CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch

  • CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch
  • CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch
  • CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch
  • CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch
CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch
Product Details:
Place of Origin: CHINA
Brand Name: FLY
Certification: CE
Model Number: CDRA1BS80-180C
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation

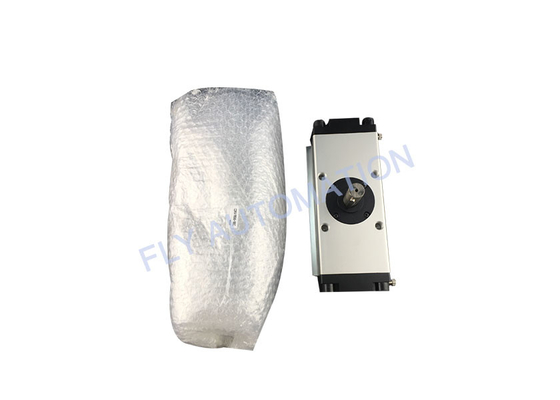

Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description
Fluid: Air (Non-lube) Max. Operating Pressure: 1.0 Mpa
Min. Operating Pressure: 0.1 MPa Ambient And Fluid Temperature: 0 To 60°C (No Freezing)
Backlash: Within 1° Series: CDRA1
Type: Pneumatic Material: Aluminium Alloy

CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch





Specification

Stype Pneumatic Air-hydro
Size 30 50 63 80 100 50 63 80 100
Fluid Air(Non-lube) Hydraulic oil
Max. operating pressure 1MPa
Min. operating 0.1MPa
Ambient and fluid temperature 0~60℃(No freezing)
Cushion None With or without air cushion None
Output(Nm) 1.9 9.3 17 32 74 9.3 17 32 74
Allowable surge prssure - 1.5MPa
Backlash - Within 1
Tolerance in rotating angle - +4
0




CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch



Mass/With Auto Switches and Solenoid Valves(KG)

Size Additional mass
With 2 auto switches With solenoid valve
30 0.1 -
50 0.2 0.2
63 0.4 0.2
80 0.6 0.2
100 0.9

0.2




CDRA1BS80-180C SMC Air Cylinder CDRA1 Rotary Actuator with Auto Switch
