| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | MA-50-16-1/4 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD10-20 |

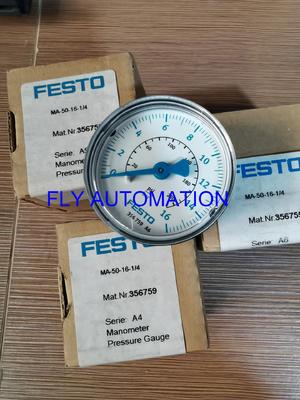

| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Type: | MA-50-16-1/4 | Part No: | 356759 |
|---|---|---|---|
| Brand: | FESTO | Conforms To Standard: | EN 837-1 |
| Material Screw-in Stud: | Brass | Weight: | 70 G |
| High Light: | 356759 Pneumatic System Components,Brass Pneumatic Pressure Gauge,Pressure Gauge EN 837-1 |
||
About product
1.The different colours make it possible to see at a glance whether the pressure is in the permitted tolerance range.
2.The adjustable red/green range provides additional safety when monitoring compressed air.
3.The coloured red and green segments show when the pressure is in the required pressure range.

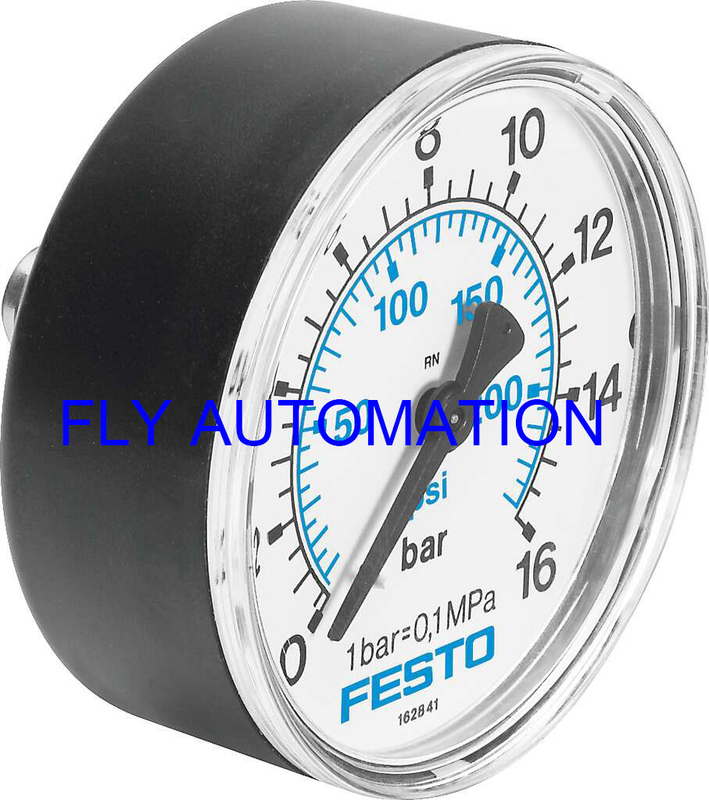

Technical Data
| Indicating range | 0 bar ... 16 bar |
| Indicating range | 0 psi ... 232 psi |
| Symbol | 00991463 |
| Conforms to standard | EN 837-1 |
| Nominal size of pressure gauge | 50 |
| Design | Bourdon tube pressure gauge |
| Type of mounting | In-line installation |
| Operating medium | Inert gases Neutral fluids |
| Operating pressure | 0 MPa ... 1.6 MPa |
| Operating pressure | 0 bar ... 16 bar |
| Operating pressure | 0 psi ... 232 psi |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 2.5 |
| Degree of protection | IP43 |
| Media temperature | -20°C-60°C |
| Ambient temperature | -20°C-60°C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant |
| Position of connection | Centred, rear side |
| Pneumatic connection | G1/4 |
| Material in contact with the medium | Brass |
| Material screw-in stud | Brass |
| Material housing | ABS |
| Material screen | PS |
| Housing colour | Black |
| Product weight | 70 g |
| Note on operating and pilot medium | No acetylene No oxygen |
| Scale | Double scale Bar (outside scale) psi (inner scale) |
General technical data
There are many models . Please hurry to me!
