| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | ESBF-BS-80-100-32P |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD1000-1500 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |

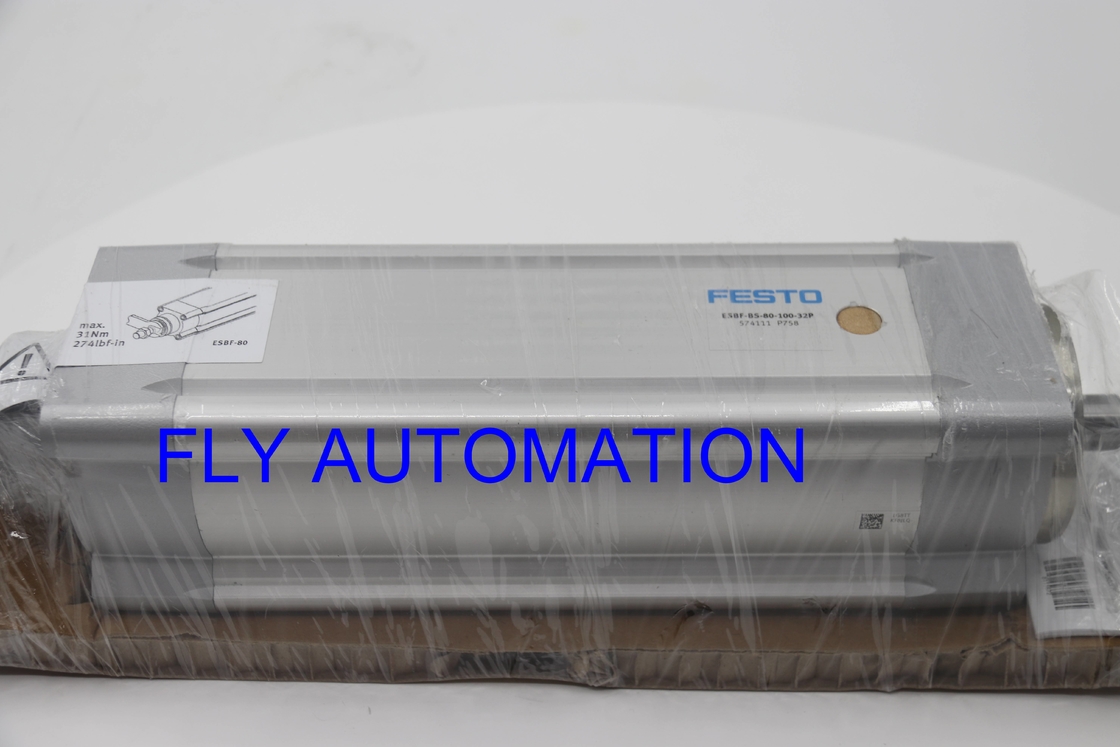

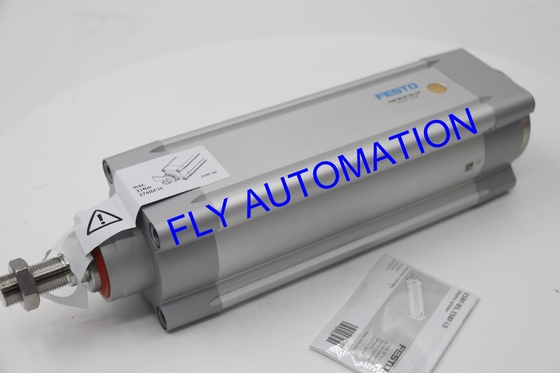

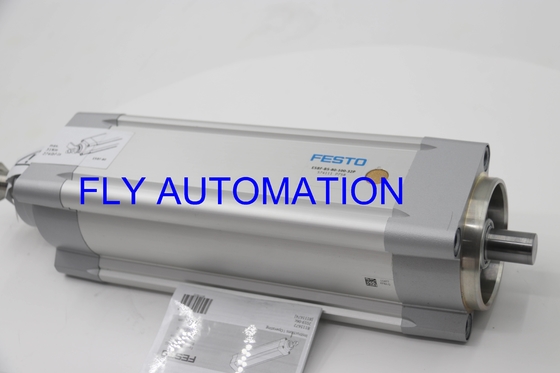

| Type: | ESBF-BS-80-100-32P | Part No: | 574111 |
|---|---|---|---|
| Brand: | FESTO | Size: | 80 |
| Piston Rod Thread: | M20x1.5 | Weight: | 7393 G |
| High Light: | Ball Screw Drive Electric Cylinder,574111 Pneumatic Air Cylinders,M20x1.5 Electric Cylinder |
||
About product
1.Available with ball screw drive (size 32 … 100) or lead screw (size 32 … 50).
2.Ball screw: with three spindle pitches for selecting the optimal force-speed ratio.
3.Optional: high corrosion protection, degree of protection IP65, food-safe (see www.festo.com/certificates/ESBF), piston rod extension.
Advantage
1.High corrosion protection.
2.Degree of protection IP65.
3.Extended piston rod.
4.NSF-H1 lubricant for food & beverage industry applications.
5.Extensive accessories.
Technical Data
| Size | 80 |
| Stroke | 100 mm |
| Piston rod thread | M20x1.5 |
| Spindle diameter | 32 mm |
| Spindle pitch | 32 mm/U |
| Based on standard | ISO 15552 |
| Mounting position | optional |
| Piston-rod end | Male thread |
| Type of motor | Servo motor |
| Position detection | Via proximity switch |
| Design | Electric cylinder with ball screw |
| Spindle type | Ball screw |
| Symbol | 00991941 |
| Protection against torque/guide | With plain-bearing guide |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C-60°C |
| Degree of protection | IP40 |
| Ambient temperature | 0°C-60°C |
| Basic weight for 0 mm stroke | 7393 g |
| Additional weight per 10 mm stroke | 155 g |
| Type of mounting | Via female thread Or accessories |
| Interface code, actuator | D80 |
| Note on materials | RoHS-compliant |
| Material cover | Cast aluminium, coated |
| Material piston rod | High-alloy stainless steel |
| Material screws | Galvanised steel |
| Material spindle nut | Rolled steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
General technical data
There are many models. Please hurry to me!
