Autel Repair Kit 1 1/2" M/D40 M/D20 AE2440 AE1440 Diaphragm TPE

Autel Repair Kit 1 1/2" M/D40 M/D20 AE2440 AE1440 Diaphragm TPE

  • Autel Repair Kit 1 1/2"  M/D40 M/D20 AE2440 AE1440  Diaphragm TPE
  • Autel Repair Kit 1 1/2"  M/D40 M/D20 AE2440 AE1440  Diaphragm TPE
  • Autel Repair Kit 1 1/2"  M/D40 M/D20 AE2440 AE1440  Diaphragm TPE
Autel Repair Kit 1 1/2"  M/D40 M/D20 AE2440 AE1440  Diaphragm TPE
Product Details:
Place of Origin: CHINA
Brand Name: Autel,OEM
Certification: CE,IOS9001
Model Number: M/D 40
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard Carton,and other special packing according to customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union,T/T,Paypal,credit card
Supply Ability: 2000 sets per month
Contact Now
Detailed Product Description
Material: TPE Color: White
Fitted Valve: DN40 Pressure Range: 1.5-8bar
Standard Temperature: -40℃ +100℃ Using Area: PULSE VALVE
Temperature Of Media: Medium Temperature Type: Diaphragm Membrane
Application: Repair Kits For Pulse Valve Standard Or Nonstandard: Standard
High Light:

air pump diaphragm kits

,

diaphragm pump repair kit

Autel Repair Kit 1 1/2" M/D 40 M/D 20 AE2440 AE1440 Diaphragm TPE

Description:


FeaturesValues
InPipe 1"1/2
OutPipe 1"1/2
Working Pressure1,5-8  bar
Standard Temperature Range-40 °C ; +100 °C
High Range Temparature-20 °C ; +200 °
Kv62 m^3/h
Weight2,6-2,8 kg
Protection LevelIP65

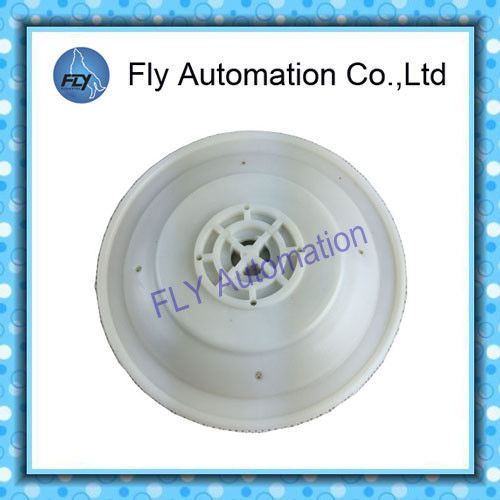

1. The diaphragm repair kits is for Italy Autel pulse jet valves AE2440I08

2. This repair kit has large air - outlet , so the air can get throgh very smoothly.

3. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.

4. Autel 1-1/2" DN40 membranes has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.

5. Its lifespan is about 1 million cycles.

6. Material: TPE

7. Color:White

Autel Repair Kit 1 1/2"  M/D40 M/D20 AE2440 AE1440  Diaphragm TPE 0Autel Repair Kit 1 1/2"  M/D40 M/D20 AE2440 AE1440  Diaphragm TPE 1


1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5 . Integral pilot operated valves satisfy all relevant EC directives

Structure:
Autel Repair Kit 1 1/2"  M/D40 M/D20 AE2440 AE1440  Diaphragm TPE 2



No.DescriptionMaterial
AOptional FittingNickeled Brass
1Screw M6SS
2WasherSS
3Cover  3/4"Die Cast Alu
4Diaphragm 3/4"TPE
5Screw M8SS
6WasherSS
7Cover  1" 1/2Die Cast Alu
8aSTD Diaphragm 1"1/2TPE
8bHT Diaphragm 1" 1/2 Kitfluororubber+PTFE
9Body  1" 1/2 IntegratedDie Cast Alu
10Clamp  O'RingNBR
11Body  Tank O'RingNBR
12Body  Pipe O'RingNBR
13Clamp  1" 1/2Die Cast Alu
14Pipe O'RingNBR
15Washer  1" 1/2Pa 6,6+ Ela
16Blow  Pipe 1" 1/2CS or SS


Competitive Advantage:


Our product features:Our Services Guarantee:
1) Competitive price1) Prompt respond (Reply with 24 hours)
2) Good quality2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging,3) Registration support.
4) Produce according to Customers’ instruction4) Photos/videos are available during production.
5) None delay shipment

5) Loading inspection, and send loading photos before shipment.



Quality Standards :
