ASCO PVG53B017MS Integrated Pilot Operated Spool Type Aluminium Body 1/4" NAMUR Solenoid Valve

ASCO PVG53B017MS Integrated Pilot Operated Spool Type Aluminium Body 1/4" NAMUR Solenoid Valve

  • ASCO PVG53B017MS Integrated Pilot Operated Spool Type Aluminium Body 1/4" NAMUR Solenoid Valve
  • ASCO PVG53B017MS Integrated Pilot Operated Spool Type Aluminium Body 1/4" NAMUR Solenoid Valve
  • ASCO PVG53B017MS Integrated Pilot Operated Spool Type Aluminium Body 1/4" NAMUR Solenoid Valve
  • ASCO PVG53B017MS Integrated Pilot Operated Spool Type Aluminium Body 1/4" NAMUR Solenoid Valve
ASCO PVG53B017MS Integrated Pilot Operated Spool Type Aluminium Body 1/4" NAMUR Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: ASCO
Certification: CE
Model Number: PVG53B017MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: PVG53B017MS Working Press: 2-10 Bar
Working Temp.: -25 °C To +60 °C Port Size: 1/4"
High Light:

pulse solenoid valve

,

pneumatic diaphragm valves

ASCO PVG53B017MS integrated pilot operated spool type aluminium body 1/4" NAMUR Solenoid valve

FEATURES

1. The "NAMUR" style spool valve comes with threaded port connection and Namur interface, while the "THREADED" style spool valve comes with threaded port
2. All the exhaust ports of this spool valve are connectable, providing better environmental protection, particularly recommended for sensitive areas such as clean

rooms as ell as applications in the pharmaceutical and food processing sectors
3. The valve offers environmental protection against the ingress of liquids, dusts or any other foreign matters (environmentally-protected construction)


Electrical characteristics

Coil insulation class F
Connector specification DIN 43650, 11 mm, industry, standard B (type 01)
or ISO 4400 (type 02)
Connector Spade plug (cable Ø 6-8 mm or Ø 6-10 mm)
Electrical safety IEC 335
Standard voltages DC (=) : 24V
AC (~) : 24V - 115V - 230V / 50 Hz


Pictures and details

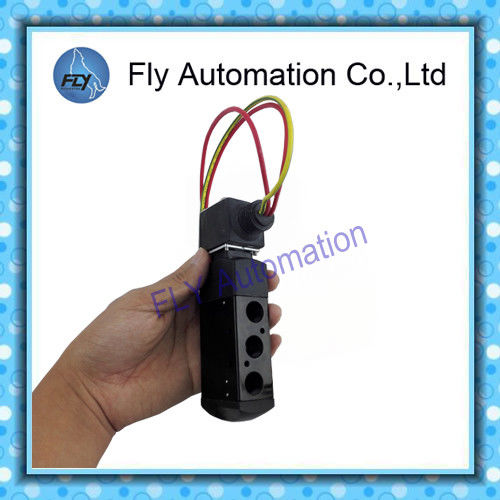

ASCO PVG53B017MS Integrated Pilot Operated Spool Type Aluminium Body 1/4" NAMUR Solenoid Valve 0

GENERAL
Differential pressure: 0 - 10 bar [1 bar =100 kPa]
Maximum viscosity: 65 cSt (mm2/s)
Response time: < 100 ms

MATERIALS IN CONTACT WITH FLUID
Body Aluminium: black anodized
End cover (spring): Glass-fi lled PA
lnternal parts Zamak: stainless steel, (POM), aluminium
Core and plugnut: Stainless steel
Sealings: NBR+PUR
Shading coil: Copper

INSTALLATION

1. Installation/maintenance instructions are included with each valve
2. The solenoid valves can be mounted in any position without affecting operation
3. Spool valve supplied with two interface plates with NAMUR mating surfaces. Depending on function (NC 3/2 or 5/2), position one of the two plates on the spool

valve body before installing onto actuator
4. It is necessary to connect pipes or fittings to the exhaust ports to protect the internal parts of the spool valve and its pneumatic
operator if used outside or in harsh environments (dusts, liquids, etc.)
5. Dowel pin (if necessary), bolts and gaskets are standard supplied
6. Threaded pipe connection identifier is: 8 = NPT (ANSI 1.20.3); G = G (ISO 228/1)



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage



Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.


After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
