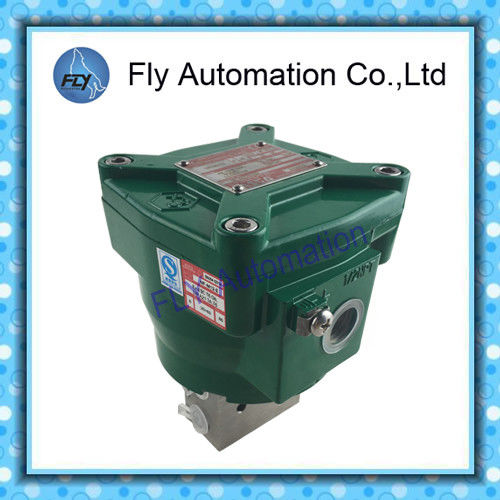

ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve

ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve

  • ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve
  • ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve
  • ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve
  • ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve
  • ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve
  • ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve
ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: ASCO
Certification: CE
Model Number: NF8327B102
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: NF8327B102 Working Press: 2-10 Bar
Working Temp.: -25 °C To +60 °C Port Size: 1/4“NPT
Coil Port Size: 1/2"NPT Material: Epoxy Coated Explosion-proof Coil
High Light:

pulse solenoid valve

,

pneumatic diaphragm valves

ASCO numatics NF8327B102 II 2G/D Ex d IIC T4 Gb / Ex tb IIIC Db Stainless steel Explosion proof solenoid valve

FEATURES
1. Solenoid valves with explosionproof operators NF or WSNF type for use in potentially explosive atmospheres according to ATEX Directive 2014/34/EU EU type examination certificate no.: LCIE 00 ATEX 6008 X IECEx Certificate of Conformity no.: IECEx LCI 07.0015X
2. Compliance with the Essential Health and Safety Requirements has been assured by compliance with the International and European Standards EN-IEC 60079-0, EN-IEC 60079-1 and EN-IEC 60079-31
3. The solenoid valves are recommended for pilot applications with high flow, wide pressure ranges and no minimum operating pressure
4. Special execution for low ambient and fluid temperatures
5. Manual Operators are optional including an under pressure removable type
6. The valves are certified according to IEC 61508 Functional Safety data and have SIL-3 capability (TüV & Exida certification)

Electrical characteristics

Coil insulation classF
Connector specificationDIN 43650, 11 mm, industry, standard B (type 01)
or ISO 4400 (type 02)
ConnectorSpade plug (cable Ø 6-8 mm or Ø 6-10 mm)
Electrical safetyIEC 335
Standard voltagesDC (=) : 24V
AC (~) : 24V - 115V - 230V / 50 Hz


Pictures and details
ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve 0

GENERAL
Differential pressure: 0 - 10 bar [1 bar =100 kPa]
Maximum viscosity: 65 cSt (mm2/s)
Response time: < 100 ms

MATERIALS IN CONTACT WITH FLUID
Body: Brass or stainless steel AISI 316L
Stem, core tube: Stainless steel
Core and plugnut: Stainless steel
Springs: Stainless steel
Seals & poppets: ? 5,7 mm: FPM or VMQ or (F)VMQ
? 12 mm: NBR or FPM or (F)VMQ

Rider ring PTFE
OTHER MATERIALS
Solenoid enclosure NF: Chromated aluminium, epoxy coated
WSNF: Stainless steel (AISI 316L)
Bonnet, cover screws NF: Steel (zinc plated)
WSNF: Stainless steel
Core tube: Stainless steel
Core and plugnut: Stainless steel

ELECTRICAL CHARACTERISTICS SAFETY CODE
Coil insulation class H (5,7 mm), F (12 mm) IECEx / q II 2 G Ex d IIC T6..T4
Coil connection Screw terminals IECEx / q II 2 D Ex t IIIC Db IP67 T85°C..T135°C
Electrical safety IEC 335
Standard voltages DC (=) : 24V - 48V
(Other voltages and 60 Hz on request) AC (~) : 24V - 48V - 115V - 230V / 50 Hz

ADDITIONAL OPTIONS
1. Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE-10
2. Explosionproof enclosures for use in zones 1/21-2/22, categories 2-3 to ATEX Directive 2014/34/EU (see “Explosionproof solenoids” section)
3. Electrical enclosures according to “NEMA” standards are available
4. Compliance with “UL”, “CSA” and other local approvals available on request
5. 3/8” pipe thread executions are available on request
6. Stainless steel exhaust protector for valves certified to IEC 61508 Functional Safety, catalogue number: 34600419 (G1/4) or 34600479 (G1/2)
7. Other pipe connections are available on request
8. Any ATEX approved cable entry device can be fitted in the 1/2” NPT threaded entry hole (M20 x 1.5 in option), refer to the nameplate for identification of the maximum cable temperature

INSTALLATION
1. The solenoid valves can be mounted in any position without affecting operation
2. Solenoid valves have 2 or 3 mounting holes in body
3. Pipe connection identifier is 8 = NPT (ANSI 1.20.3)
4. Installation/maintenance instructions are included with each valve

Dimension
ASCO Numatics NF8327B102 II 2G/D Ex D IIC T4 Gb / Ex Tb IIIC Db Stainless Steel Explosion Proof Solenoid Valve 1

typeprefix
option
catalogue numberABCDEFGHJKLMNXweight
01NFNF8327B001/011/101/201973013687352410254557323-54482.6
NF8327A605/607/609/649973016511554321025460100384054762.4
02WSNFWSNF8327B002/012/102/202973013687352410254557323-54482.6
WSNF8327A606/608/610/650973016511554321025460100384054763.8
