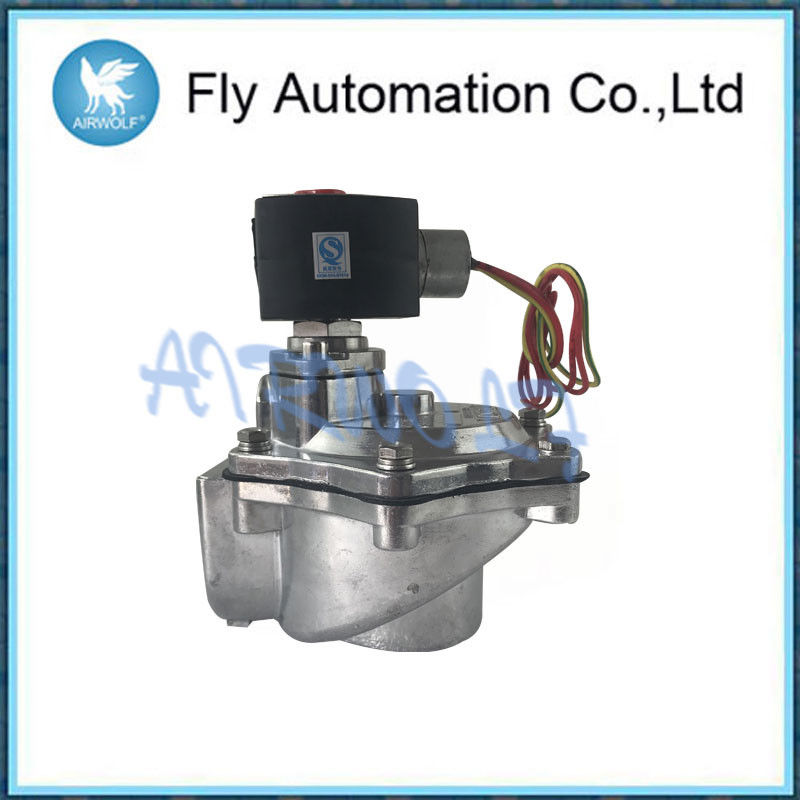

ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing

ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing

  • ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing
  • ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing
  • ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing
  • ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing
  • ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing
ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing
Product Details:
Place of Origin: China
Brand Name: ASCO
Certification: CE
Model Number: 8353J39
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model: 8353J39 Size: 1.5 Inch
Color: Silver Brand: ASCO
High Light:

pulse solenoid valve

,

pulse jet valve

ASCO 8353J39 1.5 inch ASCO Normal Colse angle type Aluminum NBR Silver Fast pulse valve

Nominal Temperature Ranges:

1.Ambient: AC constructions: 0°F to 185°F (-18°C to 85°C).150°F (66°C) maximum for valves with HYT diaphragm.Consult local sales office for DC constructions2.Fluids: 0°F to 185°F (-18°C to 85°C), except as noted.For temperatures to 300°F (149°C), specify FPM,
suffix “V” (except where noted).Refer to Engineering Section for details.

Solenoid Enclosures

1.Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.
2.Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9.



Description

1.Specially designed for reverse jet-type dust collector systems.

2.High flow Cv’s to 140 for effective bag cleaning.

3.High cycle life.

4.Fast opening/closing.



Construction

Valve Parts in Contact with Fluids
Body Aluminum
Seals NBR
Diaphragm NBR, HYT, or CR, as noted
Discs Discs NBR or PA, as noted



Electrical characteristics

Coil insulation class F
Connector specification DIN 43650, 11 mm, industry, standard B (type 01)
or ISO 4400 (type 02)
Connector Spade plug (cable Ø 6-8 mm or Ø 6-10 mm)
Electrical safety IEC 335
Standard voltages DC (=) : 24V
AC (~) : 24V - 115V - 230V / 50 Hz



Electrical



Standard Coil
and Class of
Insulation
Watt Rating and Power
Consumption
Spare Coil Part No.
AC General
Purpose
Explosionproof
Watts VA Holding VA Inrush AC AC
F 6.1 16 30 238210 238214
F 10.1 25 50 238610 238614
F 17.1 40 70 238610 238614
Standard Voltages: 24, 120, 240, 480 volts AC, 60 Hz (or 110, 220 volts AC,
50 Hz). Consult factory for DC voltage. Other voltages are available when
required.



Dimension



Orifice
Size
(ins.)
Cv
Flow
Factor
Min. Operating
Pressure
Differential
(psi)
Max. Operating
Pressure
Differential
(psi)
3/4 10.5 5 125
1 1/8 20 5 125
1 5/8 20 15 125
1 1/2 35 15 125
2 60 15 125
2 1/2 82 5 125
3 140 15 125

ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing 0ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing 1



ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing 2ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing 3ASCO 8353J39 Pulse Jet Solenoid Valve Normal Colse Angle Type Fast Opening / Closing 4
