Place of Origin: | China |
Brand Name: | FLY |
Certification: | CE |
Model Number: | CA1FN-80-120-XA0-XB6RP |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 1000 pcs |
Model Code: | CA1FN-80-120-XA0-XB6RP | Type: | Cylinder, Piston Cylinder |
---|---|---|---|
Working Medium: | Compressed Air | Weight: | 2kgs |
Export: | Ningbo/shanghai | ||
High Light: | pneumatic actuator cylinder,smc pneumatic cylinder |

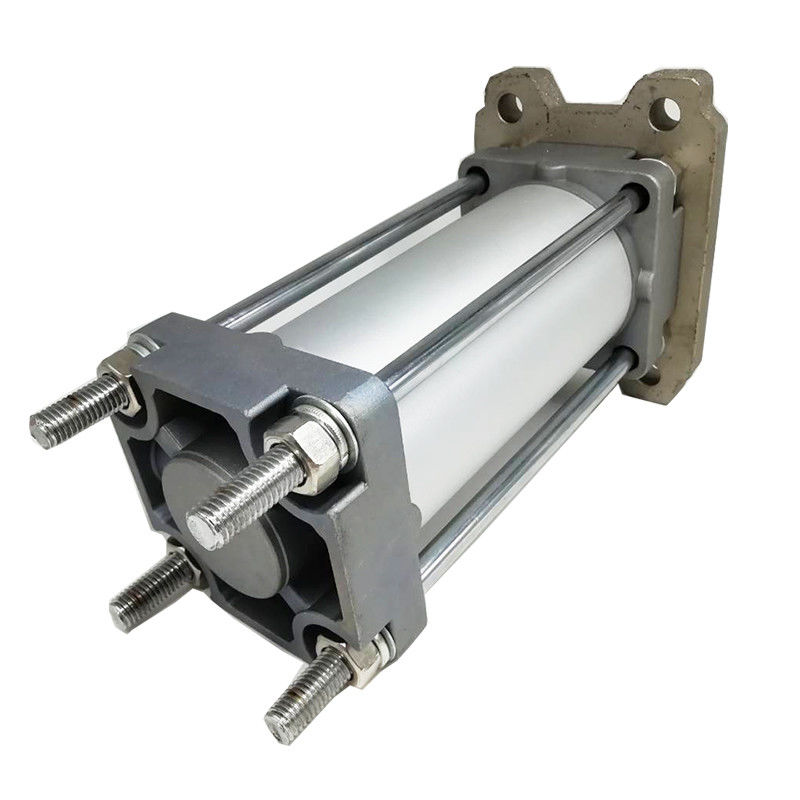

Air Cylinders Standard Double Acting Aluminium SC Series CA1FN-80-120-XA0-XB6RP hydraulic air cylinder
Feature
Model code | CA1FN-80-120-XA0-XB6RP |
Weight | 2kgs |
Material | Aluminum Alloy |
Type | Cylinder, Piston Cylinder |
Describtion:
① single acting cylinder: only one end has a piston rod, and air supply from one side of the piston can generate air pressure. The air pressure pushes the piston to generate thrust and extend, and returns by spring or self weight.
② double acting cylinder: supply air alternately from both sides of the piston, and output force in one or two directions.
③ diaphragm type cylinder: replace the piston with diaphragm, output the force only in one direction, and reset with spring. Its sealing performance is good, but its stroke is short.
④ impact cylinder: This is a new type of element. It converts the pressure energy of the compressed gas into the kinetic energy of the piston moving at high speed (10-20 M / s), so as to do work.
⑤ rodless cylinder: the general name of cylinder without piston rod. There are two categories: magnetic cylinder and cable cylinder.
The cylinder for reciprocating swing is called swing cylinder. The inner cavity is divided into two parts by the blade, and the air is supplied alternately to the two cavities. The output shaft swings, and the swing angle is less than 280 °. In addition, there are rotary cylinder, gas-liquid damping cylinder and stepping cylinder.
Function
1.External leakage is blocked, internal leakage is easy to control, and safety is safe to use.
2.Fast action, low power and light weight.
3.The solenoid valve has a closed cavity, and there are through holes at different positions, each hole is connected with a different oil pipe, the piston is in the middle of the cavity, and two electromagnets are on both sides.
4. High efficiency, high quality products.
Our Company
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
