Minimum Order Quantity:	50
Price:	USD8-15
Packaging Details:	carton,pallet or according to customers\' requirement
Delivery Time:	7 working days after receiving the customers\' payment
Payment Terms:	TT, Western Union,L/C
Supply Ability:	150000 PCS per month

Detailed Product Description

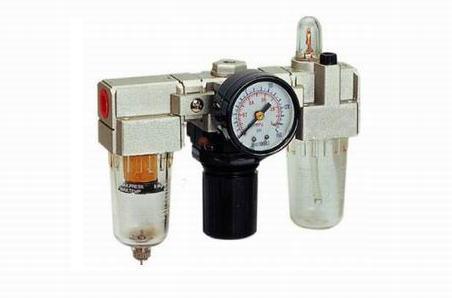

Air Combination

1.We have gained the CE and ISO 9001

2.We have good after-sales service.

3.Our products are high quality and competitive price.

4.Detailed description:

Fluid		JAC1000-M5	JAC2000-01	JAC2000-02	JAC2500-02	JAC2500-03	JAC3000-02
Orifice size		90	500	500	1500	1500	2000
Port size		M5	1/8	1/4	1/4	3/8	1/4
Filtering grade		25 um
Max.pressure		1.0MPa
Proof pressure		1.5MPa
Temperature		5~60^oC
Pressure range		0.05~0.7MPa	0.05~0.85MPa
Recommend lubricant		ISO VG 32
Material		Polycarbonate
Bowl cover		Not available			Available
Drain Function		Differential drain			Differential drain,Automatic drain
Valve type		With overflow
Constitute	Filter	JAF1000-M5	JAF2000-01	JAF2000-02	JAF3000-02	JAF3000-02	JAF3000-02
	Regulator	JAR1000-M5	JAR2000-01	JAR2000-02	JAF3000-02	JAR3000-02	JAR3000-02
	Lubricator	JAL1000-M5	JAL2000-01	JAL2000-02	JAL3000-02	JAL3000-02	JAL3000-02
