| Place of Origin: | China |
| Brand Name: | FESTO |

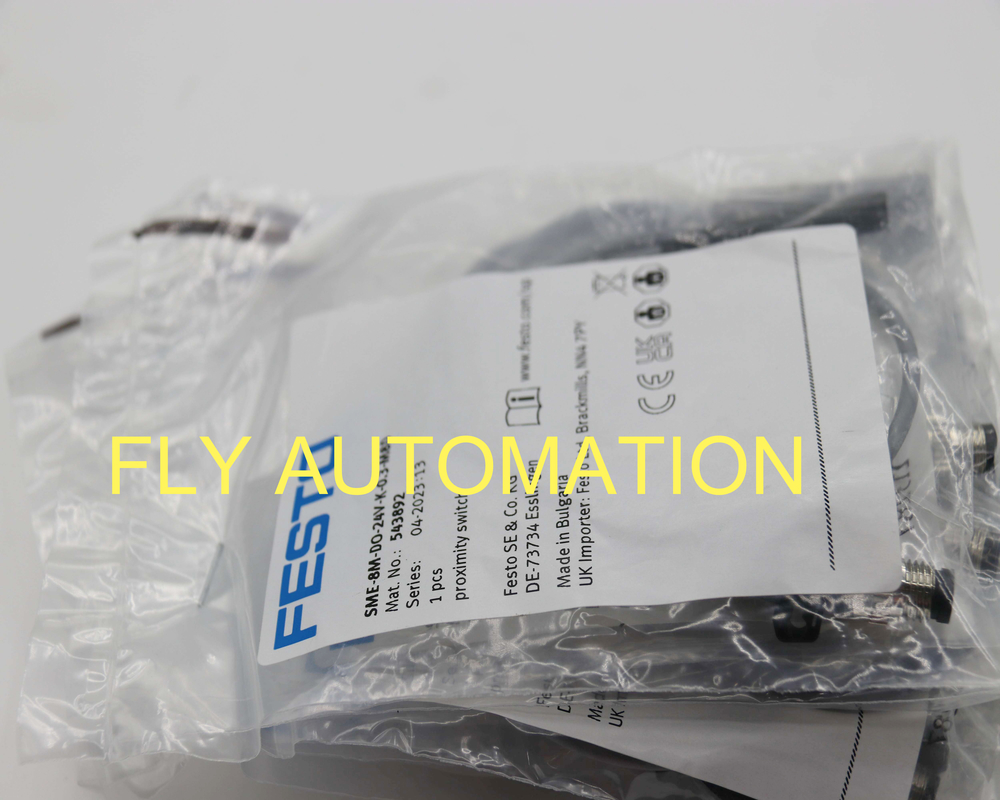

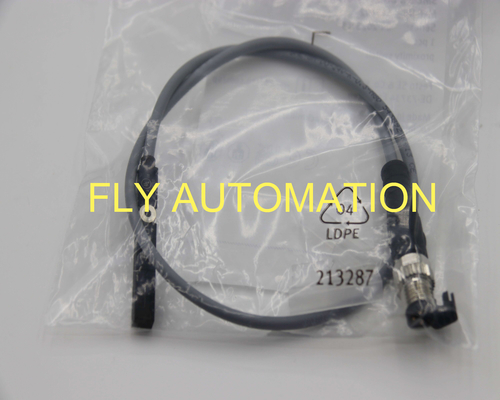

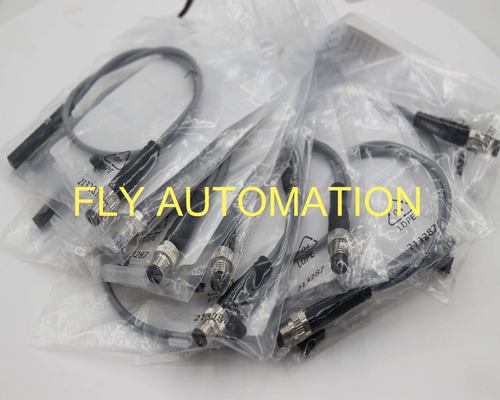

| Model Number: | SME-8M-DO-24V-K-0.3-M8D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Type: | SME-8M-DO-24V-K-0.3-M8D | Brand: | FESTO |
|---|---|---|---|
| Part No: | 543892 | Ambient Temperature: | -40°C-70°C |
| Connection Outlet Orientation: | In-line | Degree Of Protection: | IP65 IP68 |
| High Light: | 543892 Festo Poximity Sensor,Pneumatic System Festo Sensor |
||
About product
Switching status indication:Yellow LED
Switching output:Contacting, bipolar
Overload protection:Not available
Technical Data
| Approval | RCM trademark c UL us listed (OL) |
| Special characteristics | Oil resistant |
| Note on materials | RoHS-compliant Free of halogen |
| Measuring principle | Magnetic reed |
| Ambient temperature | -40°C-70°C |
| Switching output | Contacting, bipolar |
| Short circuit current rating | no |
| Overload protection | Not available |
| Reverse polarity protection | no |
| Connection outlet orientation | In-line |
| Material cable sheath | TPE-U(PUR) |
| Switching status indication | Yellow LED |
| Ambient temperature with moving cable | -5°C-70°C |
| Degree of protection | IP65 IP68 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
Type codes
There are many models . Please contact me!
