| Place of Origin: | China |
| Brand Name: | FESTO |

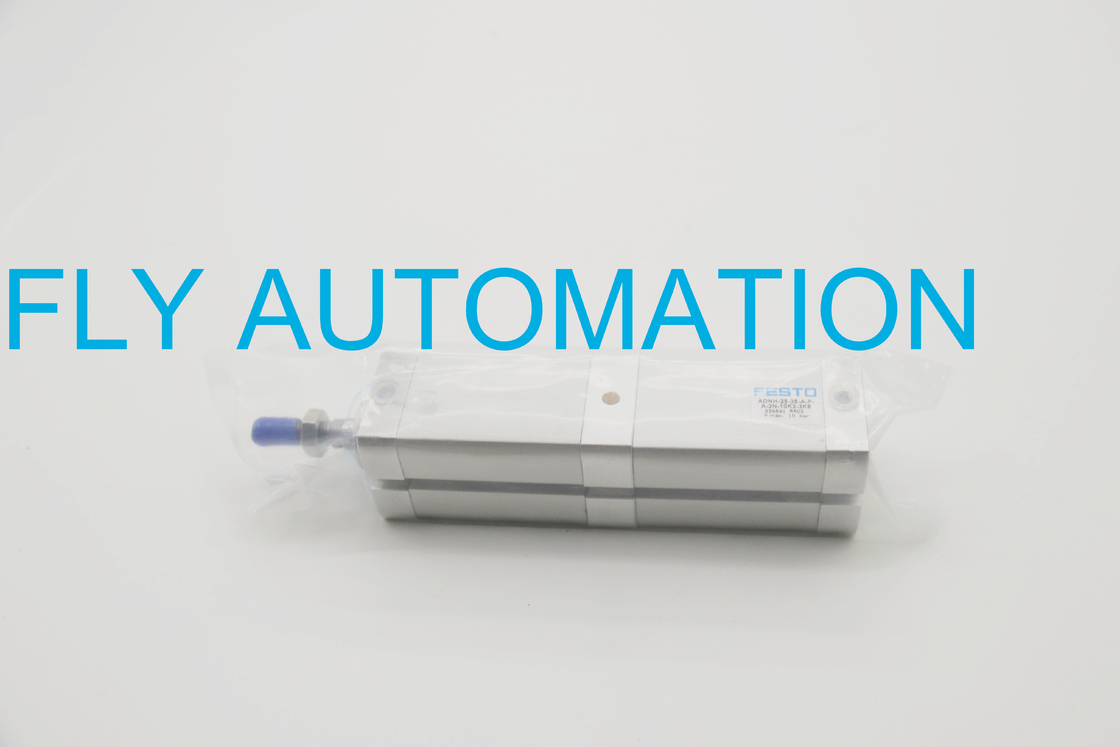

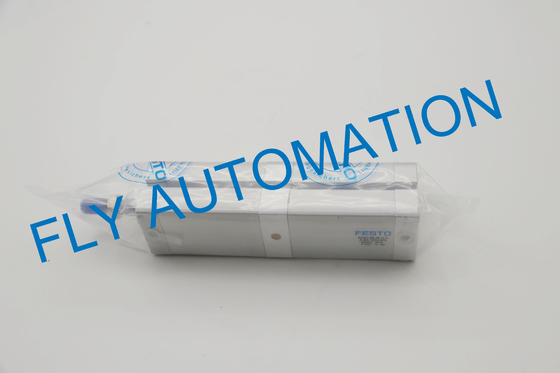

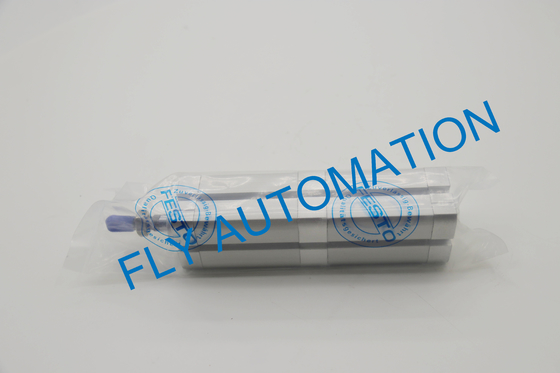

| Model Number: | ADNH-25-35-A-P-A-2N-10K2-3K8 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-80 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Brand: | FESTO | Part No: | 539691 |
|---|---|---|---|
| Type: | ADNH-25-35-A-P-A-2N-10K2-3K8 | Based On Standard: | ISO 21287 |
| Cushioning: | Elastic Cushioning Rings/plates At Both Ends | Mode Of Operation: | Double-acting |
| High Light: | 539691 Festo High Force Cylinder,Pneumatic High Force Cylinder |
||
About product
A maximum of 4 cylinders can be combined
Owing to the internal compressed air distribution, a total of just 2 connections is required to pressurise all cylinders.
The force of the return stroke corresponds to that of a single cylinder with corresponding piston diameter.
Operation with external limit stop only. The cylinder should not advance to the forward end position.
Technical Data
| Stroke | 5 mm ... 150 mm |
| Piston diameter | r25 mm |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Cable designation | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991223 00991246 00991267 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Anodised |
| Material seals | TPE-U(PU) |
| Material housing | Wrought aluminium alloy Anodised |
| Material piston rod | High-alloy steel |
There are so many models . Please contact with me!
