3 Position 5 Port Pneumatic Manual Valve , Silver Metal Air Operated Valve

3 Position 5 Port Pneumatic Manual Valve , Silver Metal Air Operated Valve

  • 3 Position 5 Port  Pneumatic Manual Valve , Silver Metal Air Operated Valve
  • 3 Position 5 Port  Pneumatic Manual Valve , Silver Metal Air Operated Valve
  • 3 Position 5 Port  Pneumatic Manual Valve , Silver Metal Air Operated Valve
  • 3 Position 5 Port  Pneumatic Manual Valve , Silver Metal Air Operated Valve
  • 3 Position 5 Port  Pneumatic Manual Valve , Silver Metal Air Operated Valve
3 Position 5 Port  Pneumatic Manual Valve , Silver Metal Air Operated Valve
Product Details:
Place of Origin: China
Brand Name: Techno
Certification: ISO9001,CE
Model Number: XQ250630
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs/month
Contact Now
Detailed Product Description
Model: Mechanical Valve Operating Pressure: 0~ 1.0 MPa
Temperature Characteristics: -10 +60 C Service Life: 10 Million Times
Material: Stainless Steel Port Size: G1/4
High Light:

pneumatic mechanical valve

,

foot pedal valve

Techno XQ Series 3/2 way air signal operating stainless steel G1/4 mechanical valve



Function

Pneumatic mechanical valve is a common pipe switch in automatic control system,which is widely used in printing,dyeing,bleaching,video,washing,chemical,water treatment,medicine and other automatic mechanical equipment,with the characteristics of no water stroke,no noise and reliable sealing performance.



Features

XQ Series

2 Position 3,5-Port & 3Position 5-Port Air Operated Valve.
The position change is made by the air signal operating the spool.
Double air operated valve has memory function.
Air operated valve is extensively used in controlling cylinders,other actuators and pneumatic components.



Specification

Model Type Port size Nominal dia.
mm
Control
pressure
Operating
pressure
Switching
time
Fluid
temperatur
Ambient
temperature
Service
life
XQ230430 3/2 G1/8 4 0.2~1.0MPa 0~ 1.0 MPa 30ms -10 +60 C 5~60℃ 10
million times
XQ230630 G1/4 6
XQ230830 G1/4 8 0.15~1.0MPa
XQ231030 G3/8 10
XQ231530 G1/2 12
XQ250430 5/2 G1/8 4 0.2~1.0MPa
XQ250630 G1/4 6
XQ250830 G1/4 8 0.15~1.0MPa
XQ251030 G3/8 10
XQ251530 G1/2 12
XQ230431 3/2 G1/8 4 0.2~1.0MPa
XQ230631 G1/4 6
XQ230831 G1/4 8 0.15~1.0MPa
XQ231031 G3/8 10
XQ231531 G1/2 12
XQ250431 5/2 G1/8 4 0.2~1.0MPa
XQ250631 G1/4 6
XQ250831 G1/4 8 0.15~1.0MPa
XQ251031 G3/8 10
XQ251531 G1/2 12
XQ350431.0 5/3
closed
center
G1/8 4 0.25~1.0MPa
XQ350631.0 G1/4 6
XQ350431.1 5/3
exhaust
center
G1/8 4 0.25~1.0MPa
XQ350631.1 G1/4 6
XQ350431.2 5/3
pressure
center
G1/8 4 0.25~1.0MPa
XQ350631.2 G1/4 6



Pictures details

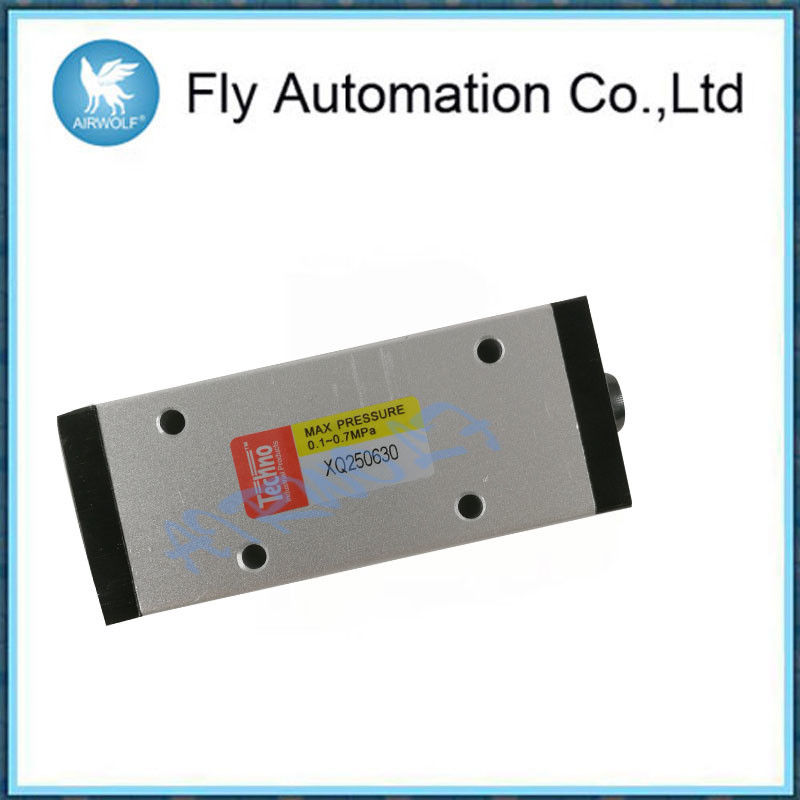

3 Position 5 Port  Pneumatic Manual Valve , Silver Metal Air Operated Valve 0

3 Position 5 Port  Pneumatic Manual Valve , Silver Metal Air Operated Valve 1



Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.

After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Serves time
0:00 - 23:59
From Monday to Sunday
