| Brand Name: | FESTO |

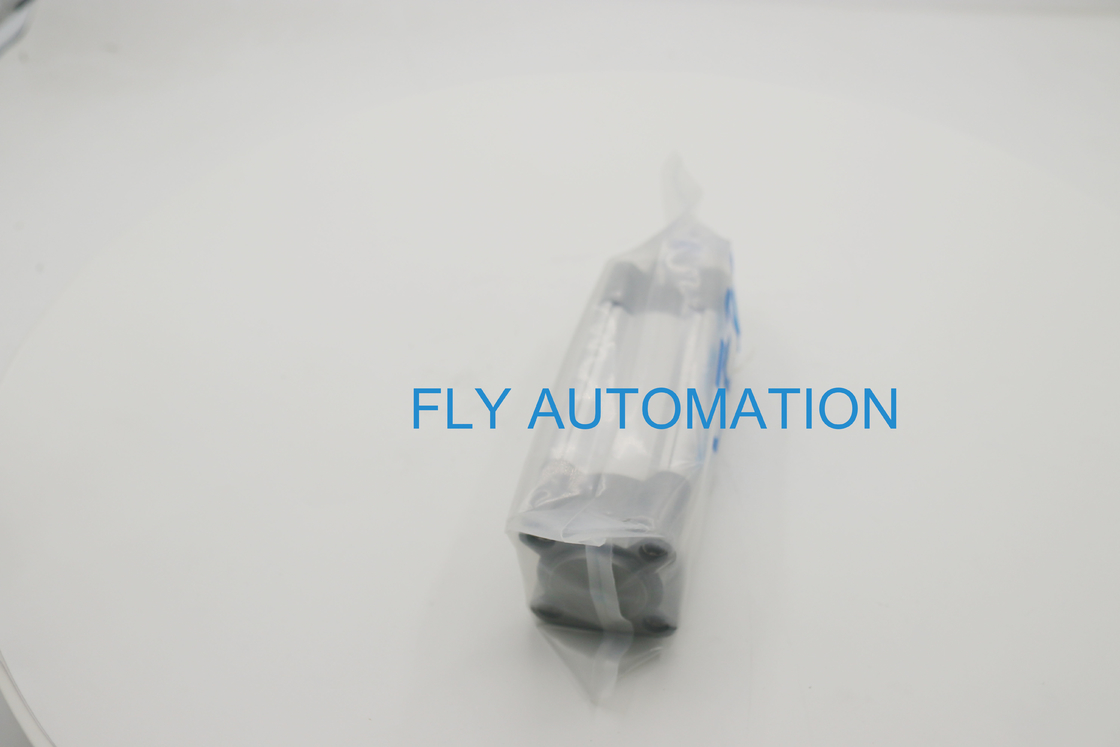

| Model Number: | DSBC-40-60-PPVA-N3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-70 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1500 pcs per month |
| Brand: | FESTO | Type: | DSBC-40-60-PPVA-N3 |
|---|---|---|---|
| Part No: | 2123224 | Symbol: | 00991235 |
| Ambient Temperature: | -20°C-80°C | Cushioning Length: | 19mm |
| High Light: | Pneumatic Double Acting ISO Cylinder,2123224 Pneumatic Air Cylinders,19mm ISO Cylinder |
||
About product
Mounting position:optional
Design:Piston Piston rod Profile barrel
Symbol:00991235
Corrosion resistance class CRC:2 - Moderate corrosion stress
LABS (PWIS) conformity:VDMA24364-B1/B2-L
Technical Data
| Stroke | 60 mm |
| Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 19 mm |
| Basic weight for 0 mm stroke | 740 g |
| Additional weight per 10 mm stroke | 37 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material coverDie-cast aluminium, coated | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material pistonWrought aluminium alloy | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | POM |
| Material collar screws | Galvanised steel |
General technical data
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
There are so many models. Please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
