| Brand Name: | FESTO |
| Model Number: | DNC-40-125-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD30-50 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 8-12working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1100 pcs per month |

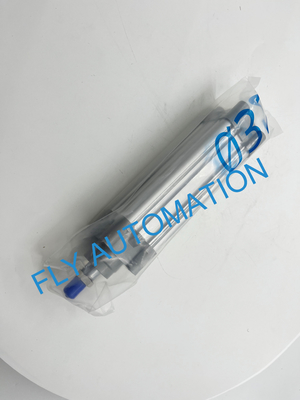

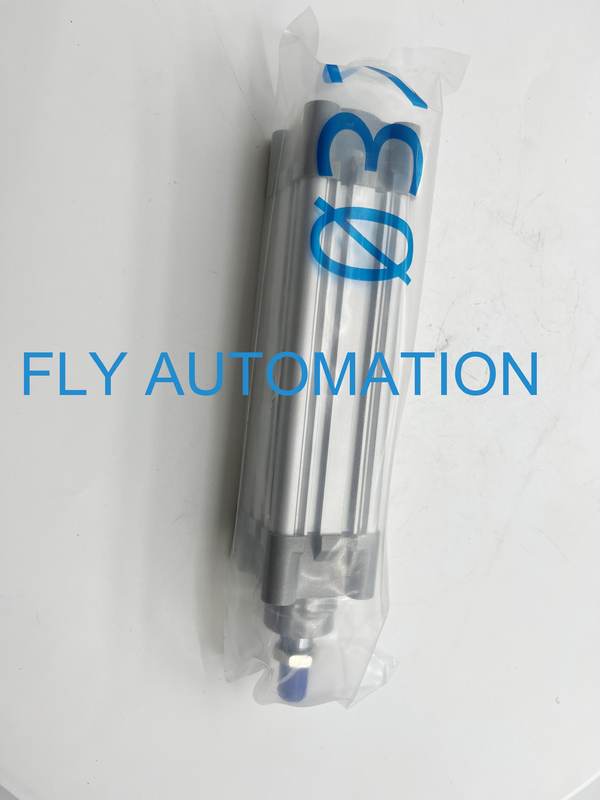

| Type: | DNC-40-125-PPV-A | Part No: | 163342 |
|---|---|---|---|
| Brand: | FESTO | Pneumatic Connection: | G1/4 |
| Material Cover: | Die-cast Aluminium Coated | Material Cylinder Barrel: | Wrought Aluminium Alloy Smooth Anodised |
| High Light: | Die Cast Aluminium FESTO ISO Cylinder,163342 Pneumatic Air Cylinders,DNC-40-125-PPV-A |
||
About product
Technical Data
| Stroke | 125 mm |
| Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 800 g |
| Additional weight per 10 mm stroke | 45 g |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium Coated |
| Material seals | TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
There are many types of models, welcome to enquiry.
