| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | QS-8-4 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD1-2 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 8000 pcs per week |
| Specifications: | QS-8-4 | Order No: | 130606 |
|---|---|---|---|
| Brand: | FESTO | Size: | Standard |
| Design: | Push-pull Principle | Material Tubing Clamp Component: | High-alloy Stainless Steel |
| High Light: | 130606 Pneumatic Tube Fittings,Push In Connector QS-8-4,Pneumatic Tube PBT Connector |
||
About product
1.Easily select the right connector.
2.The convenient quick plug connector.
3.Festo provides a reliable solution for every connection.
Product Technical Data
| Size | Standard |
| Nominal size | 2.8 mm |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Product weight | 7.2 g |
| Pneumatic connection, port 1 | For tubing outer diameter of 8 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 4 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |

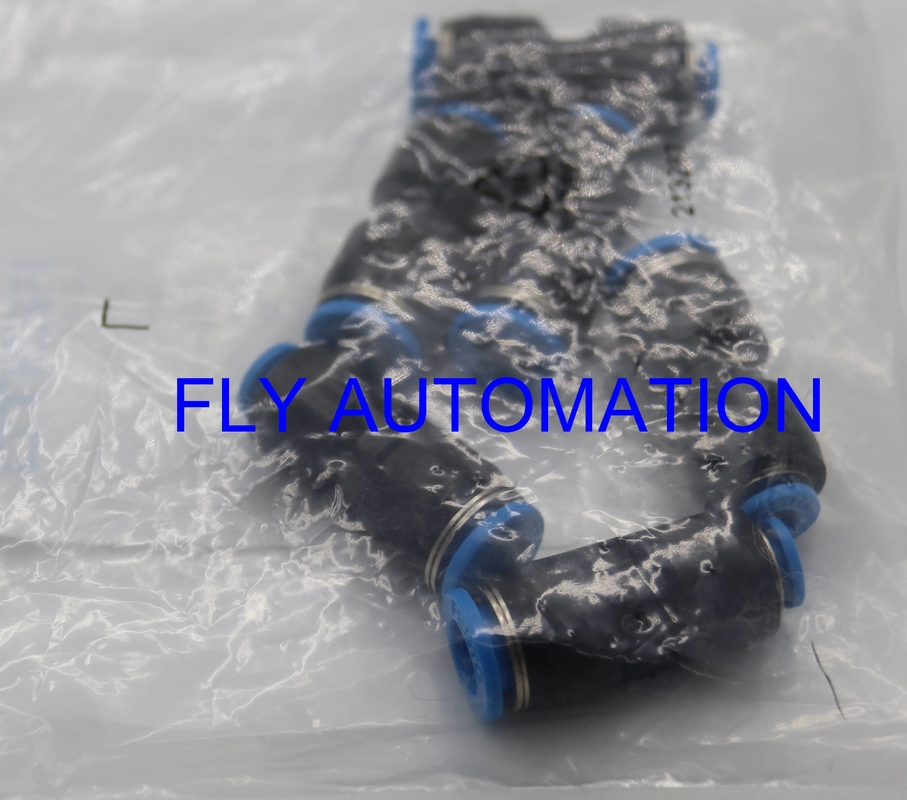

Package picture
There are so many models, best price and fast delivery time. Welcome to enquiry.
