1271526 Diaphragm Repair Kit For Norgren G3" Tank Valve 8392900.8171

TPE diaphragm repair kit 1271526 for Norgren G3" Tank Valve 8392900.8171

2/2-way valves DN 80
For air
Solenoid pilot operated
For tank mounting
Operating pressure 0.4 to 7.5 bar

Ordering Code:  1271526

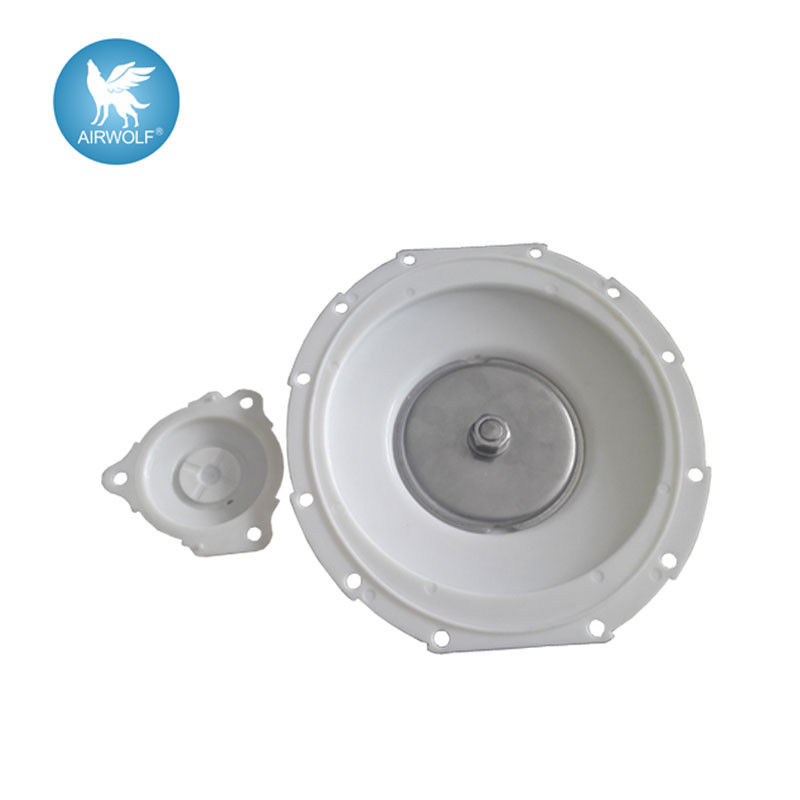

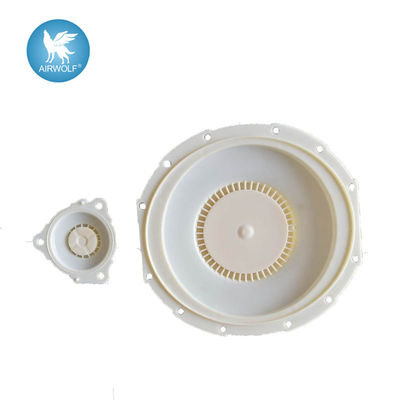

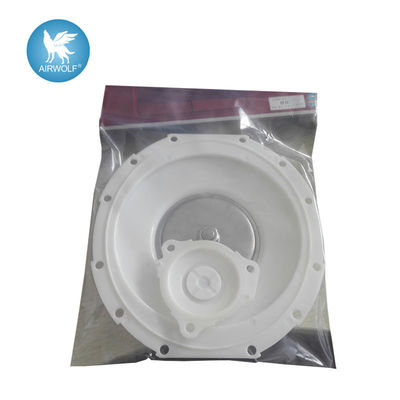

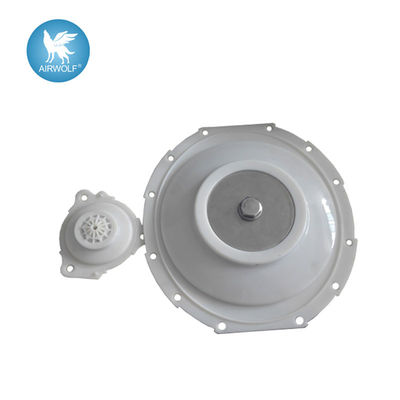

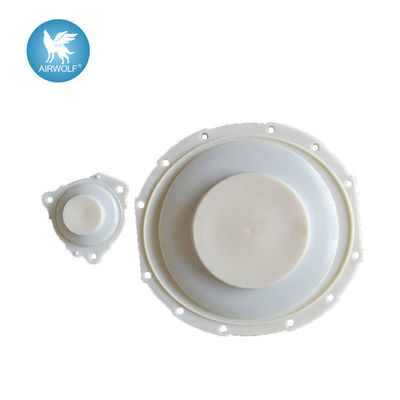

Photos Show:

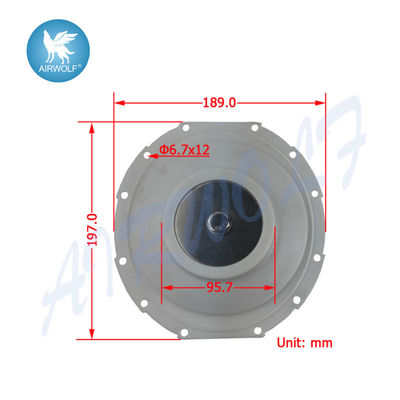

Drawing

Description (standard valve)
Switching function: normally closed
Flow direction: determined
Coil gas temperature: –40 °C to max. +85 °C
Ambient temperature: –20 °C to max. +85 °C
Mounting position: optional, preferably solenoid
vertical on top

Material
Body: Aluminium
Seat seal: TPE
Internal parts: TPU

Features
High flow rate •
All internal components captive •
Simple compact design •
Solenoid interchangeable without tools •
Integrated silencer

The heart of the filter valve is the TPE diaphragm
The TPE diaphragm is the key component in any filter valve de- signed to provide short pressure decay times and high kv-values.
Service life is 4-5 times longer than that of comparable, conven- tional fabric diaphragms. Our product filter systems eliminate the
danger that rubber particles could enter the product. The TPE material used has FDA approval (Food and Drug Administration, USA)
Temperature range - fluid temperature
Standard diaphragm: –40 °C to 85 °C
For higher temperatures: –10 °C to 140 °C

1 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping

2 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

3 . Integral pilot operated valves satisfy all relevant EC directives

4 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

5 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

Competitive Advantage

After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
