| Material: | Aluminium | Working Pressure: | 0.1~0.8MPa |
|---|---|---|---|
| Working Temperature: | -10 °C To +80 °C | Proof Pressure: | 1.05MPa |
| Cushion: | Rubber Bumper | ||
| High Light: | pneumatic actuator cylinder,smc pneumatic cylinder,Single Rod Pneumatic Air Cylinders |
||

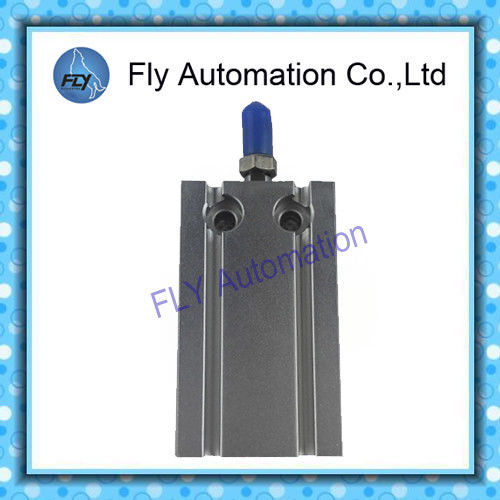

CU16NiI - 15S SMC Pneumatic Free Mount Cylinder Single Rod Double Acting Cylinder CU 16*15
Ordering Code: CU16NiI-15S, Any other types please contact freely.
Order code
Specifications
| Bore size (mm) | 6 | 10 | 16 | 20 | 25 | 32 |
| Fluid | Air | |||||
| Proof pressure | 1.05 Mpa | |||||
| Maximum operating pressure | 0.7 Mpa | |||||
| Minimum operating pressure | 0.12 Mpa | 0.06 Mpa | 0.05 Mpa | |||
| Ambient and fluid temperature | Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) | |||||
| Lubrication | Non-lube | |||||
| Piston speed | 50 to 500 mm/s | |||||
| Cushion | Rubber bumper | |||||
| Rod end thread | Male thread | |||||
| Stroke length tolerance | 0~+1.0 mm | |||||
Standard stroke
| Bore size (mm) | Standard stroke (mm) |
| 6, 10, 16 | 5, 10, 15, 20, 25, 30 |
| 20, 25, 32 | 5, 10, 15, 20, 25, 30, 40, 50 |
Structures
1. Φ6, Φ10
2. Φ15~Φ32
| Bore size (mm) | A | A' | B | C | D | E | GA | GB | H | J | K | L | R | T |
| 7 | - | 13 | 22 | 3 | 7 | 15 | 10 | 13 | 10 | 17 | - | 7 | 6 depth 4.8 | |
| 10 | 10 | - | 15 | 24 | 4 | 7 | 17 | 10 | 16 | 11 | 18 | - | 9 | 6 depth 5 |
| 16 | 11 | 13 | 20 | 32 | 6 | 7 | 17 | 12 | 16 | 14 | 25 | 5 | 12 | 7.6 depth 6.5 |
| 20 | 12 | 14 | 26 | 40 | 8 | 9 | 19 | 13 | 19 | 16 | 30 | 6 | 16 | 9.3 depth 8 |
| 25 | 16 | 18 | 32 | 50 | 10 | 10 | 22 | 13 | 23 | 20 | 38 | 8 | 20 | 9.3 depth 9 |
| 32 | 20 | 22 | 40 | 62 | 12 | 11 | 23 | 13 | 27 | 24 | 48 | 10 | 24 | 11 depth 11.5 |
| Bore size (mm) | Without auto switch | With auto switch | MM | NN | P | Q | QA | ||
| S | Z | S | Z | ||||||
| 6 | 33 | 46 | 33 | 46 | M3 x 0.5 | M3 x 0.5 depth 5 | 3.2 | — | — |
| 10 | 36 | 52 | 36 | 52 | M4 x 0.7 | M3 x 0.5 depth 5 | 3.2 | — | — |
| 16 | 30 | 46 | 40 | 56 | M5 x 0.8 | M4 x 0.7 depth 6 | 4.5 | 4 | 2 |
| 20 | 36 | 55 | 46 | 65 | M6 x 1.0 | M5 x 0.8 depth 8 | 5.5 | 9 | 4.5 |
| 25 | 40 | 63 | 50 | 73 | M8 x 1.25 | M5 x 0.8 depth 8 | 5.5 | 9 | 4.5 |
| 32 | 42 | 69 | 52 | 79 | M10 x 1.25 | M6 x 1.0 depth 9 | 6.6 | 14 | 4.5 |
Product show
Valve Design
The design of HYDAC ball valves is based on the “floating ball” principle which allows the ball to turn freely between the ball seals. A positive seal is attained by fluid pressure acting on the upstream surface of the ball and producing a constant uniform contact between the downstream ball seal and the ball. The ball is operated by a sealed spindle with a projecting square end to which the control handle or optional actuator is attached. Ball valves are intended to be used as on/off flow control devices and are not to be used to throttle fluid flow. The valves should always be either fully open or closed.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. Also we can send by your delivery acount if you want.
3. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Competitive Advantage
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging, | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
