| Place of Origin: | China |
| Brand Name: | FLY |
| Certification: | CE |
| Model Number: | BQSLH-20 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
| Delivery Time: | within 1-7working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs /month |
| Model Code:: | BQSLH-20 | Port Size:: | 3/4inch |
|---|---|---|---|
| Body Material:: | Stainless Steel304 | Name:: | High Pressure Filter |
| Weight:: | 1.2kgs | MOQ:: | 1 Piece |
| Temperature Of Media:: | -25~80°C | Pressure Range:: | 0.1-4Mpa |
| Media:: | Filtered Compressed Air | Standard:: | Yes |
| High Light: | 3/4" Air Compressor Filter,Air Compressor Filter BQSLH-20 |
||

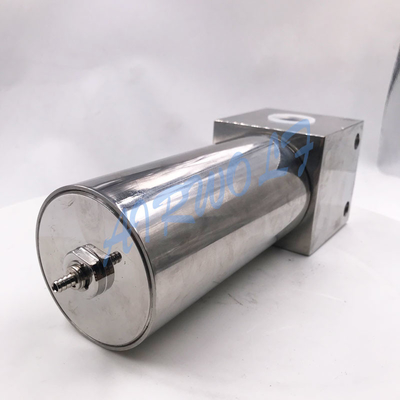

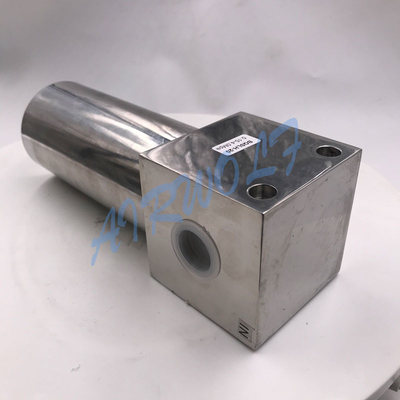

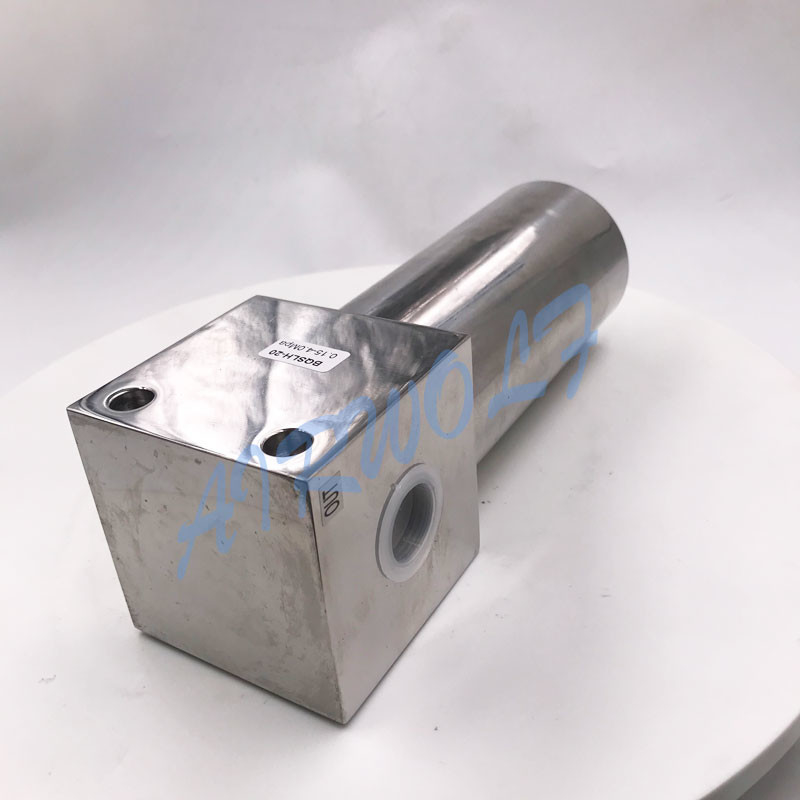

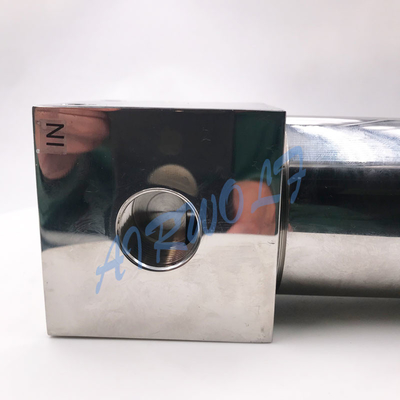

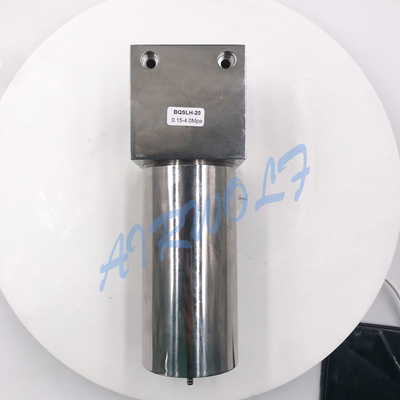

BQSLH-20 DN20 Silver SS304 40Bar Air Filter 3/4" Air Compressor Filter
Description
High pressure filter, compressed air high pressure filter, high pressure oil-water separator, high pressure air filter, air source high pressure filter, instrument air high pressure filter.
Application
1. The air source processor has the advantages of simple structure, light weight and simple installation and maintenance. The medium is air, which is not easy to burn compared with hydraulic medium, so it is safe to use.
2. The working medium is inexhaustible air, and the air itself costs no money. The exhaust treatment is simple, does not pollute the environment and has low cost.
3. The adjustment of output force and working speed is very easy. The action speed of the cylinder is generally less than 1m / s, which is faster than that of the hydraulic and electrical modes.
4. High reliability and long service life. The effective action times of electrical components are about one million times, while the service life of general solenoid valves is more than 30 million times, and some valves with good quality are more than 200 million times.
5. Using the compressibility of air, energy can be stored to realize centralized gas supply. Energy can be released in a short time to obtain high-speed response in intermittent motion. Buffering can be realized. Strong adaptability to impact load and overload. Under certain conditions, the pneumatic device can have self holding capacity.
Ordering Code
| Model: | BQSLH-08 | BQSLH-15 | BQSLH-20 | BQSLH-25 | BQSLH-32 | BQSLH-40 | BQSLH-50 |
| Operating fluid : | AIR | ||||||
| Joint pipe bore: | G1/4 | G1/2 | G3/4 | G1 | G1-1/4 | G1-1/2 | G2 |
| Range of adjustable pressure : | 0.05MPa~3.5MPa | ||||||
| Max. input pressure : | 4Mpa | ||||||
| Operating temperature range: | -25~80°C | ||||||
Feature
|
Model code
|
BQSLH-20
|
|
Material
|
stainless steel304
|
|
Port size
|
1/2 inch
|
|
Weight
|
1.8kgs
|
|
Used
|
It reduces the high liquid pressure in the front line of the valve to the level required in the back line of the valve.
|
Fault phenomenon: unstable pressure fluctuation
Failure analysis:
1. Air is mixed into the oil. Damping holes are sometimes blocked
3. The roundness of the spool and the valve body exceeds the specified value, causing the valve to become stuck
4. The spring is deformed or stuck in the spool, making the slide move difficult or the spring is too soft
5. The steel ball is not round, the steel ball is not well matched with the valve seat or the poppet valve is not installed correctly.
Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which we are customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNT will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
Function
1. Reduced water waste and rationalized system flow distribution, improved system layout and operating conditions
2.Simple structure and easy disassembly.
3. Reliable quality and low failure rate.
FAQ:
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance.
Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q.What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We
will offer replacement without extra Charger(including shipping fee)After we Receive
the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers
or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the
replaced item.
