Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China TaiWan |
Brand Name: | UNID |
Certification: | ISO Standand |
Model Number: | UW-25 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | USD35 Per Each |
Packaging Details: | Box, Carton 13X8.5X6 CM |
Delivery Time: | 7 working Days |
Payment Terms: | T/T, Western Union, MoneyGram Paypal |
Supply Ability: | 50 PCS Per Week |
PIPE SIZE: | 1" | CV: | 24 |
---|---|---|---|
ORIFICE: | 25mm | Operating Pressure Kgf I Cm' (bar): | Water 0~5 |
Weight (kg): | 1.7 | Dimension (mm): | L100 H112 D48 |

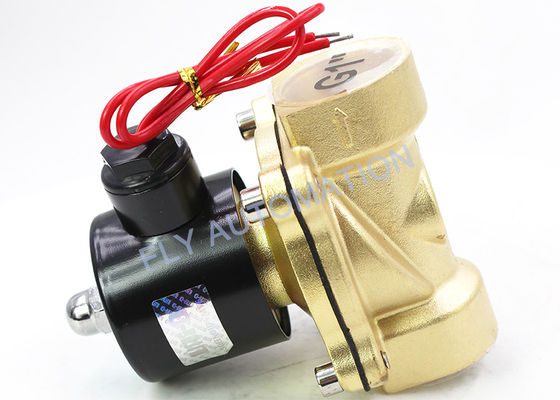

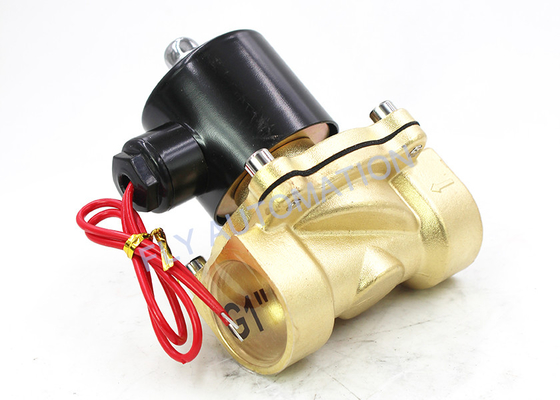

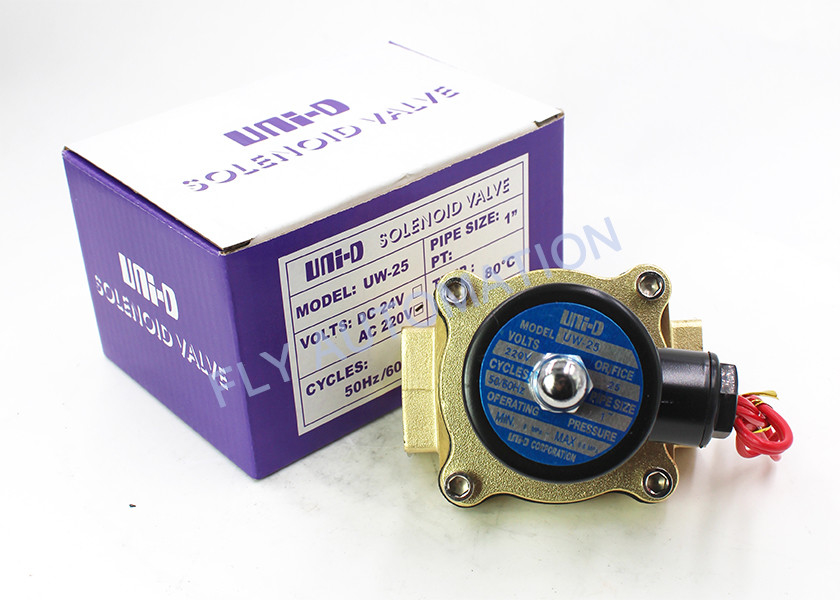

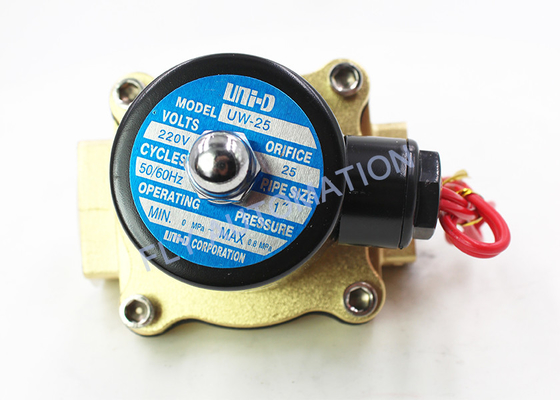

High Light: | UW-25 Solenoid Valve Water Flow Control,Multiplex Solenoid Valve Water Flow Control |
PRODUCT DESCRIPTION
1. UW series is direct, multiplex, connected diaphragm, conductive and normally closed (NC)
2/2 way solenoid valve.
2. Able to be operated directly under low pressure
3. Availability of fluid type: water, air, light oil
4. Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C)
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
3. AC voltage tolerance:土10%; DC voltage tolerance:土1%
4. It should be installed horizontally; vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature; solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst
MODEL | Waterproof DIN/flying lead Coil | NASS DIN Coil (IP65) | PIPE SIZE | CV | ORIFICE | FLUID TEMP | Operating Pressure kgf / cm (bar) | High Pressure Type | Dimension (mm) | Weight (kg) | |||||
Water | Air | Light oil | Water | Air | L | H | D | ||||||||
UW-10 | ● | ● | 3/8" | 4.5 | 1 5mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 70 | 100 | 48 | 1.01 |
UW-15 | ● | ● | 1/2" | 4.5 | 1 5mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 70 | 100 | 48 | 1 |
UW-20 | ● | ● | 3/4" | 8.6 | 20mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 73 | 107 | 48 | 1.14 |
UW-25 | ● | ● | 1" | 24 | 25mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 100 | 112 | 48 | 1.7 |
UW-35 | ● | ● | 1 1/4" | 12 | 35mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 125 | 113 | 48 | 2.32 |
UW-40 | ● | ● | 1 1/2" | 28 | 40mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 125 | 118 | 48 | 2.53 |
UW-50 | ● | ● | 2" | 48 | 50mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 167 | 125 | 48 | 4.32 |
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
1. AC voltage tolerance:士10%; DC voltage tolerance:土1%
2. It should be installed horizontaly; vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature; solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst
After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
