Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve

Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve

  • Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve
  • Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve
  • Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve
  • Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve
  • Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve
Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve
Product Details:
Place of Origin: China
Certification: CE
Model Number: HV-04
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: HV-04 Body Material: Aluminum Alloy
Name: Hand Valve
High Light:

foot pedal valve

,

pneumatic mechanical valve

HV 3 Position 4 Way Pneumatic Hand Rotary Valve Hand Lever Valve HV-02 HV-03 HV-04



Ordering code

HV - 04
Hand valve

Port size

02: 1/4"

03: 3/8"

04: 1/2"



Specification



Model HV-02 HV-03 HV-04
Fluid Air (filtered by 40um filter element)
Action Direct acting type
Port size 1/4" 3/8" 1/2"
Operating Pressure 0~8.0kgf/cm2
Fluid temperature 0~60℃
Lubrication Not required
Body material Aluminum alloy

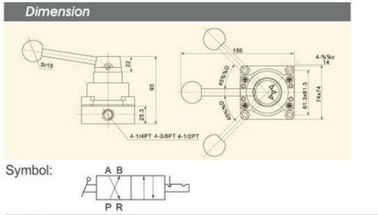

Dimension

Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve

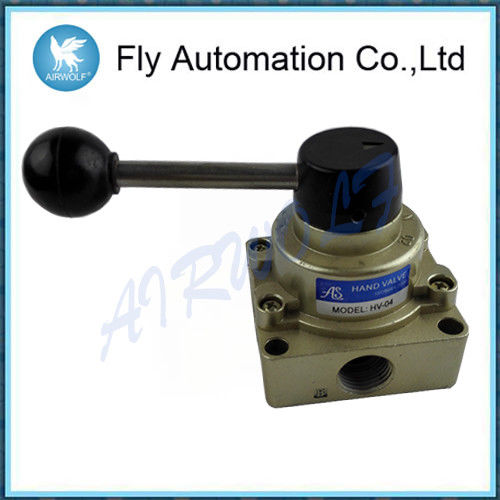

Product show

Manual Pneumatic hand valve HV-02 HV-03 HV-04 HV 3 Position 4 Way Pneumatic Hand Rotary Valve



Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections



Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.



After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
